4. Part Replacement
4.10 Chassis Replacement
User Guide

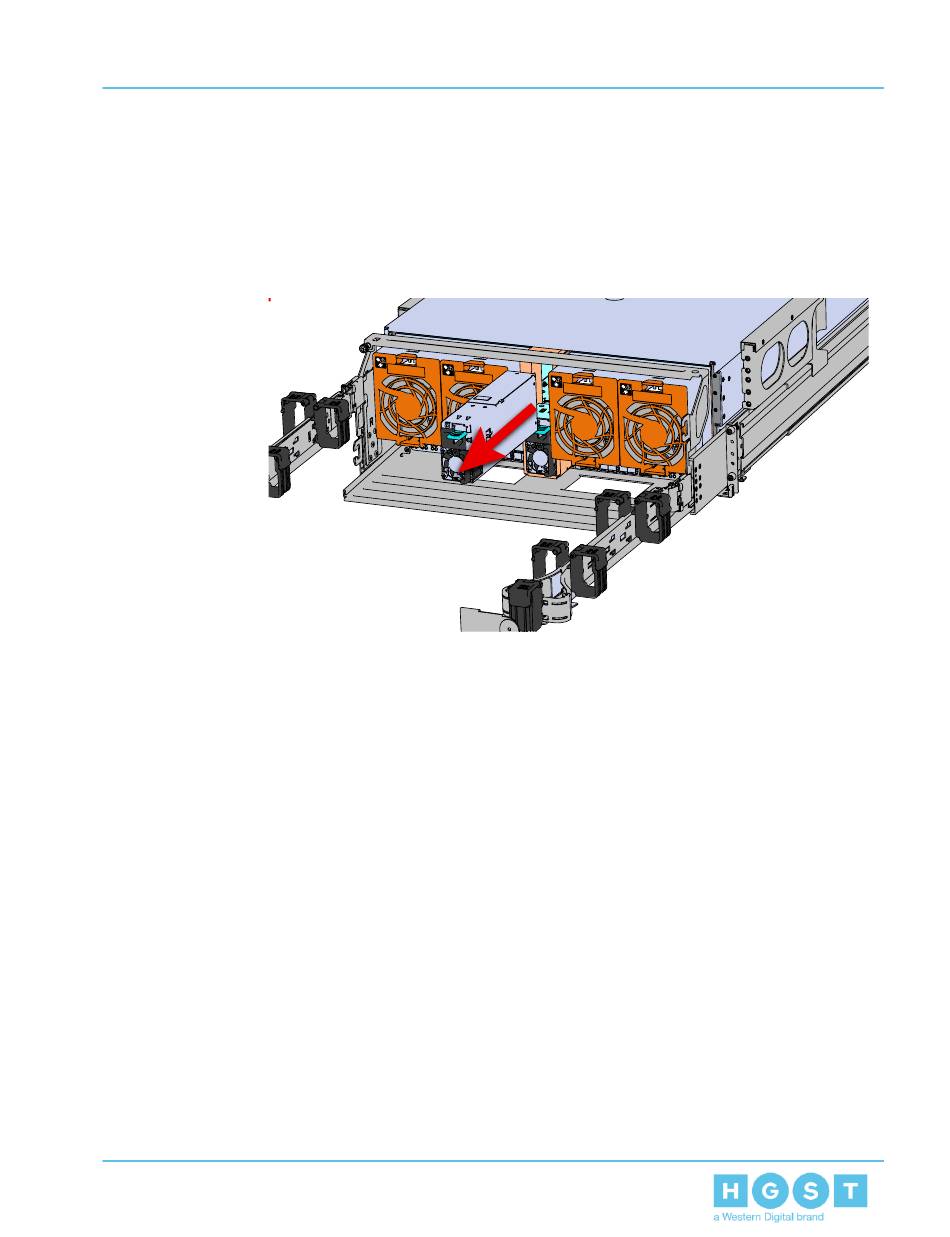

Figure 139: Uninstalling PSU
b. Pull the PSU straight out with even pressure.
10. To unlatch the rear fan from the fan housing, use one hand to press the clip at the top and
bottom of the fan and pull to free it from the chassis and remove it.
157
