Warning: The handles on the front of the chassis are not intended to be used to support the
weight of the Ultrastar Data102. Lifting the unit by the chassis handles or trying to support
the unit on the handles can cause them to fail. This can cause serious damage to the unit or
serious bodily harm to those handling the unit. Always team lift the chassis by gripping the
underside of the unit, and never try to lift a chassis that is filled with drives.

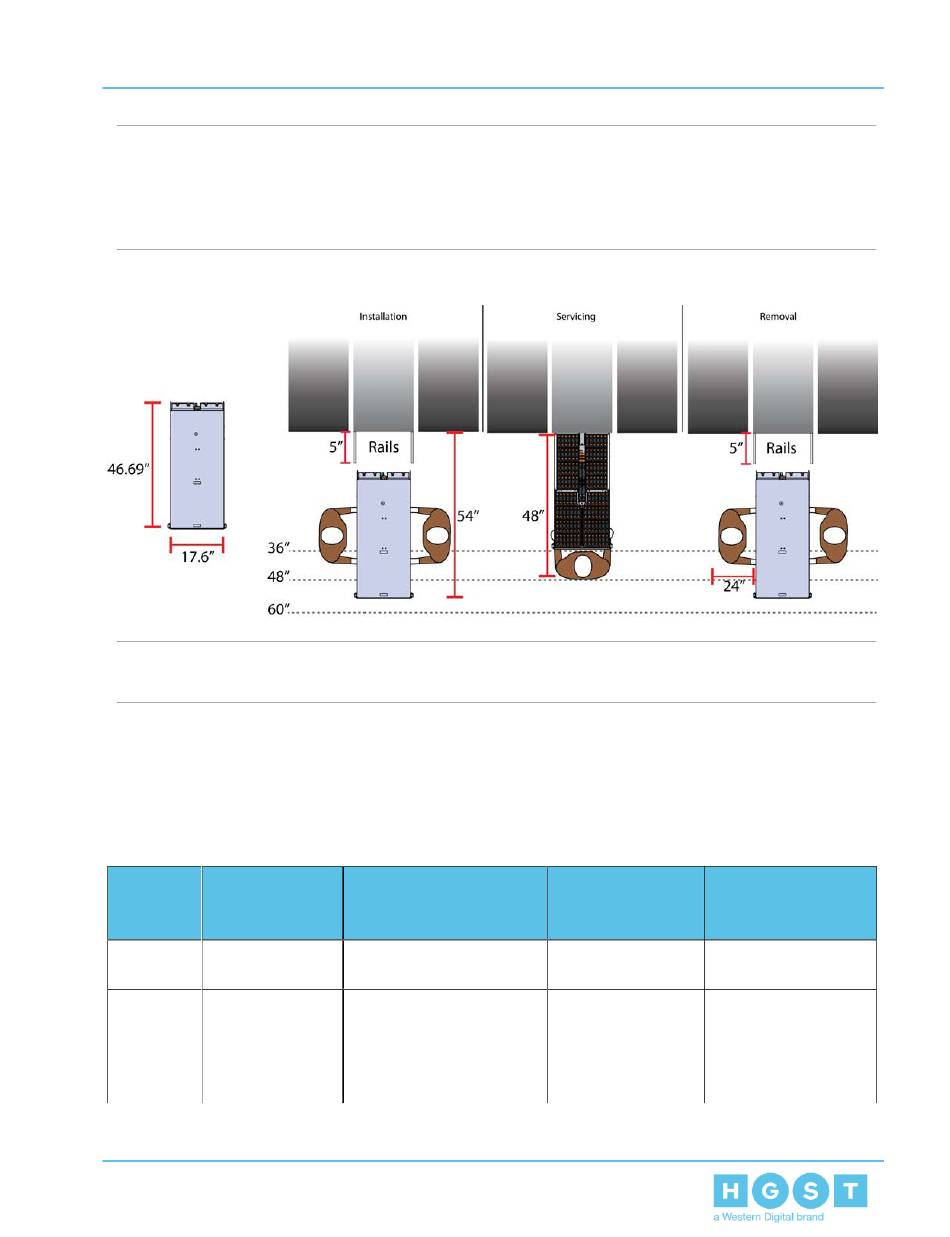

Figure 230: Installation, Servicing, and Removal
Attention: Do not install or remove the enclosure while it is populated with drives. The fully
populated enclosure exceeds the amount of weight that a team of two should lift.
10.3.1 Compatible Rack Hardware Configuration
The following table(s) list the approved rack hardware configurations for the Ultrastar Data102:
Table 57: Compatible Hardware Configuration 1
Parameter Rack
Vendor CRENLO/
EMCOR
Part
AS-160099-03
Number
(Drawing
Number
EMCOR 526121
Rev 5)
PDU (Vertical)
Server Technology
412-0761-11_STV-4501
412-0761-20_STV-4502
412-0761-23_STV-4503
12
10. Site and System Operation Requirements
10.3 Ultrastar Data102 Rack Requirements
PDU Mounting
Mounting Bracket
Bracket
Server Technology Various
KIT-MBVPT-1B
4 x M6 x 16 Hex
(one kit per PDU)
Cap Screws
8 x M6 Fender
Washers
Additional
Hardware
