4.8 CMA Lite Replacement
User Guide

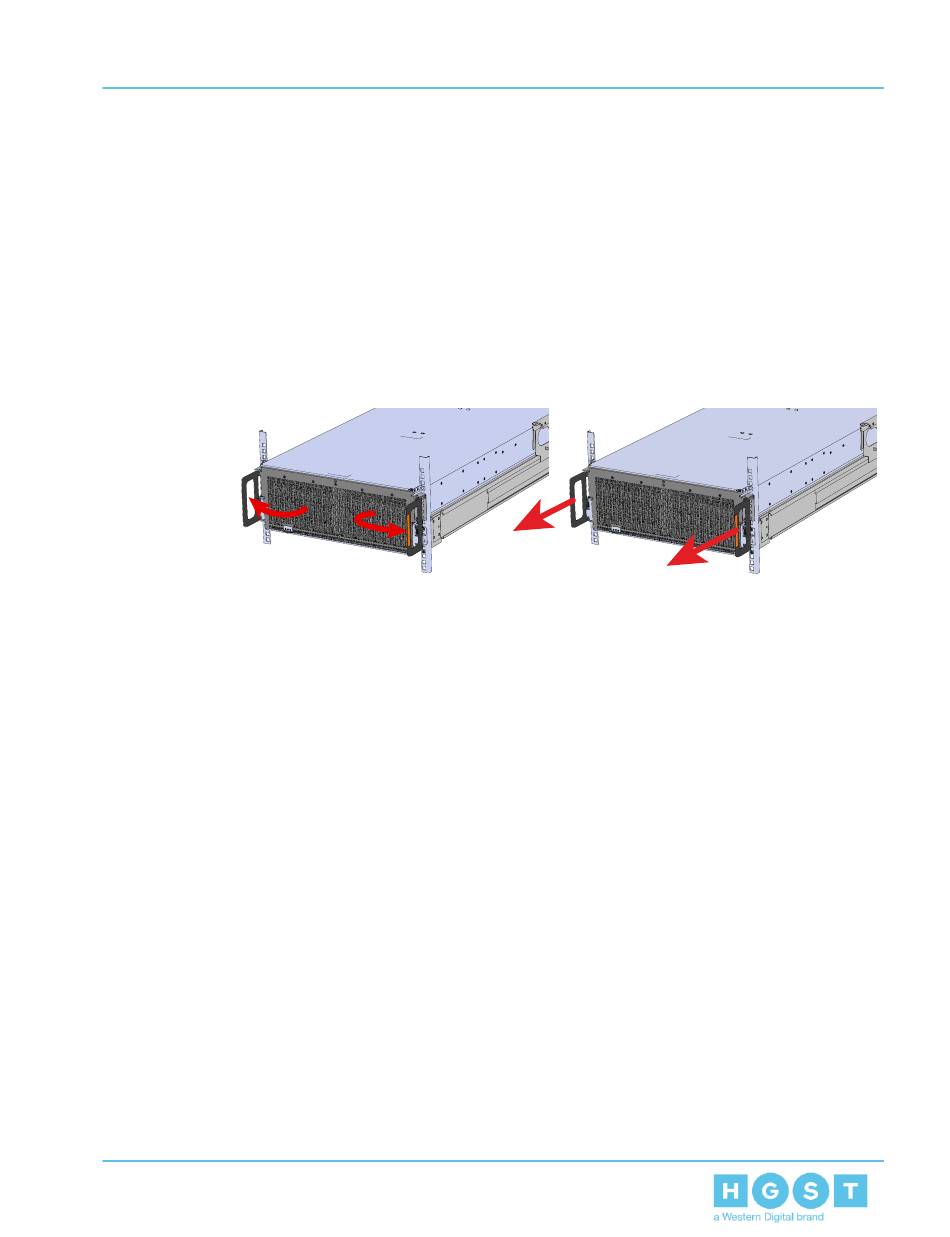

Figure 85: Chassis Handle Operation
14. Perform this same action two more times without the drives loaded to make sure the rail kits
are installed properly.
15. Install the Drive Assembly.
a. Ensure that the enclosure has been pulled out of the rack until the rail latches engage.
b. Find the LED pointer on the top of the drive carrier. This pointer should point toward the
front of the unit as shown in the following image.
