User Guide
Required Tools
• Level
1. Place both CMAs into service position.
a. Unlatch the upper CMA at the elbow connector by pressing the blue release button to
unlatch the connector from the rail.

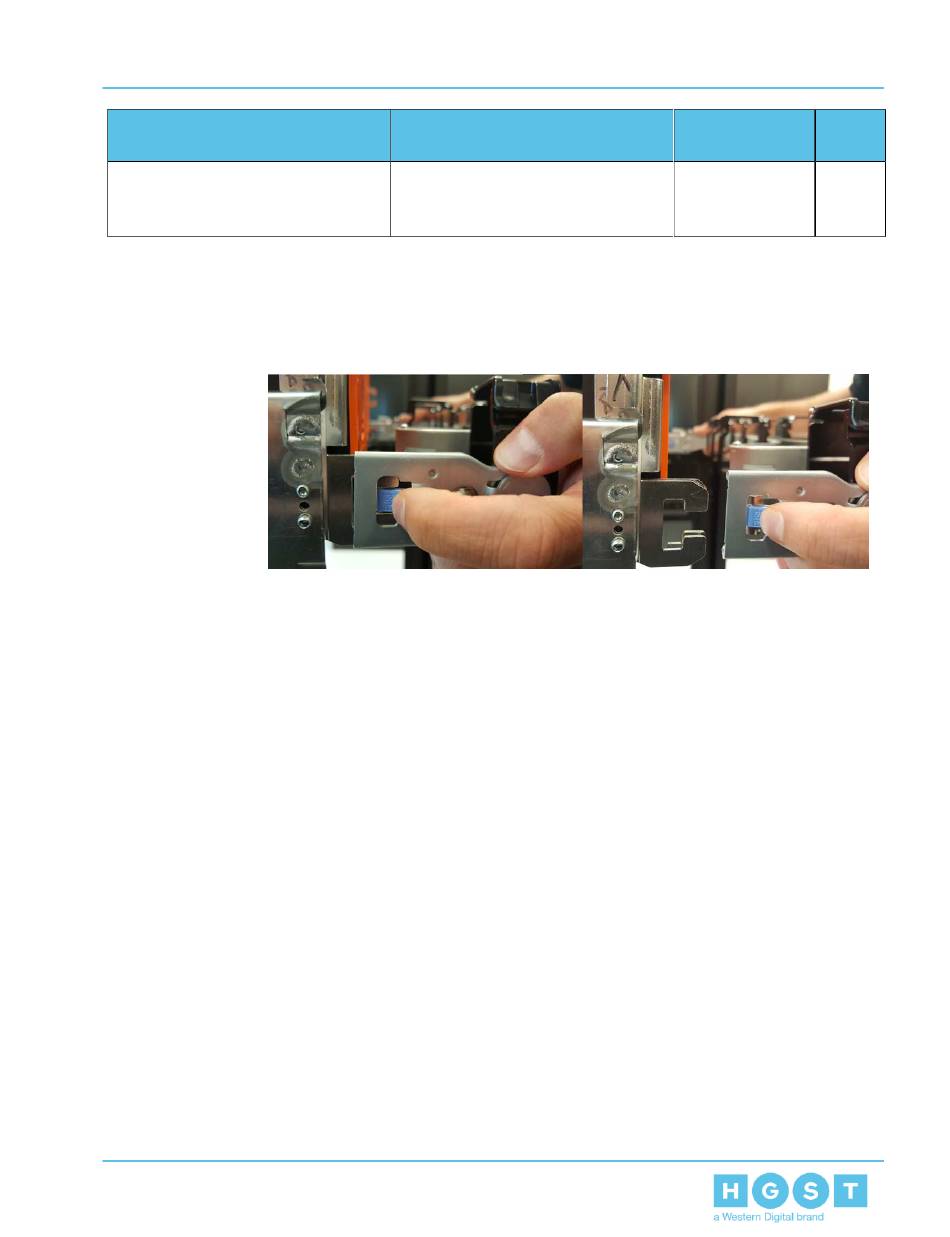

Figure 90: Unlatching a CMA Connector
b. Swing the CMA away from the enclosure.
c. Do the same for the lower CMA arm as what was done for the upper.
d. Both arms should be extended away from the enclosure as shown in the following
example.
Required Parts
• Optional (if using CMA
Tray): M3 x 8mm T10 Torx
screws
112
4. Part Replacement
4.9 Rails Replacement
# of People Time
Required Required
