HGST Ultrastar Data102 User Manual page 171

User Guide

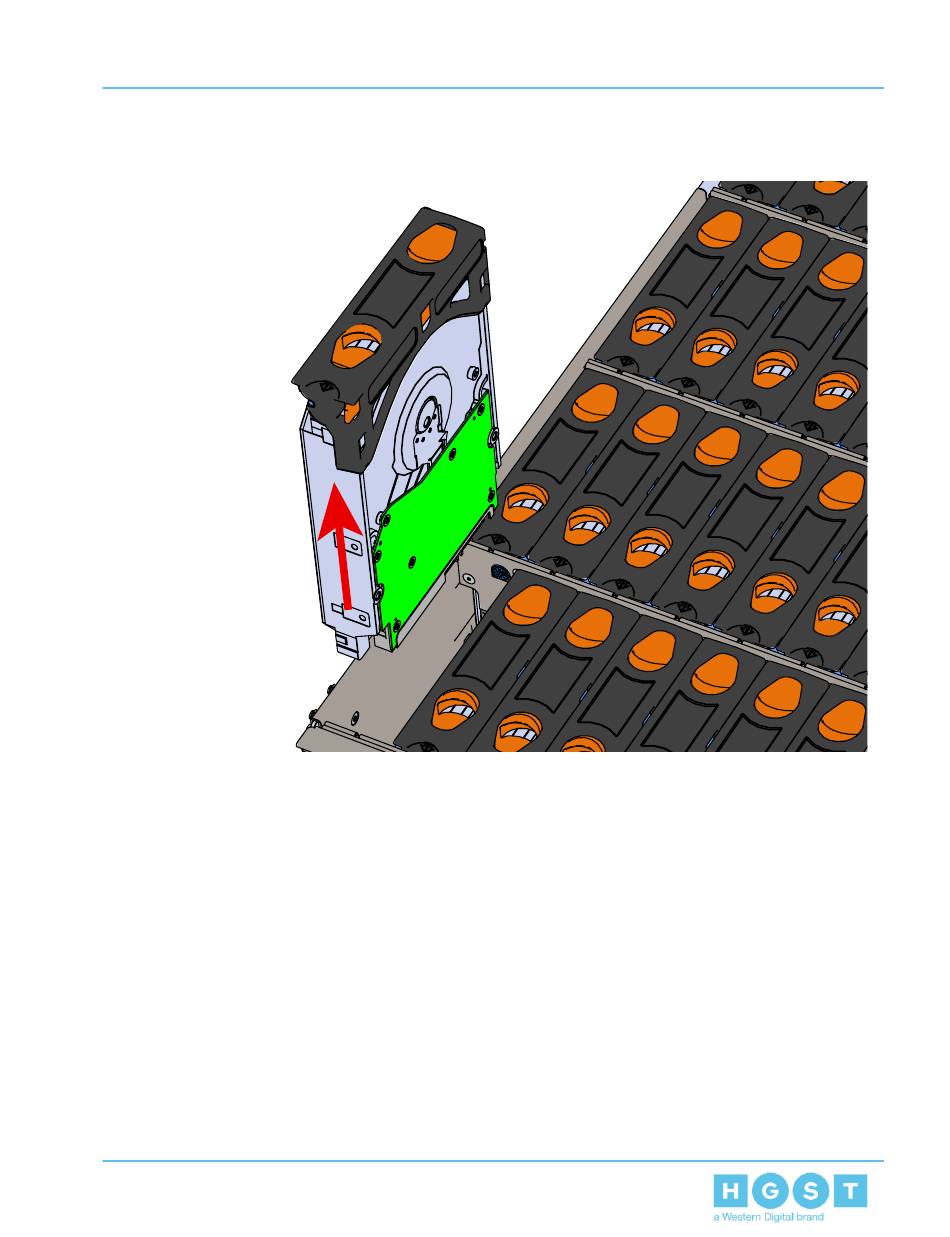

Figure 143: Removing Drive Assembly
14. Follow the previous step for each drive in the enclosure. Attach a label or mark the drives
with the drive slot they were removed from in order to add them to the same slot in the future.
Store the drives in an ESD safe location until the drives are ready to be installed back into an
enclosure.
15. Uninstall the IOM(s).
a. Locate the latch release on the IOM and press it in the direction shown in the following
image.
161
4. Part Replacement
4.10 Chassis Replacement
