4. Part Replacement
4.11 Special Considerations for Cable Routing
User Guide
The distance from the end of the connector at the port to the first basket on the CMA should be 20" –
21" long. This will give the cables enough slack at this end to prevent stress on the port and binding
during operation cycles.

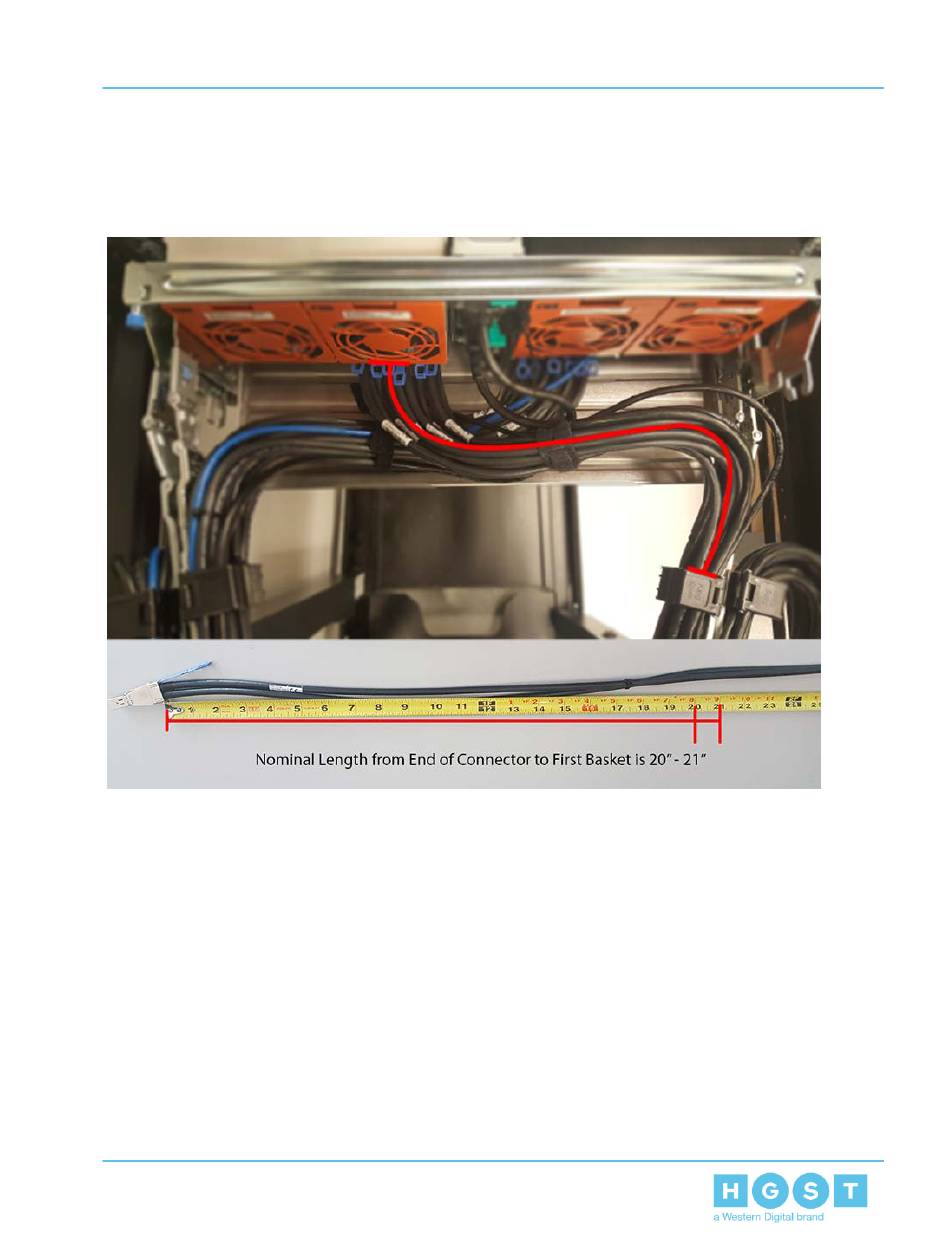

Figure 186: Nominal Cable Length at Connectors
The cables at the port side of the CMA should crisscross in front of the IOMs. To accomplish this, the
cables connected to the ports for IOM B (right hand side when facing the rear) should be connected
to the upper CMA, and the cables connected to the ports for IOM A (left hand side when facing the
rear) should be connected to the lower CMA.
