4. Part Replacement
4.9 Rails Replacement
User Guide

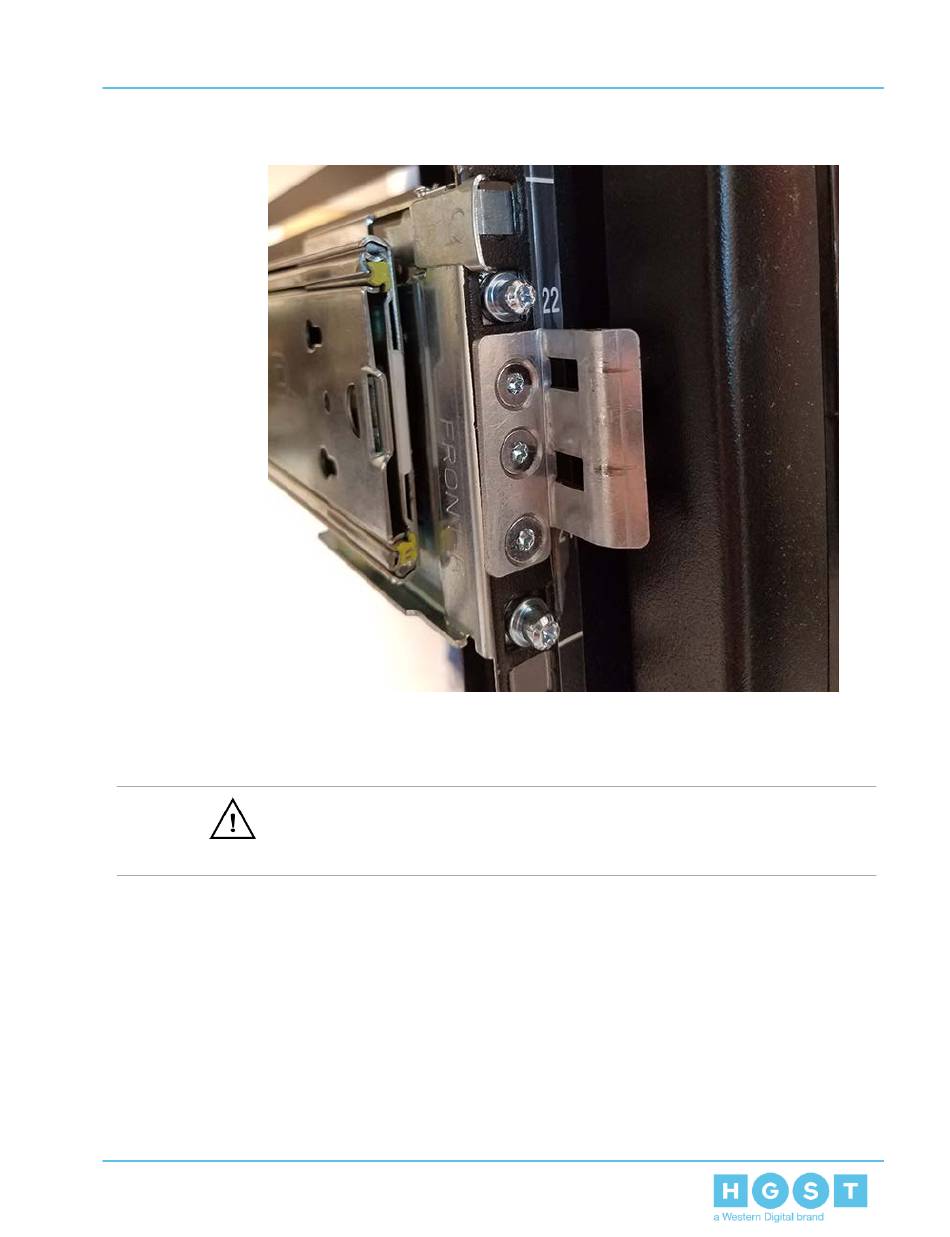

Figure 115: Rack Latch Bracket Installed
b. Use 6 of the included M5 x 12mm screws and the T15 Torx screwdriver to install each
bracket, 3 screws per bracket.
Caution:
Always install the top cover onto the enclosure before installing the chassis
into a rack. Not having the top cover installed may damage the alignment brackets.
24. Install the chassis into the rails.
