User Guide

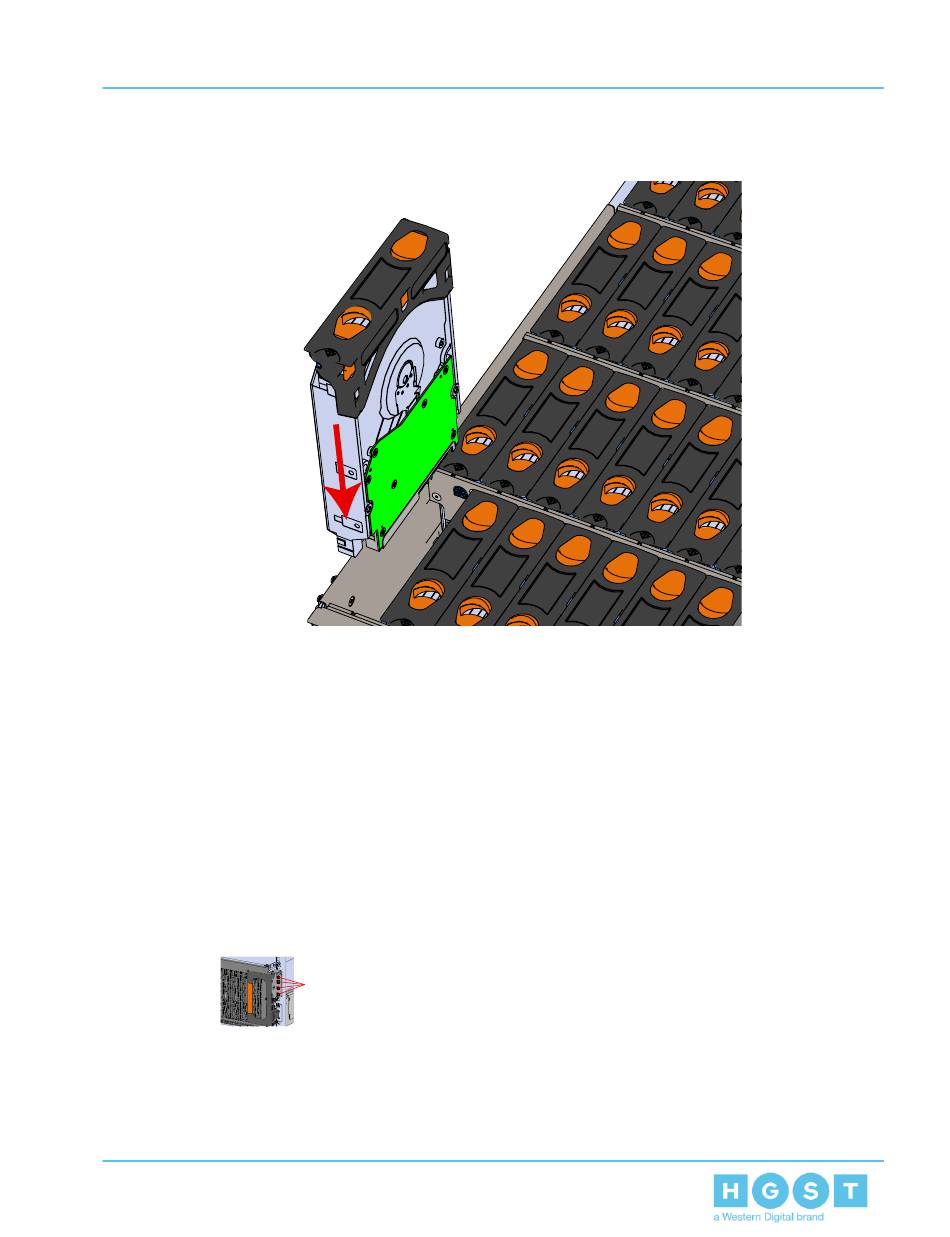

Figure 167: Installing a Drive Assembly
d. Pinch the latch release and carefully press downward to seat the Drive Assembly the
rest of the way.
38. Install each drive in the place it was removed from by following the labels or marks that were
added earlier.
39. If the chassis is being installed into a rack that will be shipped fully assembled, you must
install eight (four per side) of the included M5 x 12mm T15 Flat Head Torx screws into the two
brackets at the front of the chassis in the following locations. These screws should be tightened
to 3.38-3.61 Nm / 30-32 in-lbf using a Long T15 Torx Screwdriver. If this chassis will not be
installed into a rack for shipping purposes, skip this step and move on to the next one.
Figure 168: Shipping Bracket Screw Locations
40. Install the PSU.
Screw Location
184
4. Part Replacement
4.10 Chassis Replacement
