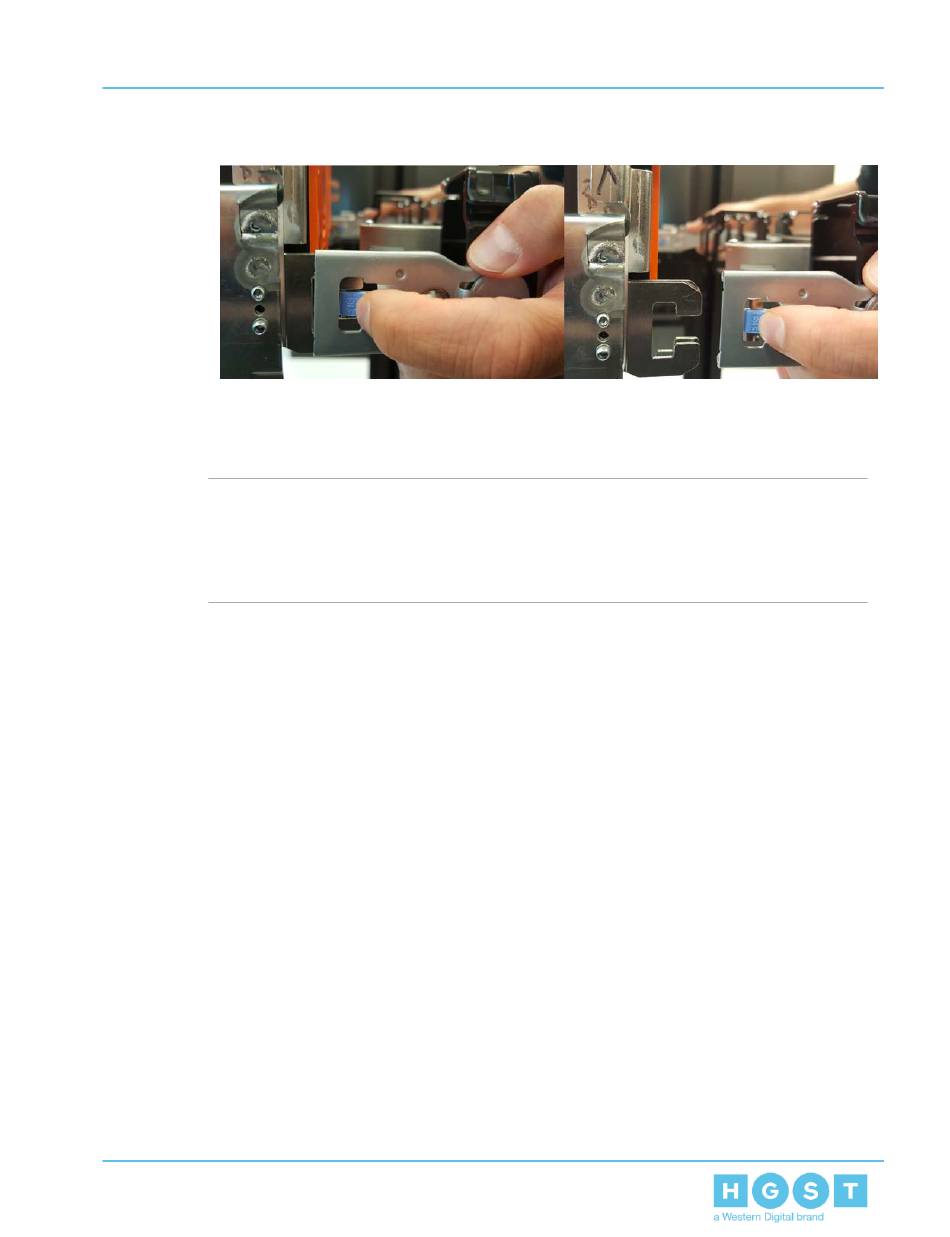

Figure 65: Unlatching a CMA Connector
7. Follow the previous step for the second CMA.
8. Install the lower CMA.
a. Note: The CMA has two arms that are labeled upper and a lower. These arms are
connected to the rails by three connectors. The first step in installing one of the
arms for the CMA is to first determine what orientation the arm needs to be in. The
lower arm should have the elbow on the right side, the upper arm should have the
elbow on the left side.
Orient the CMA so that the elbow is on the left hand side.
b. Attach all three of the connectors to the brackets on the rails. There should be one at
the elbow side and two at the other end.
