User Guide

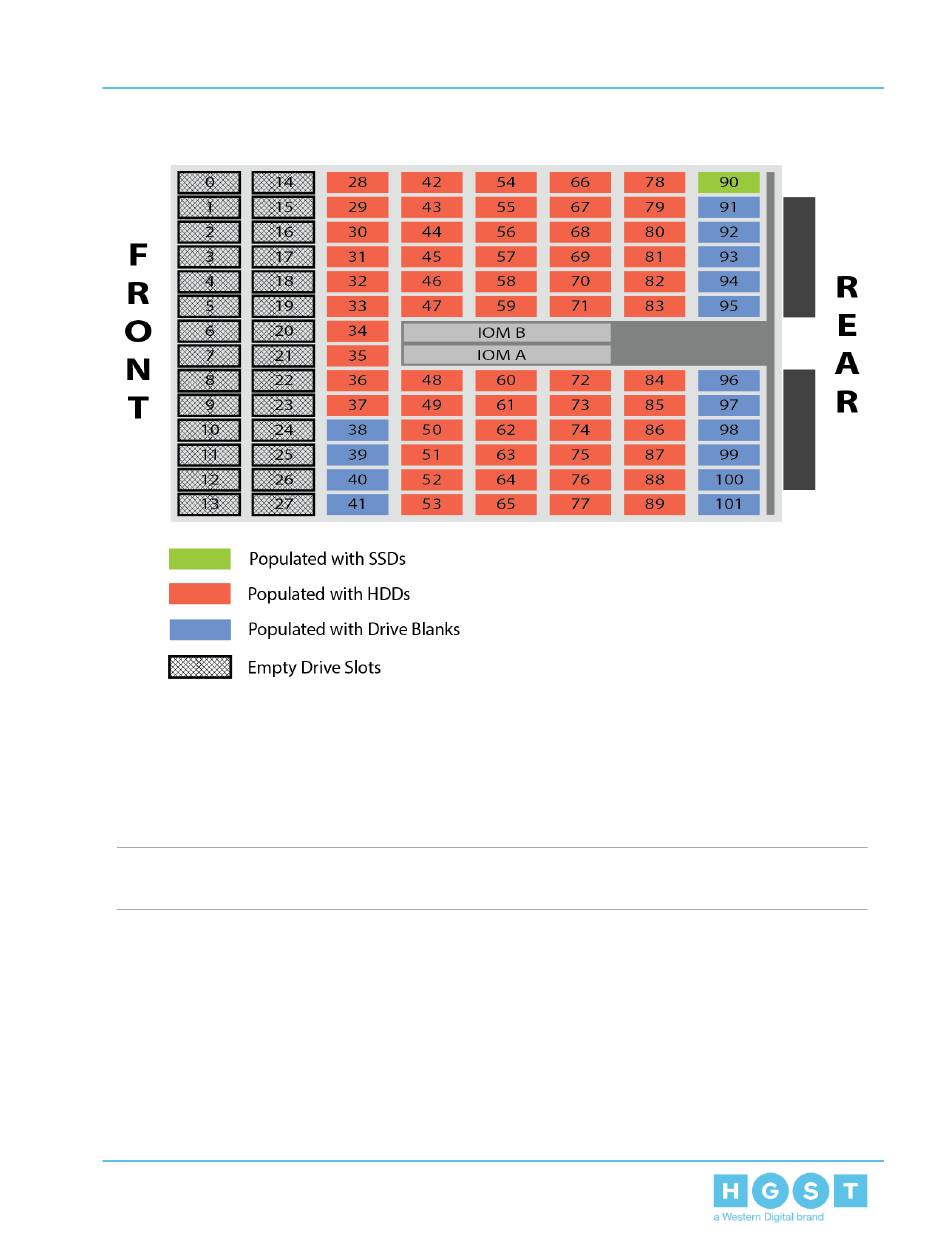

Figure 204: Minimum HDD and Minimum SSD Partial Population
Minimum HDD and Maximum SSD Partial Population:
The enclosure supports a minimum of 60 HDDs and one SSD for a partially populated enclosure.
The enclosure can support a maximum of up to 24 total SSDs in this configuration. The enclosure
does not support a mix of SAS and SATA drives. The image below details the required configuration
for minimum HDD and maximum SSD configuration.
Note: When installing SSDs for this configuration, the preinstalled HDDs will have to be
moved two entire rows to the next vacant pair of rows near the front of the enclosure.
5.4 Partially Populated Enclosures
253
5. System Management
