4. Part Replacement
4.8 CMA Lite Replacement
User Guide

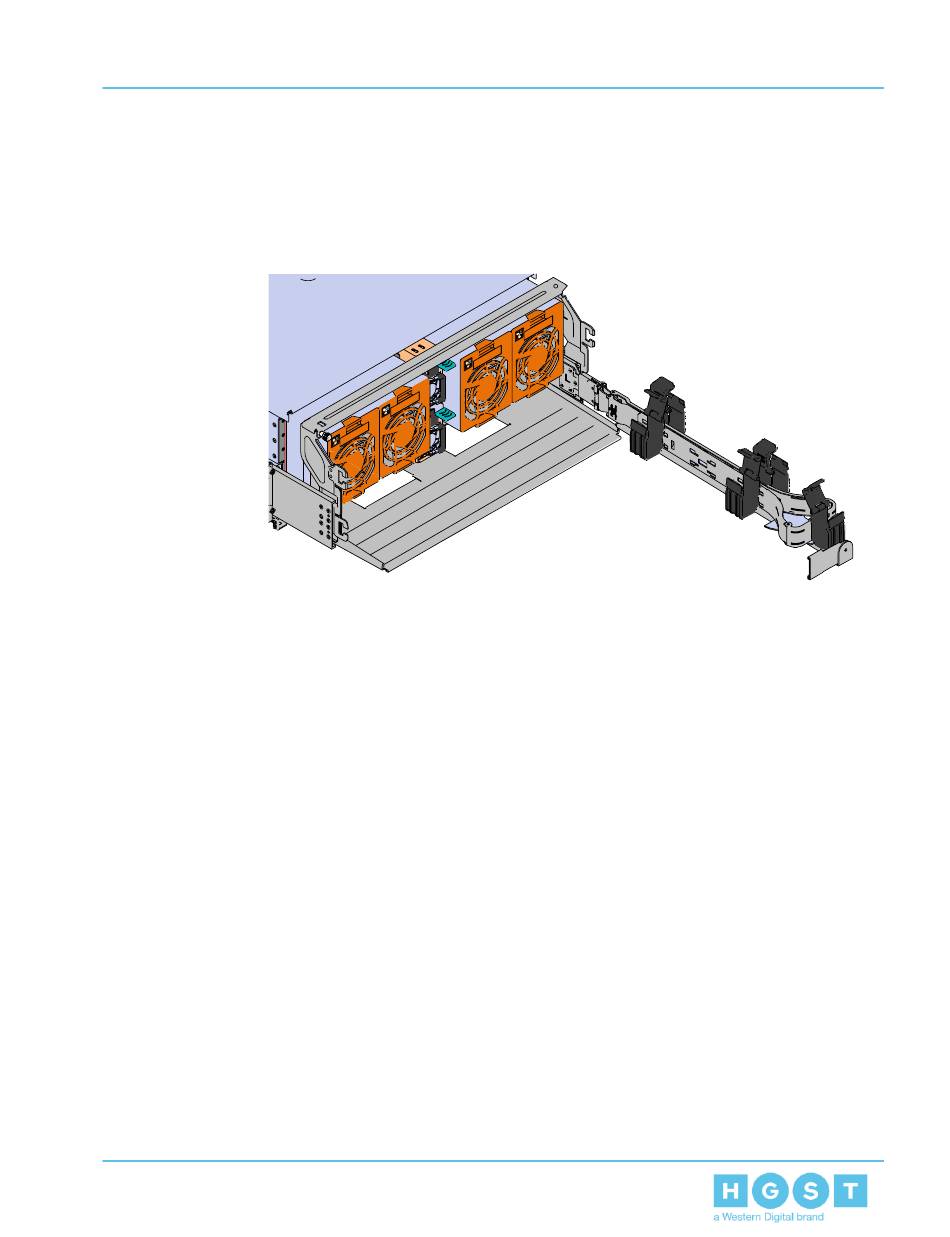

Figure 78: Open Baskets
b. Remove one cable from the CMA at a time making sure not to put too much strain on
the arm.
6. Unlatch all of the connectors that attach the CMA to the enclosure and the rail by locating
the latch release button and pressing it from either side of the latch. There are three total
connections that need to be removed, one at the elbow and two at the opposite end.
