4. Part Replacement

4.5 IOM Fan Replacement

User Guide

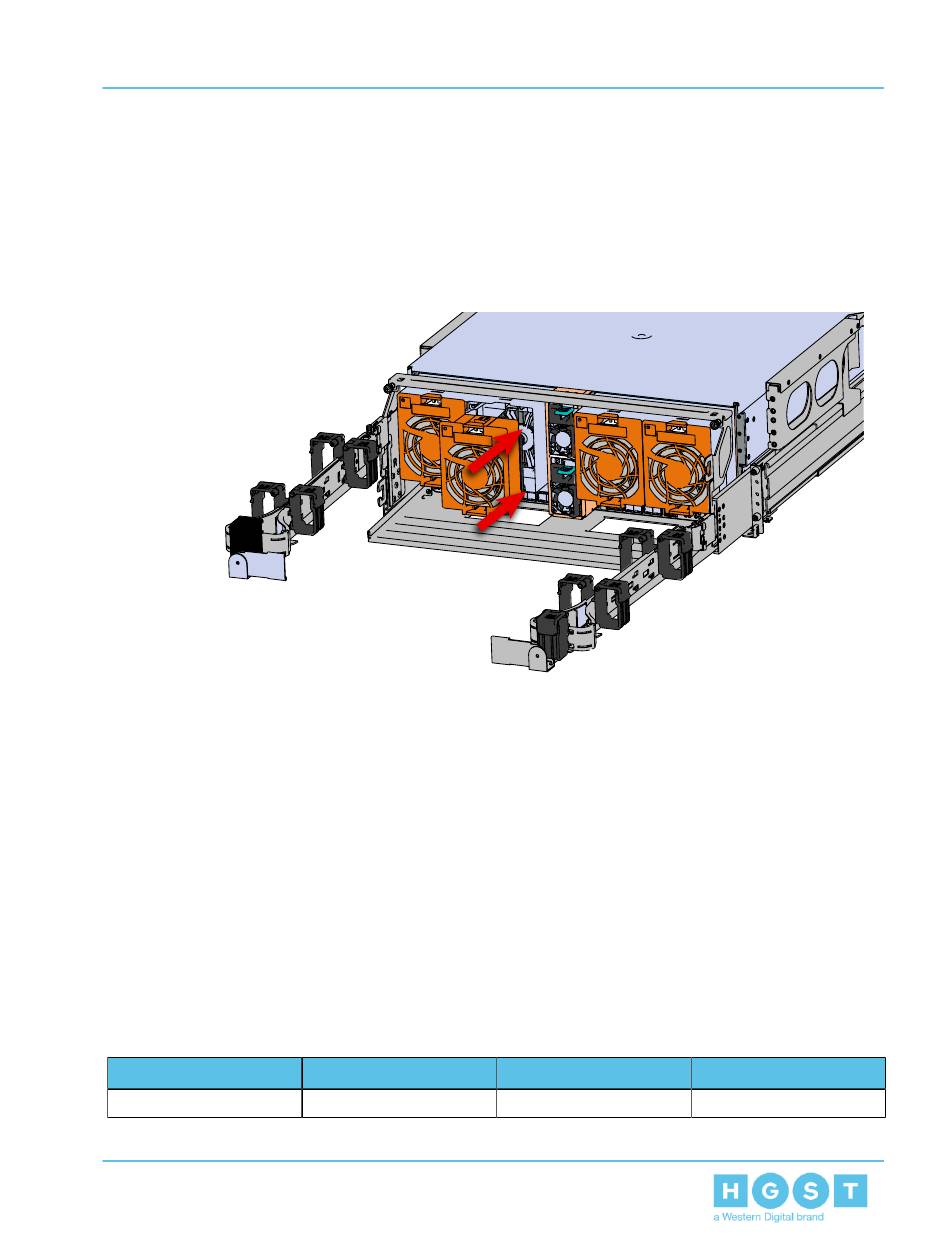

Figure 51: Installing the Rear Fan
4. Make sure the CMA is in operational position by folding the arm in toward the enclosure and
attaching the elbow end of the CMA to the connector that is attached to the rail. Verify that all of
the cabling is in functional order and does not bind or catch.
4.5 IOM Fan Replacement
Table 32: Replacement Procedure Info
Required Tools # of People Required Time Required Replacement Window
None 1 60s 5 Minutes
