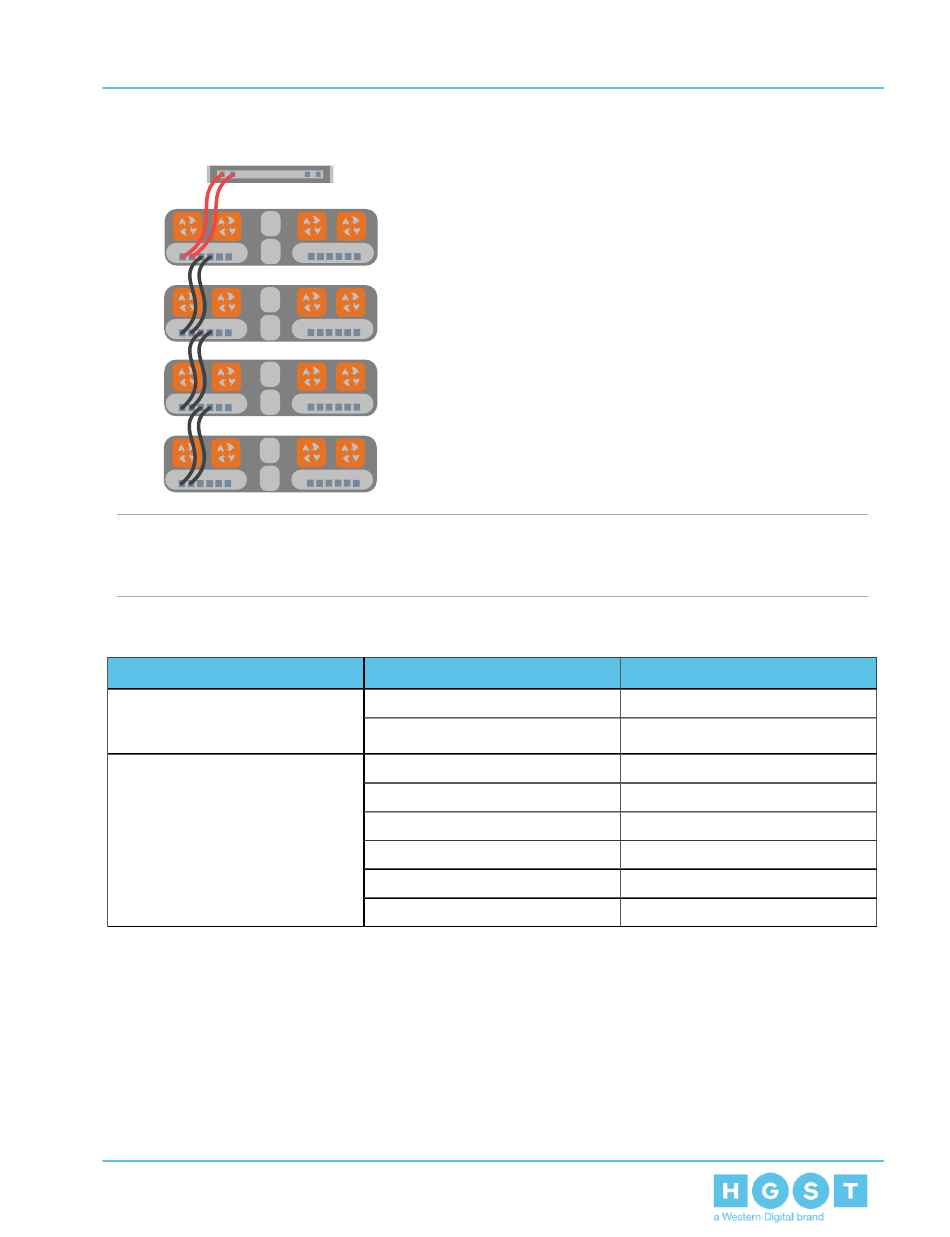

Figure 215: SATA Enclosure Configuration One Host with a Single HBA
Note: The diagram displays red SAS cables to indicate passive connections between the
host and the enclosure. The black SAS cables indicate active connections between each
enclosure.
Table 46: Four SATA Enclosures: One Host with a Single HBA
Hardware
Host Connections
Enclosure Connections
5.5.3 Two Host Cable Configurations
This section provides the information required to connect two or more enclosures to two hosts via
SAS connections. Choose the cable map that fits the preferred daisy chaining requirement.
Source Device
Host1: P1
Host1: P2
Enclosure1: IOMA, A3
Enclosure1: IOMA, A4
Enclosure2: IOMA, A3
Enclosure2: IOMA, A4
Enclosure3: IOMA, A3
Enclosure3: IOMA, A4
267
5. System Management
5.5 Daisy Chaining
Destination Device
Enclosure1: IOMA, A1
Enclosure1: IOMA, A2
Enclosure2: IOMA, A1
Enclosure2: IOMA, A2
Enclosure3: IOMA, A1
Enclosure3: IOMA, A2
Enclosure4: IOMA, A1
Enclosure4: IOMA, A2
