1 Overview
This section provides a high level overview of the features of the Ultrastar Data102.
1.1 Ultrastar® Data102 Description

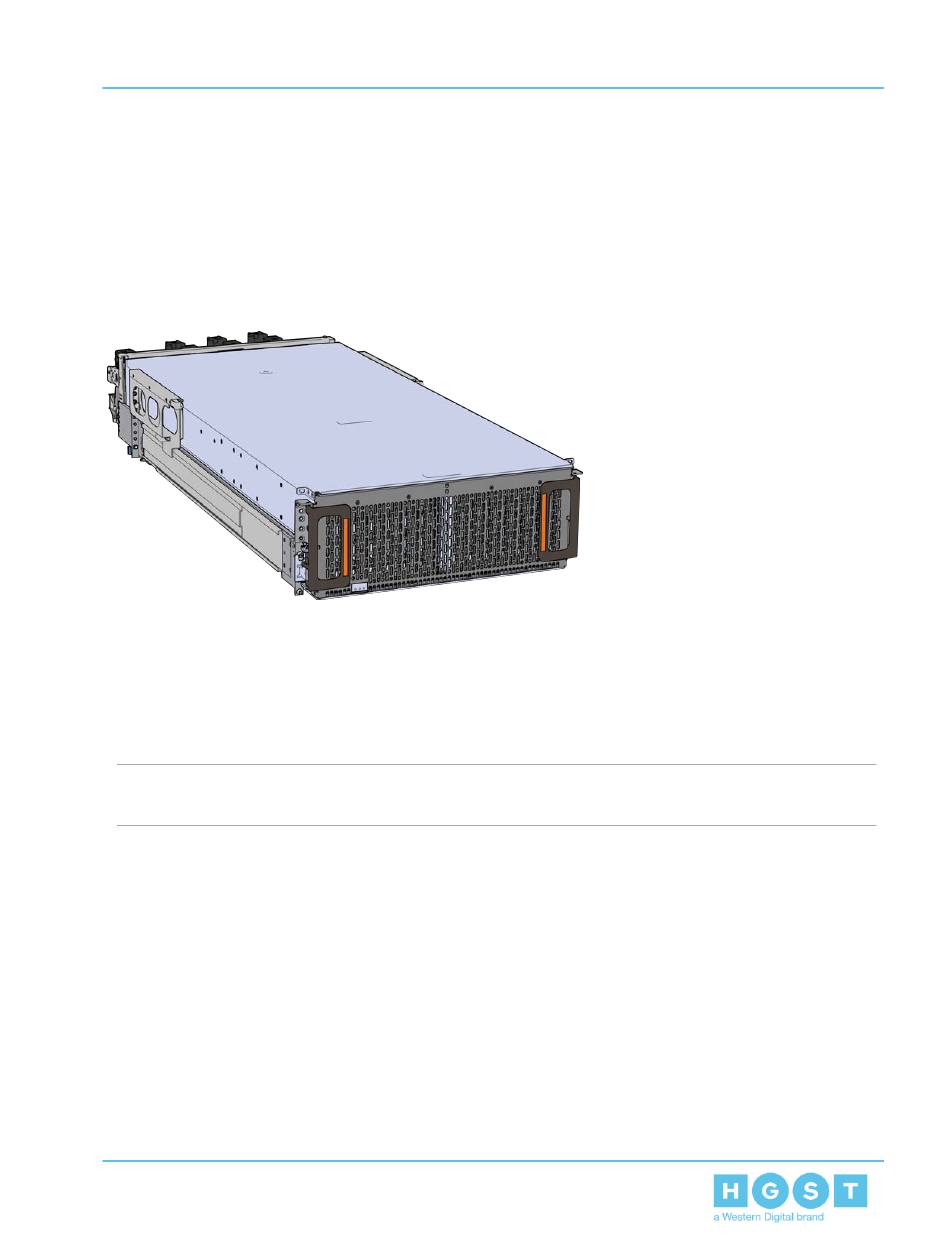

Figure 1: Ultrastar Data102
The Ultrastar® Data102 is a 4U form factor, high availability, high density, rack-mounted storage
enclosure that is capable of hosting up to 102 SAS or SATA drives. The maximum data storage
capacity of the Ultrastar Data102 is 1.428 PB using 14TB HGST Ultrastar® HC530 drives . (For a
full list of compatible drives and total storage capacities, see the
17).) The enclosure runs on an input voltage of 200 - 240 VAC and consumes ~1300W of power
under typical conditions. It requires a maximum of ~1600W at full load.
Note: Max and typical power consumption values represent the output power to the system.
Input power will vary depending on the PSU efficiency and load sharing between PSUs
It is designed to fit within a 4U rack space and requires 1181-1197 mm (46.5in. - 47.13in.) of usable
rack space, frame to frame. A fully loaded system will add 118.8 kg / 262 lbs. of static load when fully
loaded with drives.
• 4U Storage Enclosure
• Supports up to 102 Drives
• Can support 3.5" drives and 2.5" SSD drives (2.5" requires an adapter) in the 102 available drive
bays.
• Up to 12W per drive slot for the 102 data storage drives (Cannot exceed 85A on the 5V rail)
• House and control four (4) N+1 redundant 80mm rear fans
• House and control a dual rotor 40mm internal IOM Fan
1.1 Ultrastar® Data102 Description
