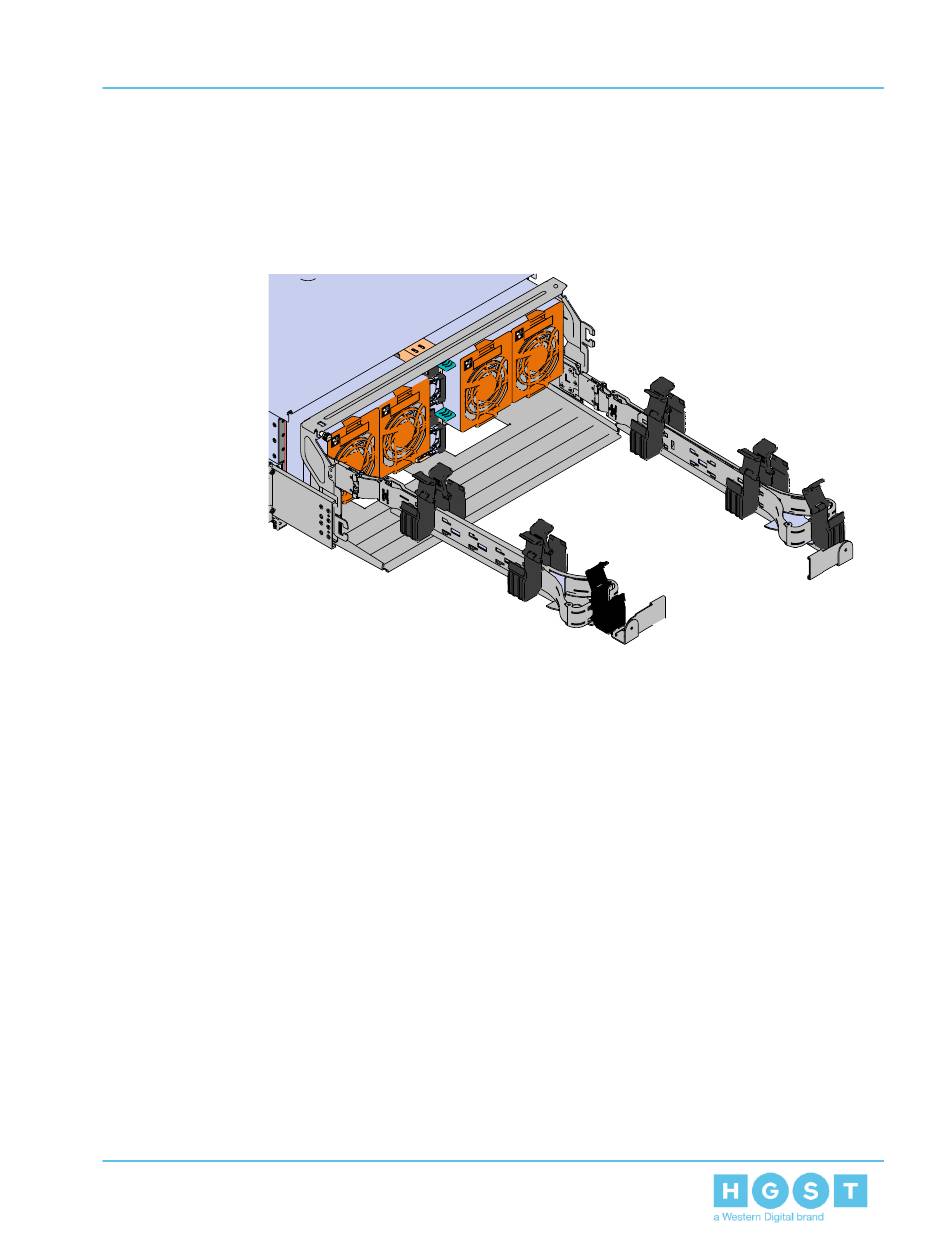

Figure 71: Open Baskets
a. Connect the Ethernet cable to the Ethernet port on the right hand side of the Ultrastar
Data102 and route the cable through each of the baskets on the CMA.
b. Connect the SAS cables and route them through the baskets one at a time. Make sure
to follow the labels to make sure they are connected to the proper port.
c. Connect the power cable to the upper PSU and route it through each basket. The
following image shows the appropriate cable "criss-cross" pattern they should be
installed in.
4.7 CMA Standard Replacement
94
4. Part Replacement
