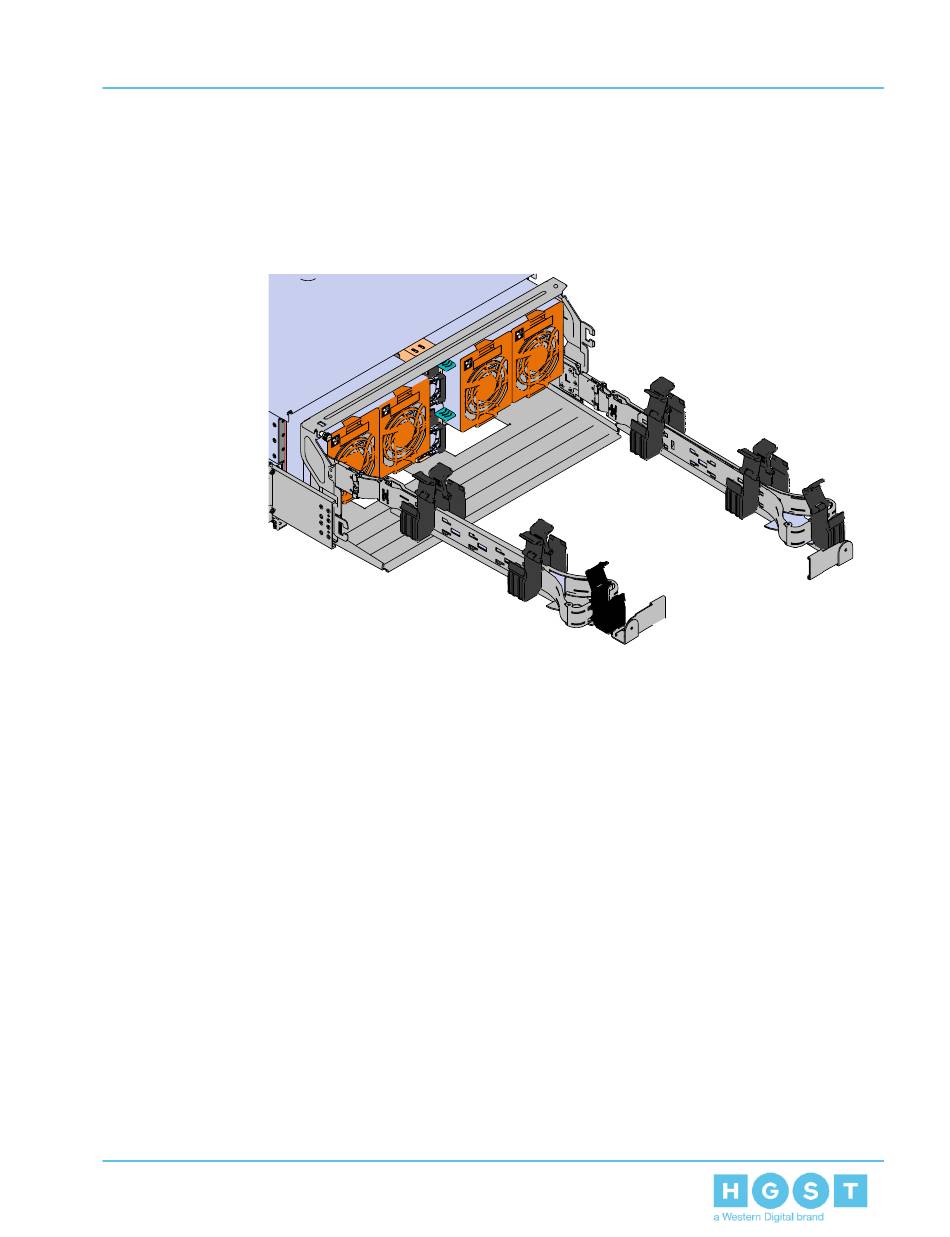

Figure 125: Open Baskets
d. Connect the Ethernet cable to the Ethernet port on the right hand side of the Ultrastar
Data102 and route the cable through each of the baskets on the CMA.
e. Connect all of the SAS cables that will be used and route them through the baskets one
at a time. Make sure to follow the labels to make sure they are connected to the proper
port.
f. Make sure the power cable is not connected to a PDU. Then connect the power
cable to the lower PSU and route it through each basket. If the power cable is already
connected to the PDU, the system will power up. This is not intended at this stage of
installation.
g. If the installation includes more than 10 total cables, follow the recommendations in
Special Considerations for Cable Routing
proceeding.
(page 201). Read this section before
