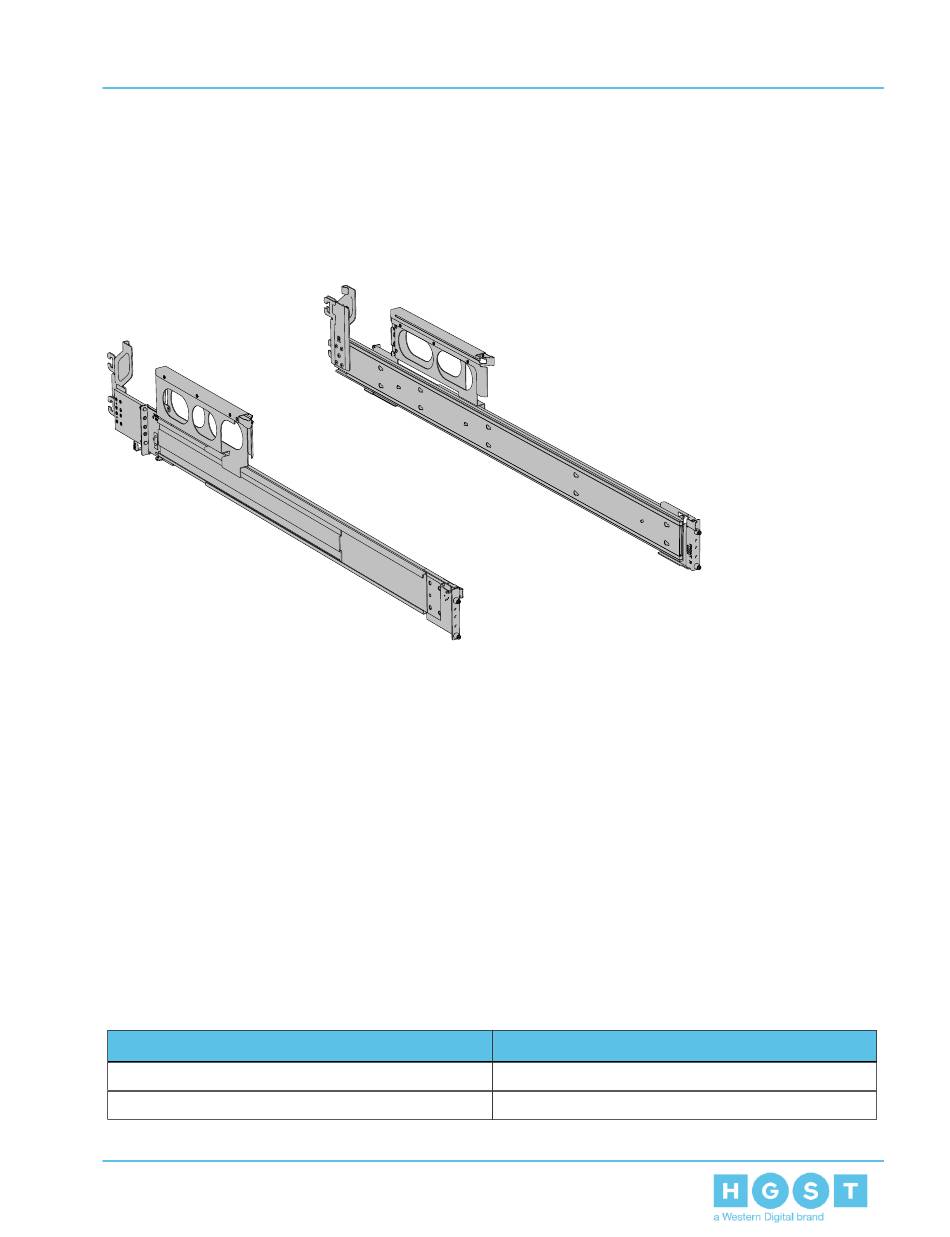

Figure 23: Overview Image
The Ultrastar Data102 is installed into a rack using a toolless-attach rail system. The rails are a two-
piece system with one rail that attaches directly to the chassis called the inner rail and the other
that attaches to the rack. The inner rail comes nested inside the outer rail and can be accessed by
sliding it out of the outer rail. The outer rails attach to the rack and receive the chassis to support it
inside the rack. The outer rails attach to vertical rack rails that should be set between 32 in.-36 in.
The toolless design means that an installer can attach these rails to a rack without any tools which
simplifies installation. Once they are attached, they can be secured with the included M5 screws and
washers.
3.6.1 Rails Specifications
Specification
Length
Part Number
1028.7 mm/40.5 in.
1EX0435
44
3. Component Overviews
3.6 Rails Description
Value
