4. Part Replacement
4.4 Rear Fan Replacement
User Guide
Figure 50: Uninstalling the Rear Fan

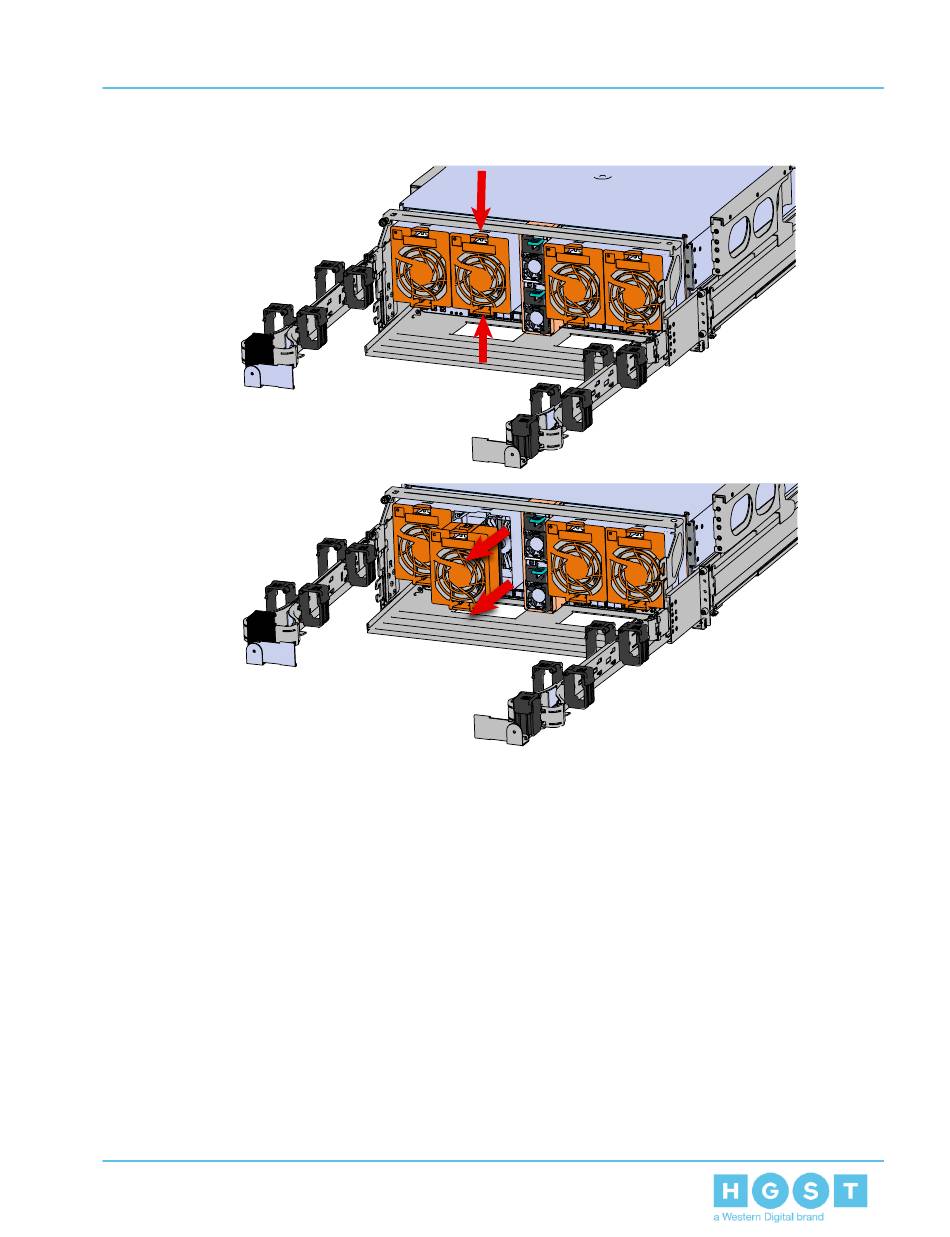

3. Install Rear Fan
a. Orient the rear fan as shown in the following image.
b. Insert the rear fan into the housing as shown in the following image.
73
