User Guide

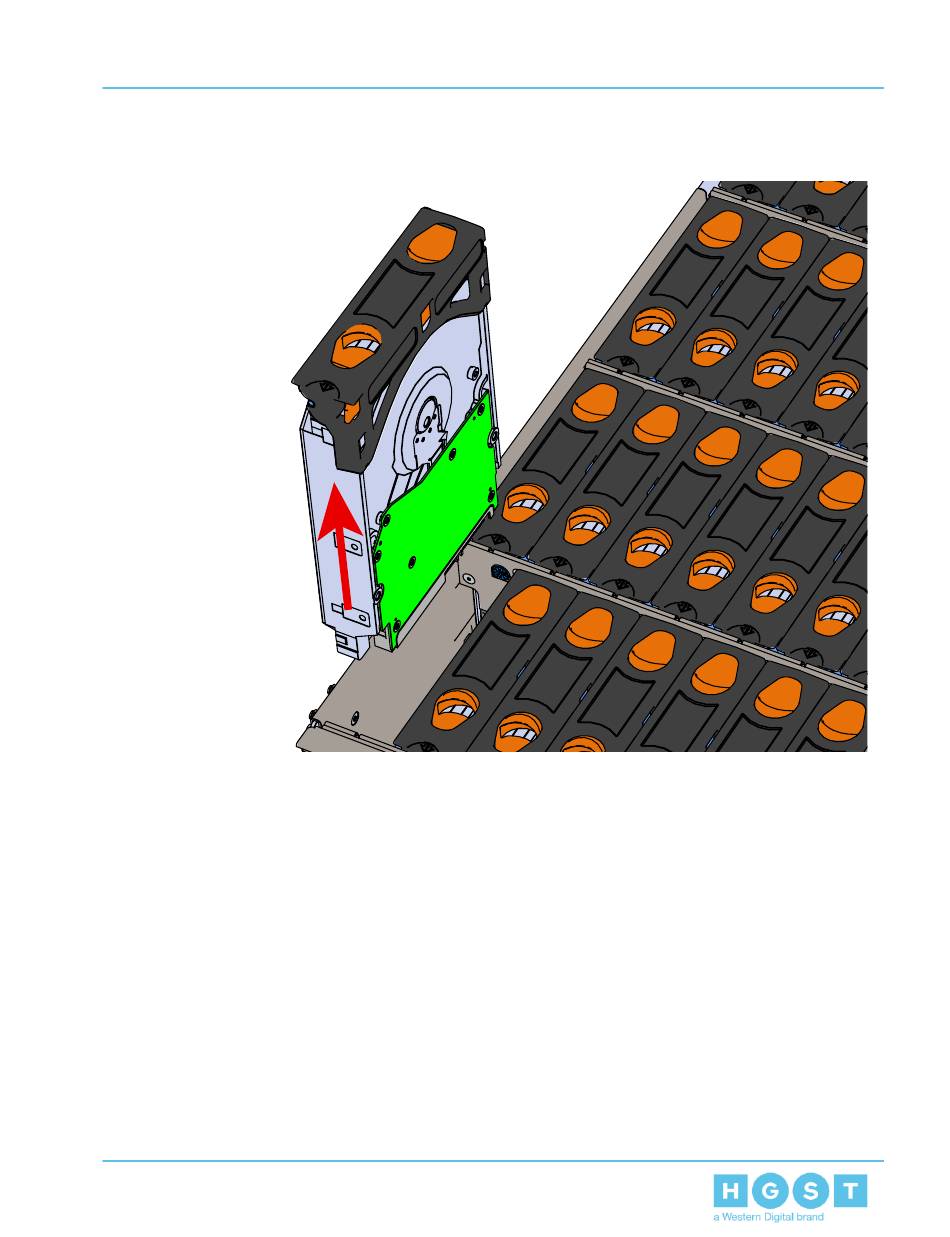

Figure 97: Removing Drive Assembly
10. Follow the previous step for each drive in the enclosure. Attach a label or mark the drives
with the drive slot they were removed from in order to add them to the same slot in the future.
Store the drives in an ESD safe location until the drives are ready to be installed back into an
enclosure.
11. Release the safety latch on the inner rails on each side of the chassis as shown in the following
image.
119
4. Part Replacement
4.9 Rails Replacement
