5. System Management
5.5 Daisy Chaining
User Guide

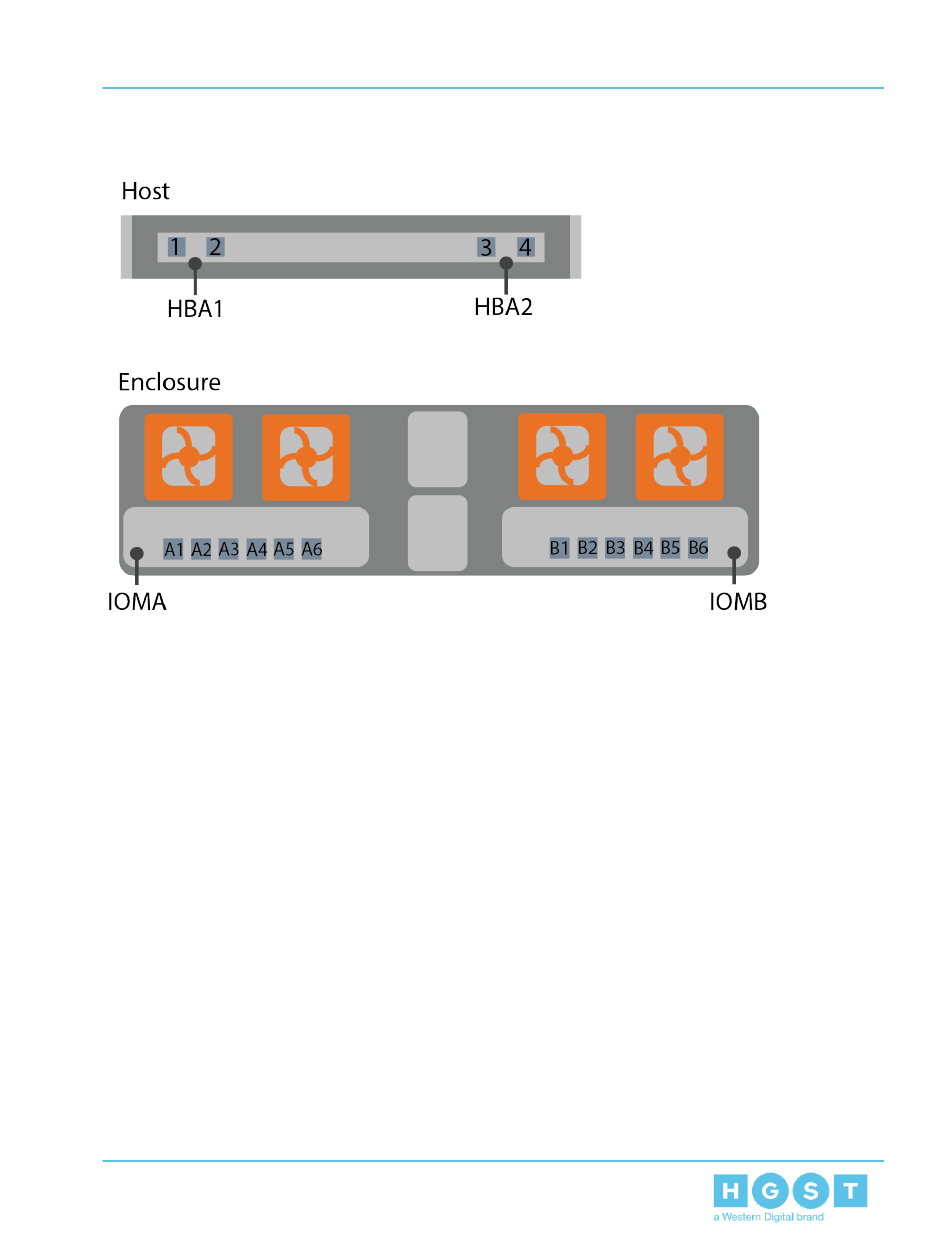

Figure 210: Daisy Chaining Key
One Host Configurations: The following diagram is an example of how the enclosures will be
connected via the IO SAS ports and what number each enclosure is. This information can be
utilized with this cable map:
One Host Cable Configurations
(page 261).
259
