User Guide
c. Slowly slide the enclosure forward to ensure the CMA arm is operating properly, then
slide it back into the rack.
8. Cable the CMA.
a. Unlatch the elbow side of the CMA arm and swing it forward by pressing the blue button
that says "push" to unlatch it.
b. Open all of the baskets

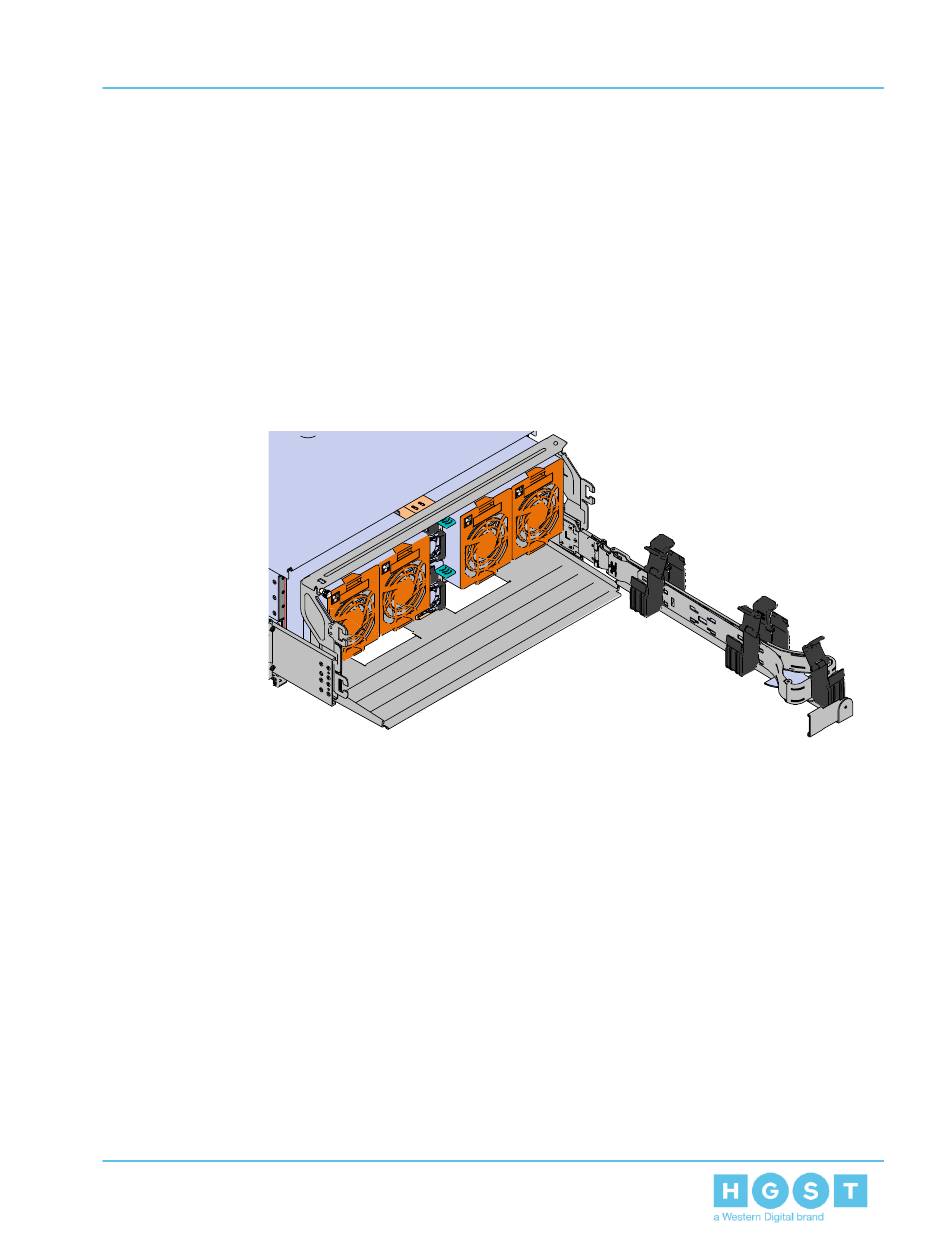

Figure 81: Open Baskets
c. Gather the two SAS cables and two power cables to install in the left hand side.
103
4. Part Replacement
4.8 CMA Lite Replacement
