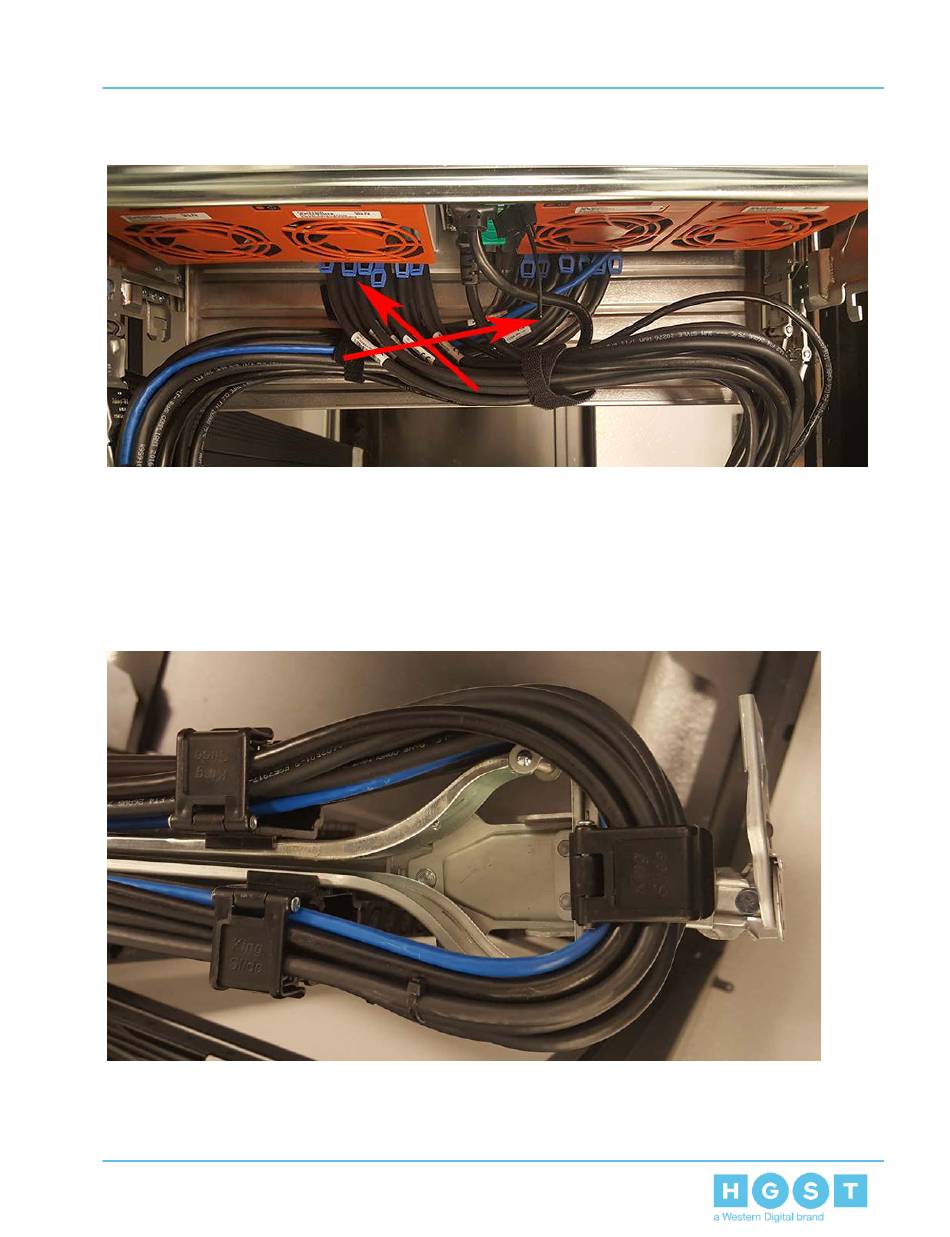

Figure 187: Crisscross Cables
When the cables are routed into the CMA, make sure there is some slack given to the elbow joint
of the CMA. It is recommended not to wrap the cables tightly around this joint because this can
cause binding and prevent smooth operation. To ensure there is enough slack at the elbow, pull the
enclosure in and out of the rack and have another installer check for binding in the elbow joint. Make
sure the cables are bending and not twisting.
Figure 188: CMA Elbow with Full Cable Bundle
At the end of the CMA where the cables exit, use a cable tie to bundle the cables together. Make
sure the cables are bending and not twisting.
