HGST Ultrastar Data102 User Manual page 64

User Guide
3.8.3.1 Operating the 2.5" Drive Carrier
Follow these steps to operate the clamping mechanism and install a 2.5" drive in the carrier.
1. Locate the release clips on the rear and press them inward to release the clamp.
2. Slide the clamp in the direction shown in the following image to loosen it from the drive. Be
sure not to slide too far as this will allow the clamp to fall from from the carrier body and it will
have to be reinstalled.

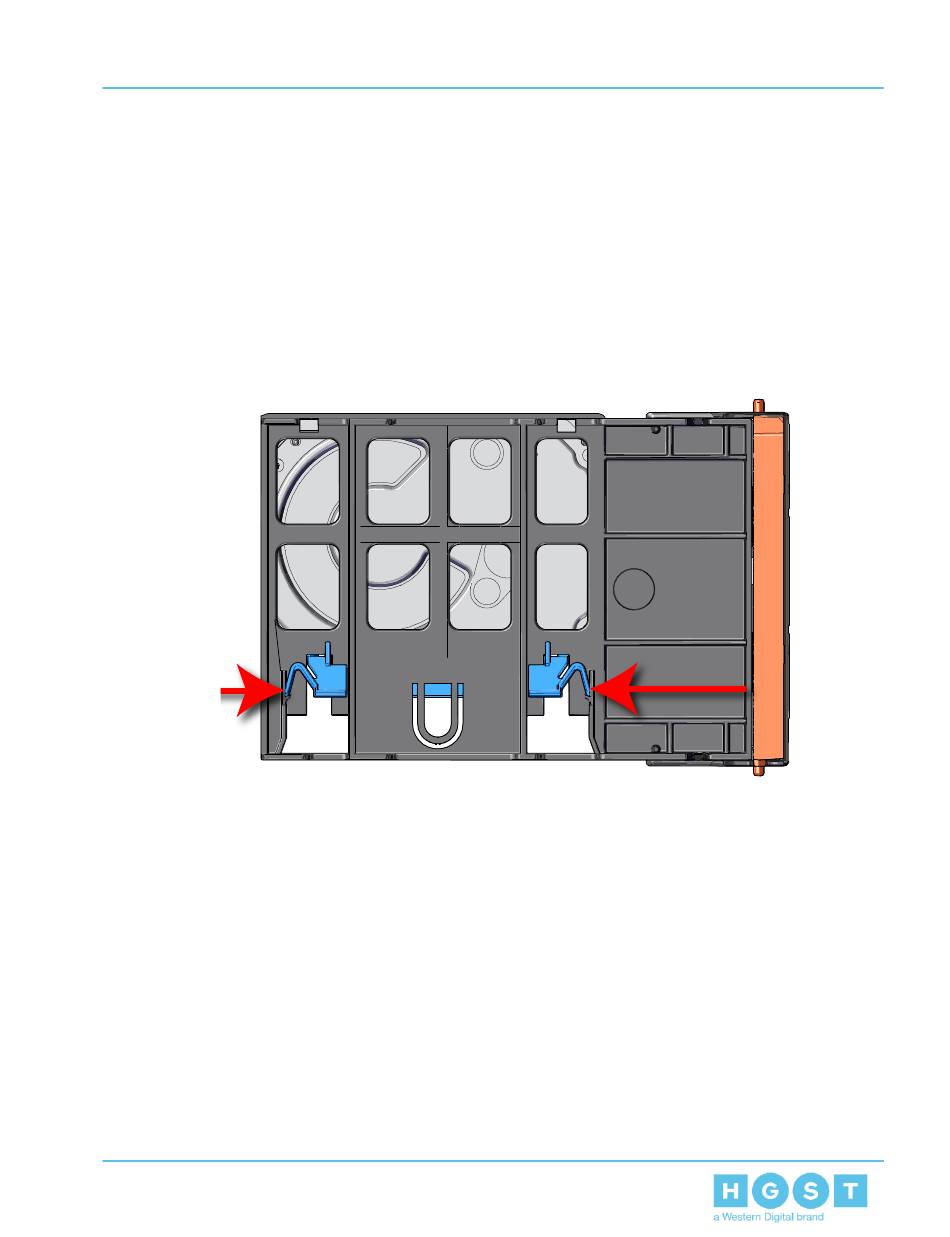

Figure 32: Clamp Release (clamp shown in blue for visual clarity)
54
3. Component Overviews
3.8 Drive Assembly Description
