4. Part Replacement
4.9 Rails Replacement
User Guide

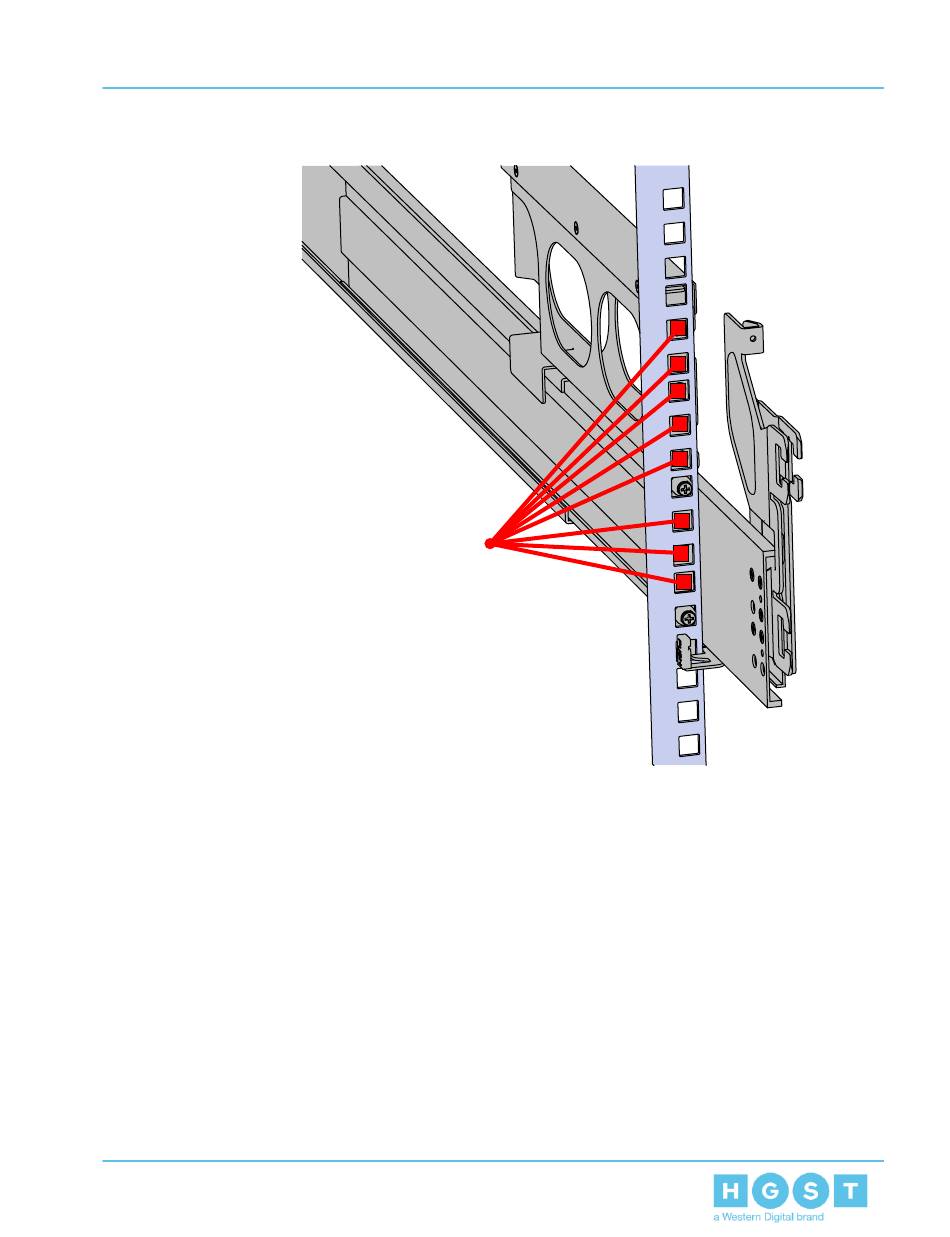

Figure 114: Screw Installation Location
Screw Locations
23. Install the two rack latch brackets at the front of the rack.
a. Orient the brackets so that the screw holes are between the two pins supporting the
outer rails as shown in the following image. There is a left and a right. Use the image
below as a guide for how to orient this bracket and mirror it for the other side. Notice the
increased distance between the top two screw holes and the lower screwholes and the
flange being oriented on the outside.
134
