User Guide

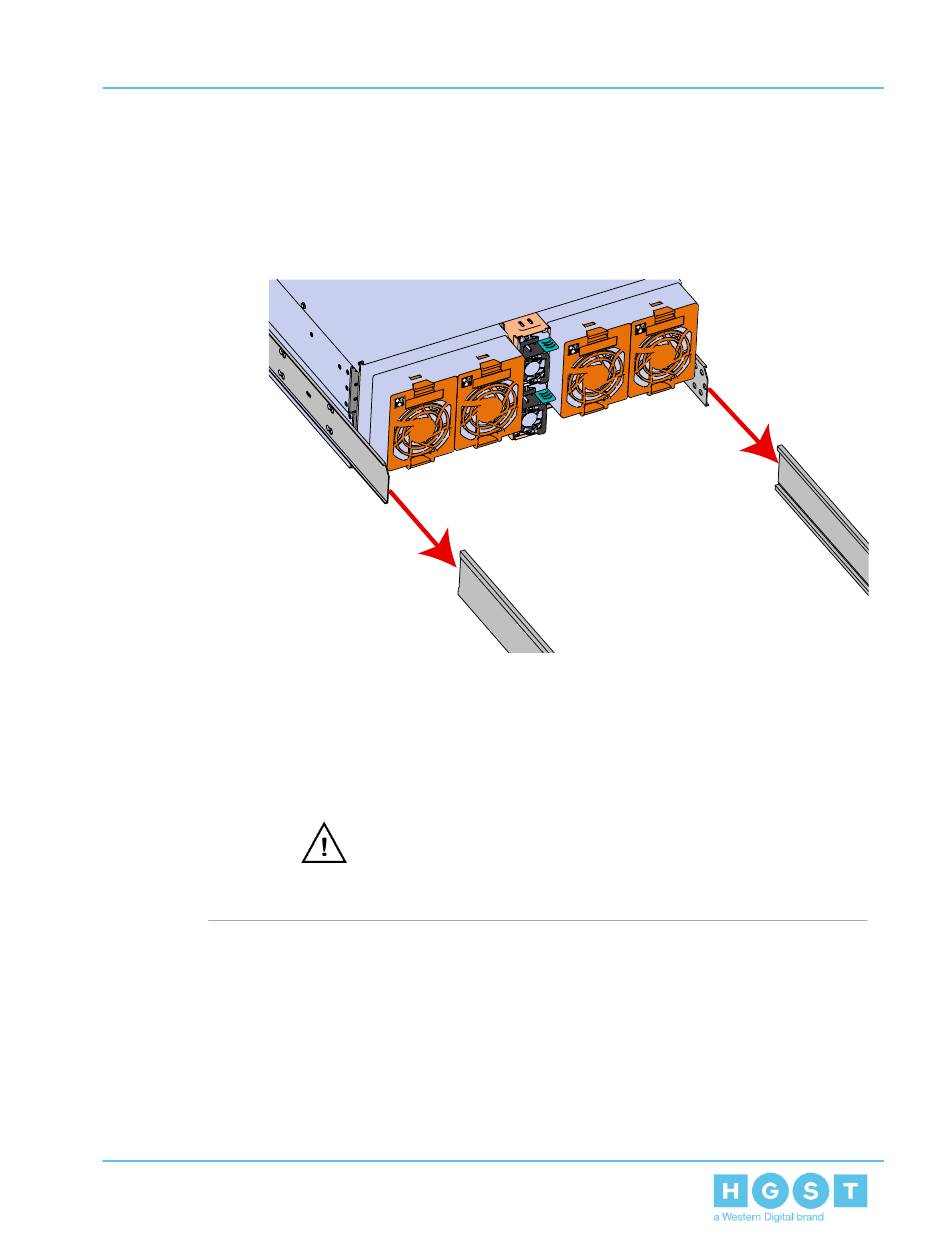

Figure 158: Installing the Chassis
b. Caution:
fully forward and that the detent has engaged. This is to prevent potential damage
due to improper mating of the rails.
Position one individual on each side of the enclosure to perform a team lift and have
the third individual standing at the protruding rack rails to guide the chassis to mate with
rack rails.
c. Team-lift the enclosure until the inner rails that are attached to the chassis align with the
extended mid-rails attached to the rack, and guide the inner rails on the chassis to mate
with the rack rails.
d. Once the rails are mated properly, slide the enclosure into the rack until it is stopped by
the safety catch on the rails. Push the release lever on the safety latch located on the
side of each of the rails and push the enclosure the rest of the way into the rack.
Make sure that the bearing plate on the inside of the mid-rails are
175
4. Part Replacement
4.10 Chassis Replacement
