Manual Configuration
Web – Click System, IP Configuration. Select the VLAN through which
the management station is attached, set the IP Address Mode to "Static,"
enter the IP address, subnet mask and gateway, then click Apply.
CLI – Specify the management interface, IP address and default gateway.
Console#config
Console(config)#interface vlan 1
Console(config-if)#ip address 10.1.0.254 255.255.255.0
Console(config-if)#exit
Console(config)#ip default-gateway 192.168.1.254
Console(config)#

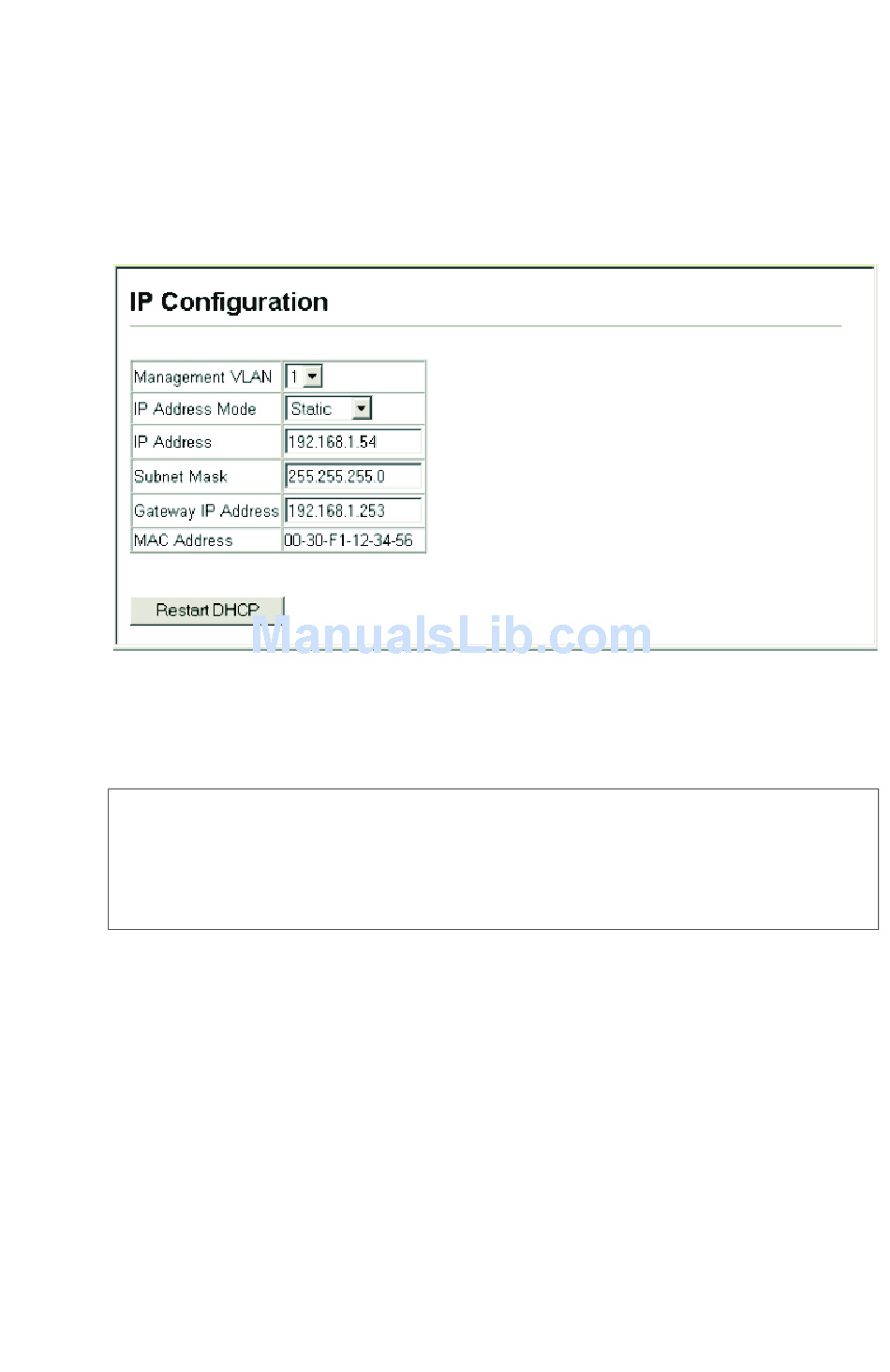

Figure 3-6. Manual IP Configuration

B C
ASIC ONFIGURATION
4-146
4-245
4-247
3-21
