Configuring Uplink And Downlink Ports; Figure 3-83 Private Vlan Link Status - SMC Networks SMC8748ML3 Management Manual

C
ONFIGURING THE

Configuring Uplink and Downlink Ports

Use the Private VLAN Link Status page to set ports as downlink or uplink
ports. Ports designated as downlink ports can not communicate with any
other ports on the switch except for the uplink ports. Uplink ports can
communicate with any other ports on the switch and with any designated
downlink ports.
Web – Click VLAN, Private VLAN, Link Status. Mark the ports that will
serve as uplinks and downlinks for the private VLAN, then click Apply.
CLI – This configures port 3 as an uplink and port 5 and 6 as downlinks.
Console(config)#pvlan up-link ethernet 1/3 down-link
ethernet 1/5
Console(config)#pvlan up-link ethernet 1/3 down-link
ethernet 1/6
Console(config)#end
Console#show pvlan
Private VLAN status: Enabled
Up-link port:
Ethernet 1/3
Down-link port:
Ethernet 1/5
Ethernet 1/6
Console#
3-198
S
WITCH

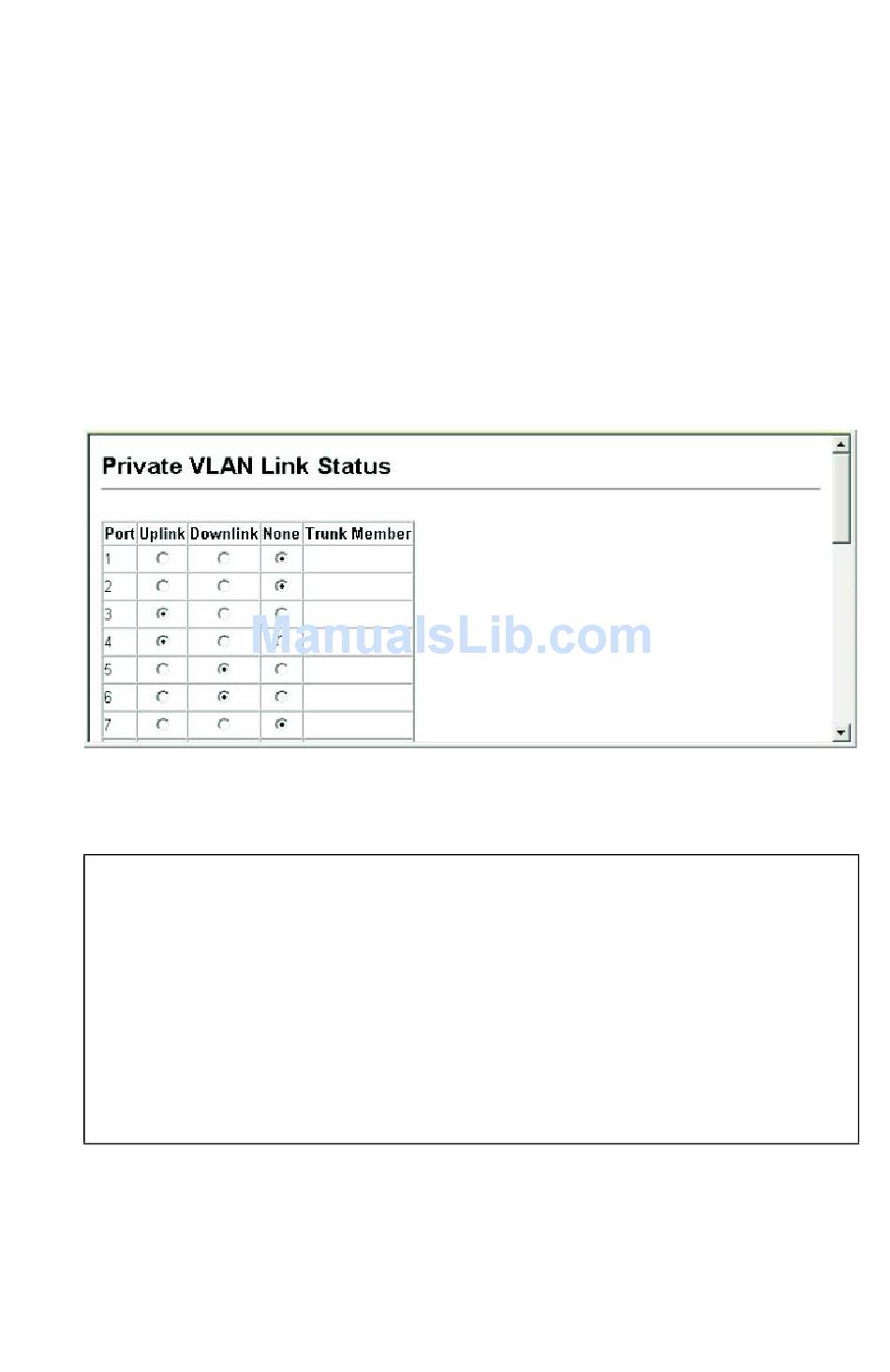

Figure 3-83 Private VLAN Link Status
