Switch time : 4ms, max.
Maximum Number of Cards : 1
Ordering Information : 1204-0F: Relay Outputs Module

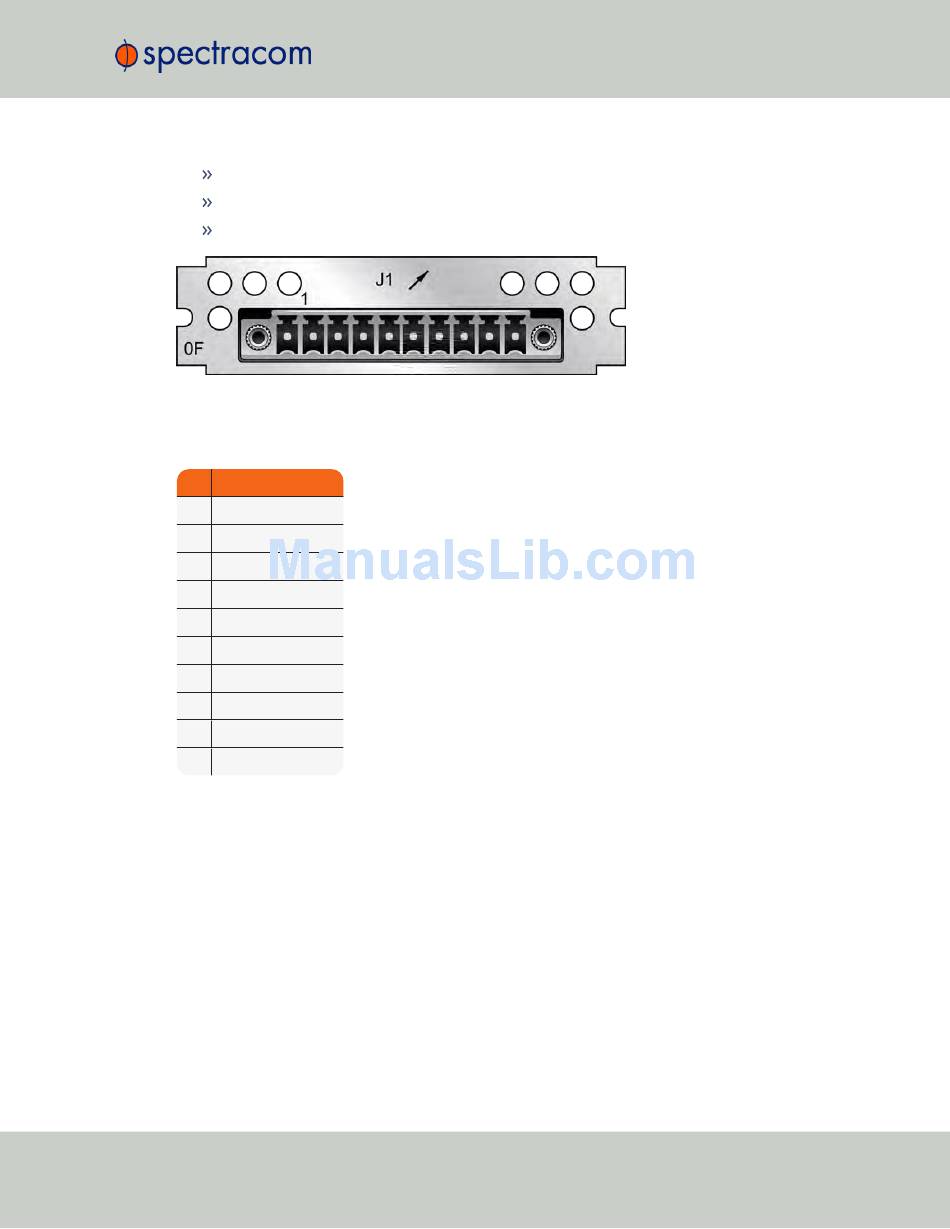

Figure 5-55:
Model 1204-0F option card rear plate
Terminal block pin-out, alarm relay out
PIN
SIGNAL
1
GND
2
Relay 0 NO
3
Relay 0 NC
4
Relay 0 COMMON
5
Relay 1 NO
6
Relay 1 NC
7
Relay 1 COMMON
8
Relay 2 NO
9
Relay 2 NC
10
Relay 2 COMMON
Operation of the Alarm Relay Card
SecureSync User Reference Guide
APPENDIX
473
