5.2.5

Time Code Option Cards

This section contains technical information and SecureSync Web UI procedures for option
cards designed to deliver timing data in time code formats, e.g. IRIG, HAVE QUICK, or
STANAG.
5.2.5.1

IRIG Out [1204-15, -1E, -22]

These IRIG Output option cards provide SecureSync with four IRIG outputs. Available with BNC
connectors, Fiber Optic ST connectors, or RS-485 terminal block.
IRIG Out (BNC): Specifications
Inputs/Outputs : (4) IRIG Outputs
Signal Type and Connector : IRIG A, B, E, G, NASA 36, amplitude modulated; 0.5 V to
6V
Accuracy : see "IRIG Output Accuracy Specifications" on page 539
Maximum Number of Cards : 6
Ordering Information : 1204-15 Four IRIG Output Module, BNC
Figure 5-37:
IRIG Out (Fiber Optic): Specifications
Inputs/Outputs : (4) IRIG Outputs
Signal : IRIG A, B, E, G or NASA-36
Operating Wavelength : 820/850 nm
394
into 50 Ω
p-p

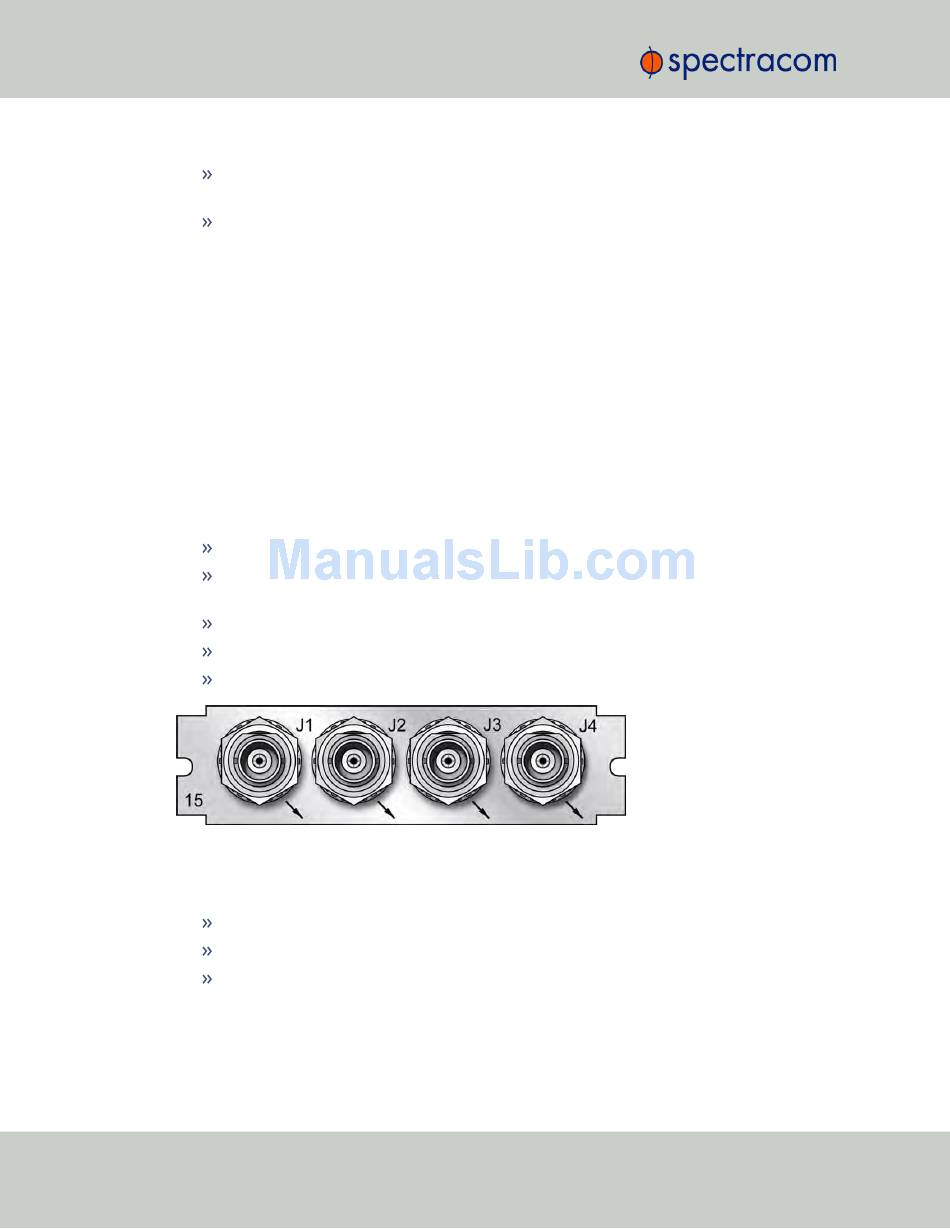

Model 1204-15 option card rear plate
SecureSync User Reference Guide
