2.17 Configuring Outputs
3.

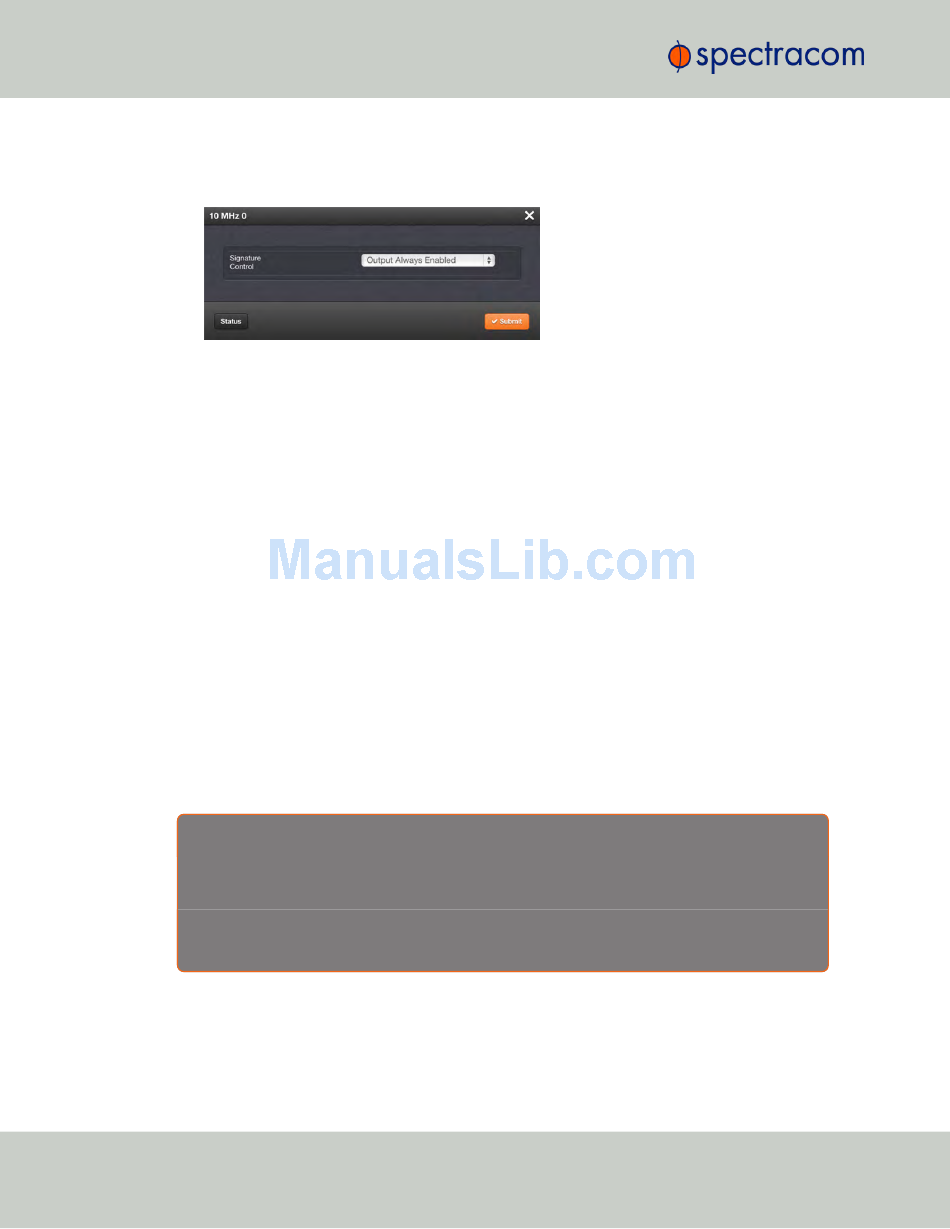

The 10 MHz edit window will display. Choose a value from the Signature Control field
drop-down list to determine what SecureSync shall do with the output signal in the event its
input reference is lost. For more information, see "Signature Control" below.
4.
Click Submit.

2.17.3 Configuring Optional Outputs

Next to the standard outputs, optional outputs e.g., ASCII or IRIG, are available through
Option Cards.
The functionality and configuration of these options are documented under "Option Cards" on
page 328.

2.17.4 Network Ports

The Network Ports can be configured under MANAGEMENT > Network Setup . For more
information, see "Configuring Network Settings" on page 54.

2.17.5 Signature Control

Signature Control is a user-set parameter that controls when a SecureSync output (for example,
1PPS, or IRIG) will be present. This feature allows you to determine how closely you want to link
an output to its input. This not only allows you to determine the quality of your output signal
(e.g., by deactivating it, when the holdover period expires), but also offers the capability to
indirectly send an input-reference-lost-alarm to a downstream recipient via the presence of the
signal.
E X A M P L E S :
You can setup Signature Control such that SecureSync's built in 1PPS output becomes disabled the
moment its input reference is lost (e.g., if a valid GNSS signal is lost).
Or, you can setup your output signal such that remains valid while SecureSync in holdover mode, but
not in free run.
The available options are:
I.
Output Always Enabled —The output is present, even if SecureSync is not synchronized
to its references (SecureSync is free running).
