APPENDIX
d.

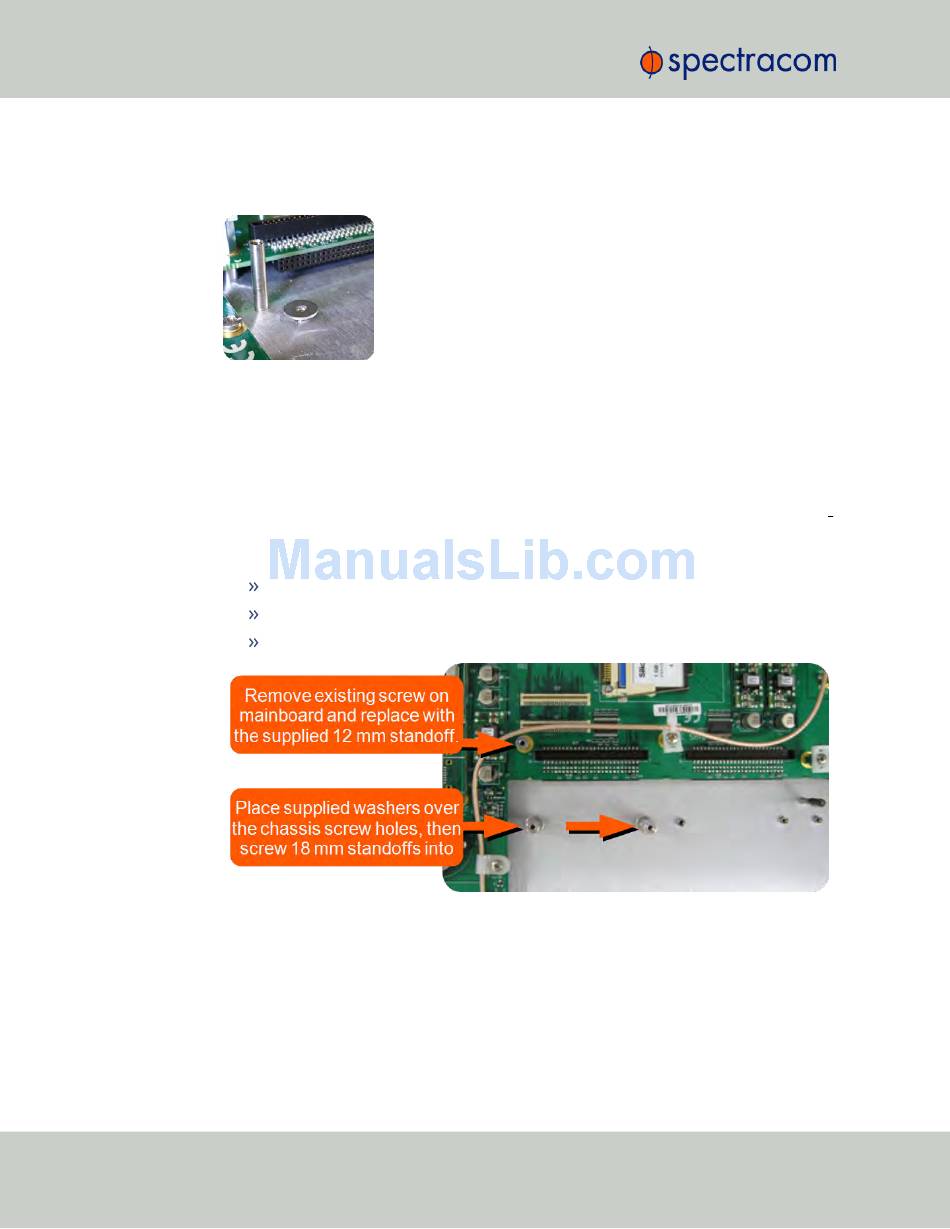

Take the supplied washers and place them over the chassis screw holes (see figure
below).
Figure 5-9:
e.
Screw the supplied 18-mm standoffs into place above the washers (see figure below),
applying a torque of 0.9 Nm/8.9 in-lbs.
f.
On the SecureSync mainboard, remove the screw located under the J11 connector and
replace with the supplied 12-mm standoff (see figure below).
g.
Insert the Gigabit Ethernet option card into Slot 2, and carefully press down to fit the con
nectors on the bottom of the Gigabit Ethernet card to the connectors on the mainboard.
h.
Secure the option card by screwing the supplied M3 screws into:
Figure 5-10:
344
Washer placement
both standoffs on the chassis
the standoff added onto the mainboard
and into the rear chassis. Apply a torque of 0.9 Nm/8.9 in-lbs.
Gigabit Ethernet option card installation
