APPENDIX
Square Wave Output: Signal State
To quickly view if the Square Wave Outputs of this option card are currently enabled or dis
abled, go to the option card's Status Summary panel. For instructions, see: "Viewing an
Input/Output Signal State" on page 331.

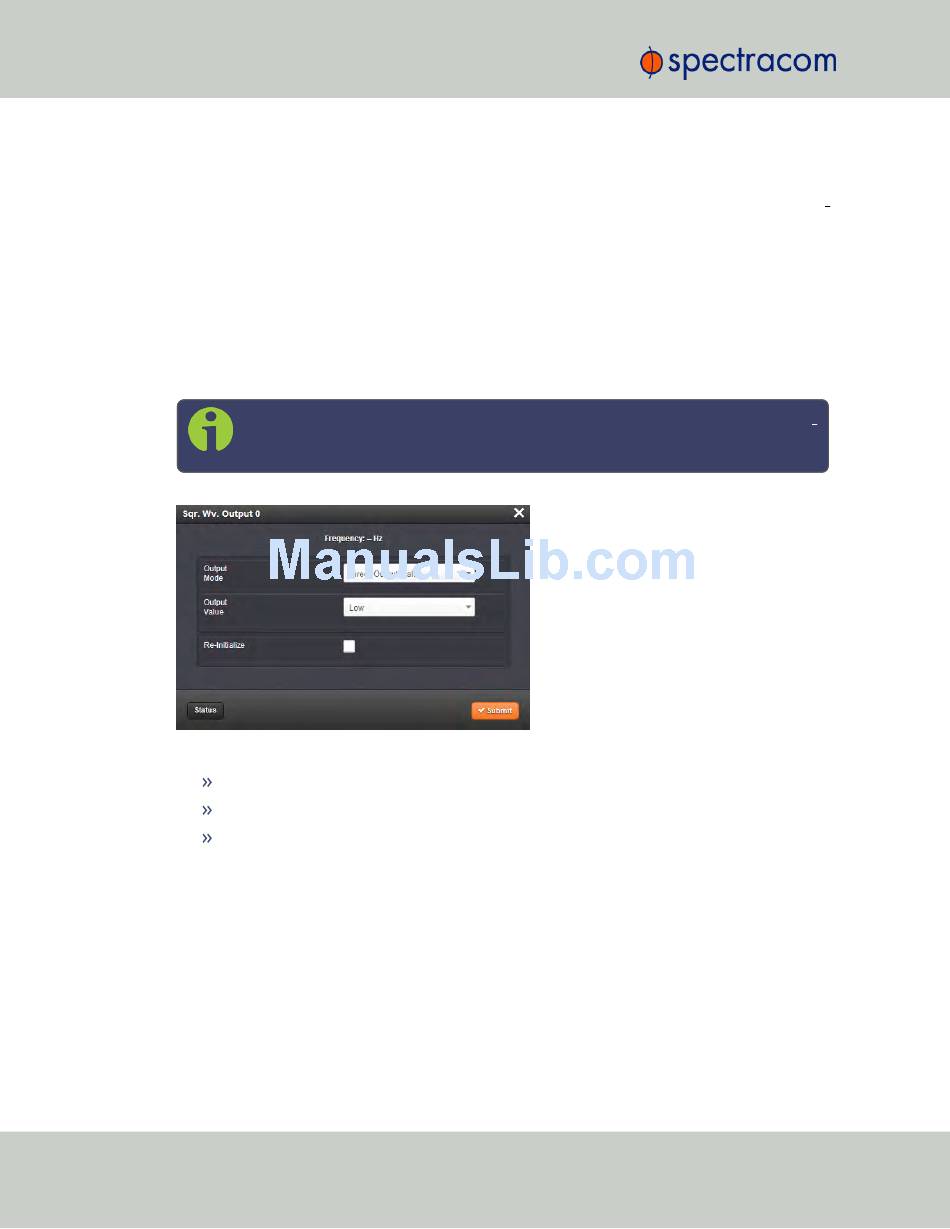

Square Wave Output: Edit Window
To configure one of the Square Wave Outputs , go to its Edit window. For instructions, see:
"Configuring Option Card Inputs/Outputs" on page 330.
The Web UI list entry for this card is named: Sq Wv Out, BNC.
The connector numbers are: J1...J4.
The Edit window allows the configuration of the following settings:
Output Mode : This is a drop-down list, offering the following options:
Output Value : Determines the output level (low or high).
Re-Initialize : Reinitializes square wave generation and aligns to 1PPS.
Square Wave Output: Status Window
To view the current settings of a Square Wave Output , go to its Status window. For instructions,
see: "Viewing Input/Output Configuration Settings" on page 329.
The Web UI list entry for this card is named: Sq Wv Out, BNC.
The connector numbers are: J1...J4.
378
SecureSync starts numbering I/O ports with 0 (only 1PPS and 10 MHz out
Note:
puts start at 1, because of the built-in outputs).
