APPENDIX
1PPS Input or Output: Viewing Signal State
To quickly view if the 1PPS inputs and outputs of this option card are currently enabled or dis
abled, go to the option card's Status Summary panel. For instructions, see: "Viewing an
Input/Output Signal State" on page 331.

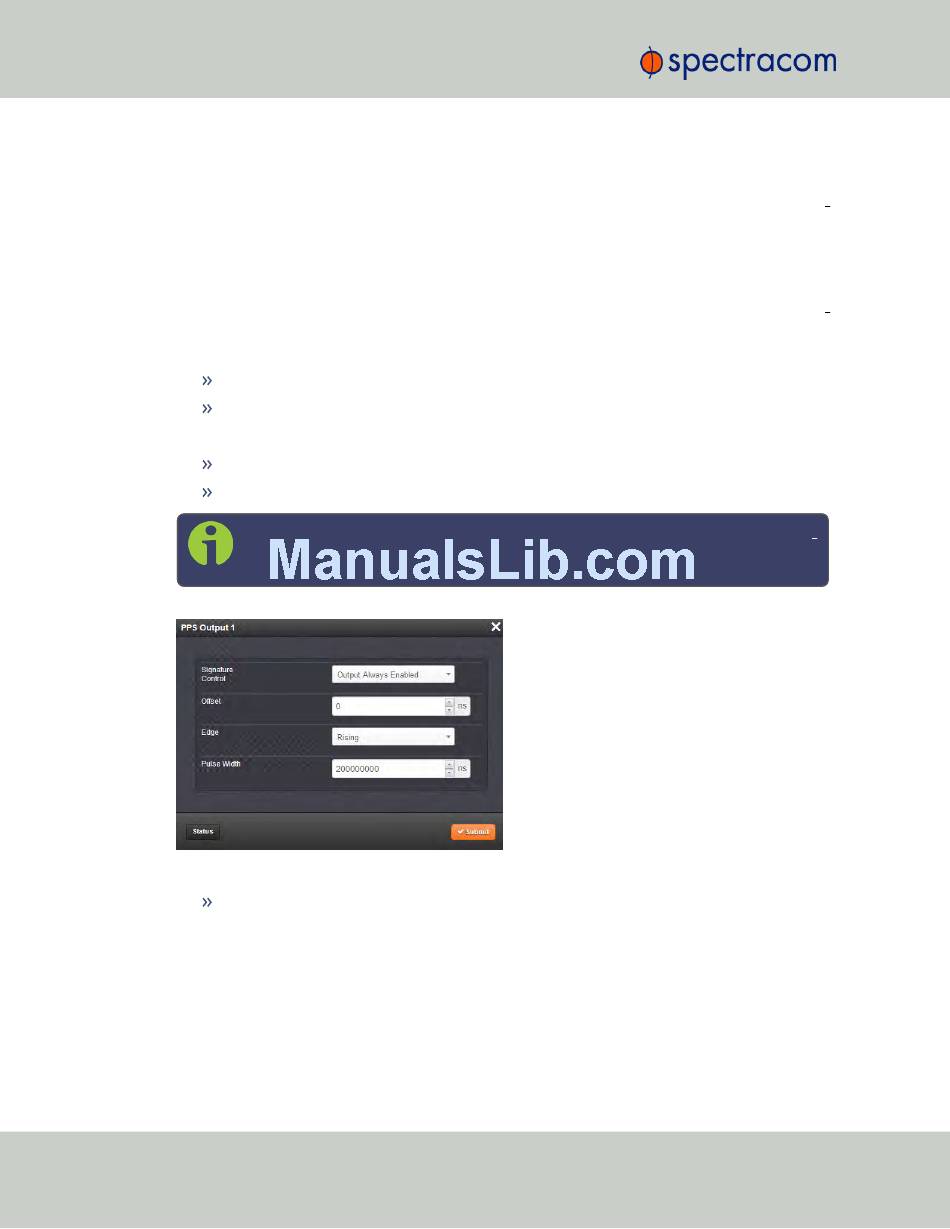

1PPS Output: Edit Window
To configure the settings of a 1PPS output , go to its Edit window. For instructions, see: "Con
figuring Option Card Inputs/Outputs" on page 330.
The Web UI list entries for these cards are:
1PPS In/Out
1PPS In/Out, Fiber
The connector numbers are:
J2, J3, J4 (model -28)
J2, J3 (model -2A)
The fields available are:
Signature Control : Used to control when the 1PPS output signal will be present. See:
"Signature Control" on page 136.
356
SecureSync starts numbering I/O ports with 0 (only 1PPS and 10 MHz out
Note:
puts start at 1, because of the built-in outputs).
