APPENDIX

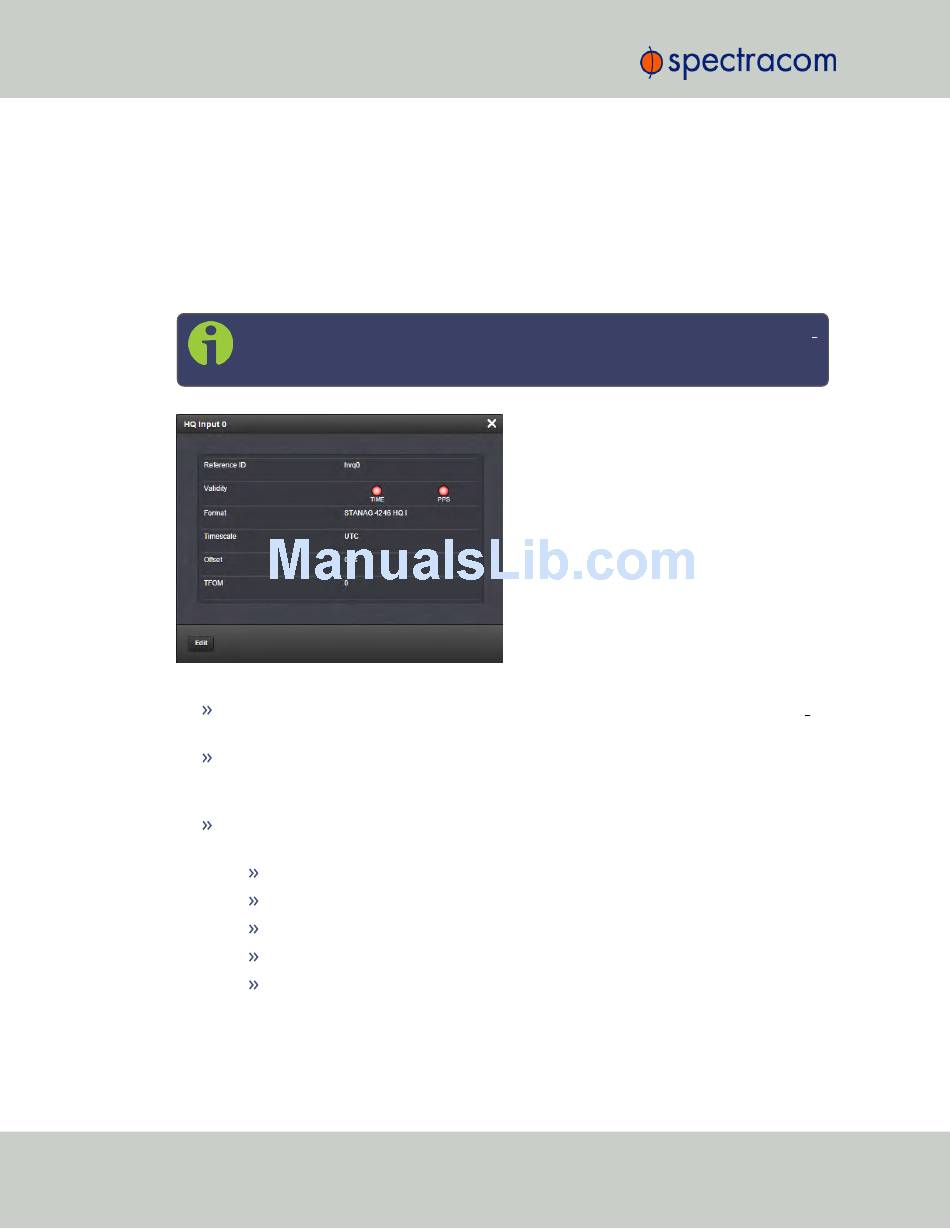

HAVE QUICK Input: Status Window
To view the current settings of the HAVE QUICK Input (also referred to as 'Reference'), go to its
Status window. For instructions, see: "Viewing Input/Output Configuration Settings" on
page 329.
The Web UI list entry for this card is: HAVE QUICK In/Out .
The input is named: HQ Input [number] .
The Status window displays the following settings:
Reference ID : Indicates the letters used in the Input Reference Priority table for this par
ticular input reference.
Validity : [TIME, PPS] Indicates the validity of the Time input and the PPS input. If the input
signal is valid the indicator will be green. If the signal is not valid, the indicator will be
orange.
Format : Used to configure the formatting of the four available HAVE QUICK outputs. The
available output formats are as follows:
438
Note: SecureSync starts numbering I/O ports with 0 (only 1PPS and 10 MHz out
puts start at 1, because of the built-in outputs).
STANAG 4246 HQ I
STANAG 4246 HQ II
STANAG 4430 STM
STANAG 4430 Ext HQ
ICD-GPS-060A BCD
