APPENDIX
Figure 5-7:

5.2.2.10 [7]: Frequency Output Cards: Wiring

Additional installation instructions for the following option card models:
Frequency Output cards:
For the cable installation, follow the steps detailed below:
a.
Install the coax cable(s) onto the main PCB, connecting them to the first available open
connectors, from J1... J4. See figure below:
342

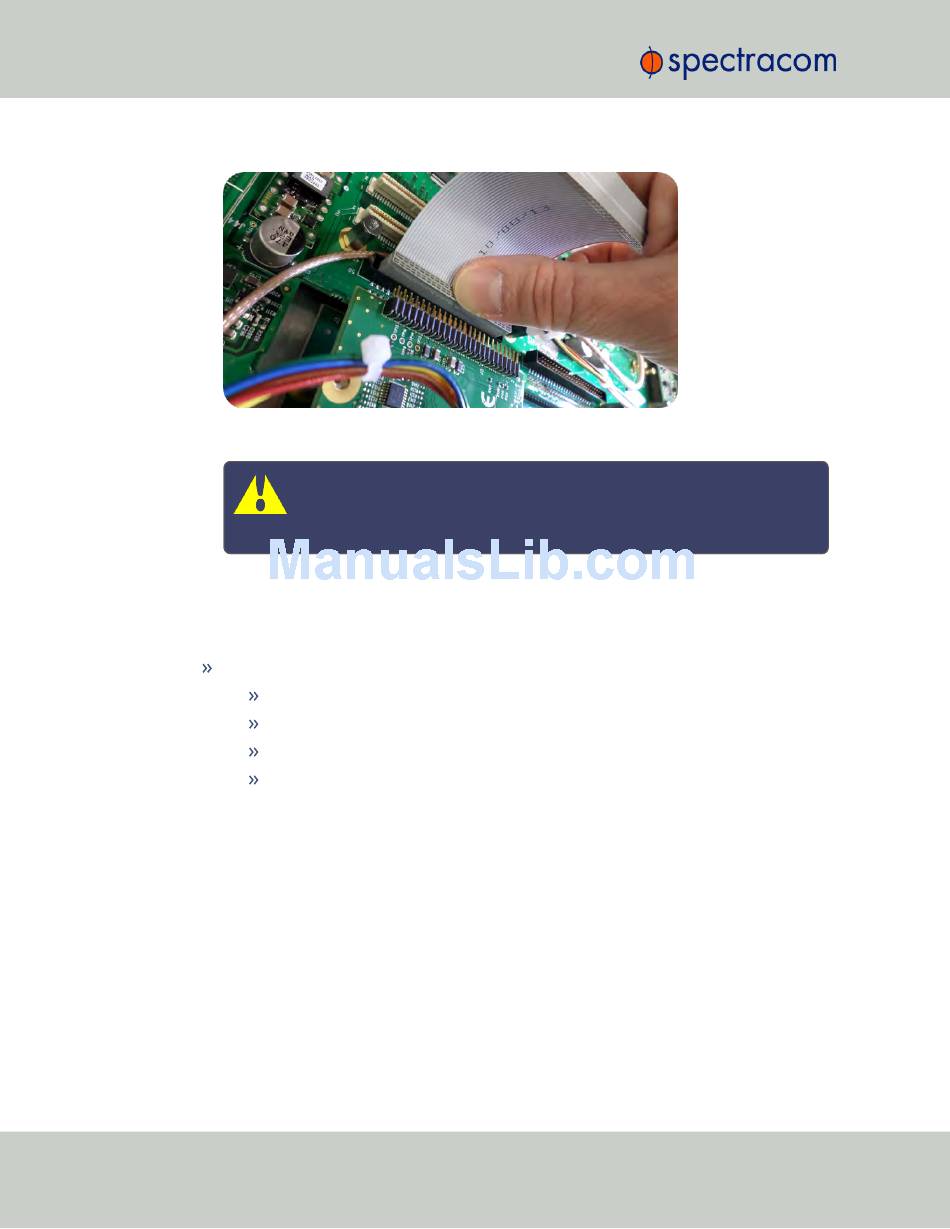

Ribbon cable installation
Caution: Ensure that the ribbon cable is aligned and fastened properly to
all pins on the connector of the card. Otherwise, damage to equipment
may result during power up.
1MHz (PN 1204-26)
5MHz (PN 1204-08)
10 MHz (PN 1204-0C)
10 MHz (PN 1204-1C)
