Optical Connector: ST
Programmable Pulse Width: 100 ns to 900 ms with 20 ns resolution
Absolute Phase Error: ±50 ns (1σ)
Programmable Phase Shift: ±5ns to 500 ms with 5ns resolution
Maximum Number of Cards: 6
Ordering Information: 1204-12B 1PPS Fiber Optic output module, ST connector
Figure 5-18:
PPS Output: Edit Window
To configure the settings of a PPS Output , go to its Edit window. For instructions, see: "Con
figuring Option Card Inputs/Outputs" on page 330.
The Web UI list entries for these option cards are:
1PPS OUT, 4-BNC
1PPS OUT, 10V
1PPS OUT, RS-485
1PPS OUT, Fiber
352

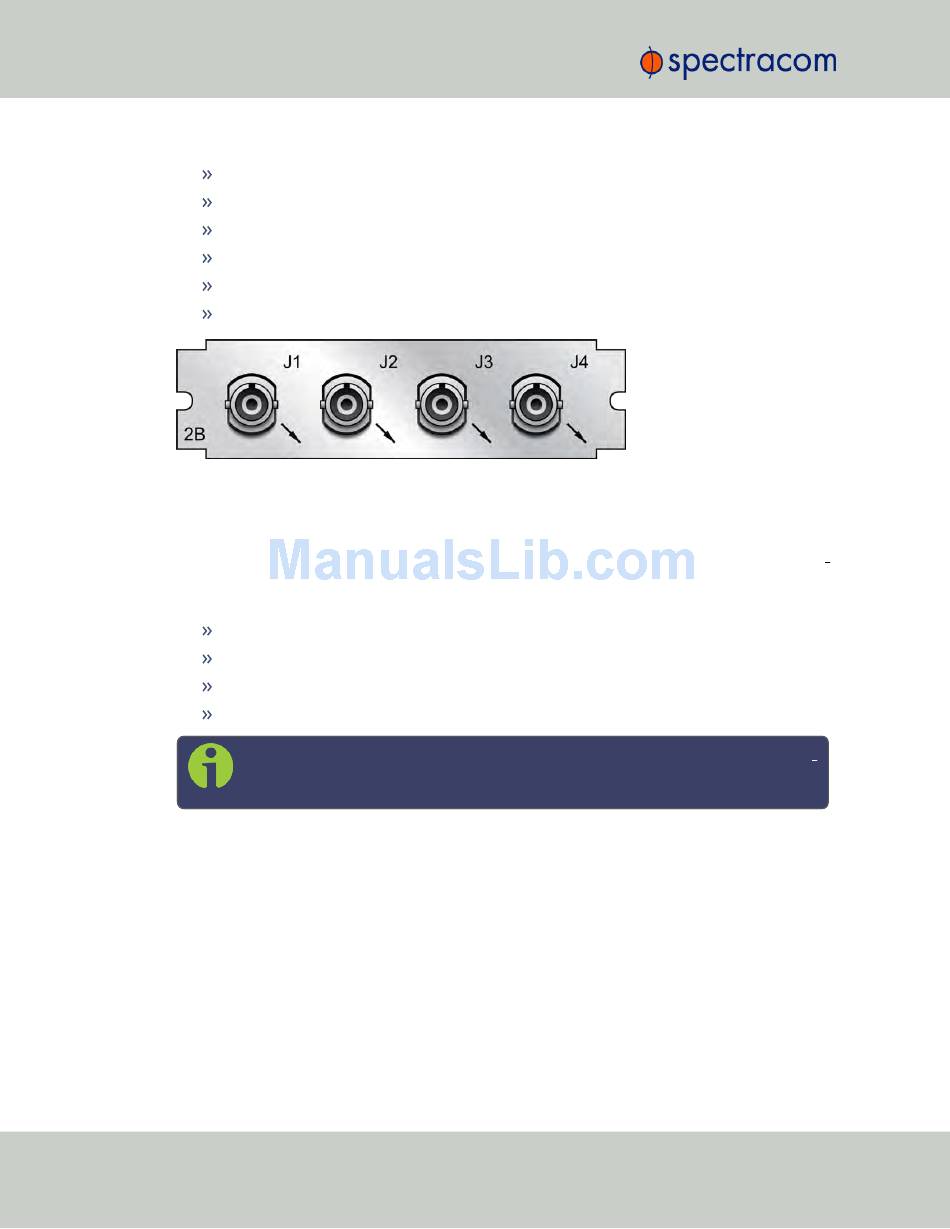

Model 1204-2B option card rear plate
Note:
SecureSync starts numbering I/O ports with 0 (only 1PPS and 10 MHz out
puts start at 1, because of the built-in outputs).
SecureSync User Reference Guide
