APPENDIX
Figure 5-25:
Figure 5-26:
The Frequency Out option cards each have 3 outputs, distributing a 1MHz signal, 5MHz or
10 MHz signal (depending on the card model). All 3 outputs are configured as a single output
and will appear as such in the SecureSync Web UI, numbered sequentially by card instance,
starting with 0 (except the 10 MHz option card, which starts with no.1 because of the built-in
10 MHz output.)
Frequency Output: Edit Window
To configure the settings of a Frequency Output , go to its Edit window. For instructions, see:
"Configuring Option Card Inputs/Outputs" on page 330.
The list entry for this card is named: 1/5/10 MHz BNC (or: TNC)
The connector numbers are: J1...J3.
The Edit window allows the configuration of the following settings:
370

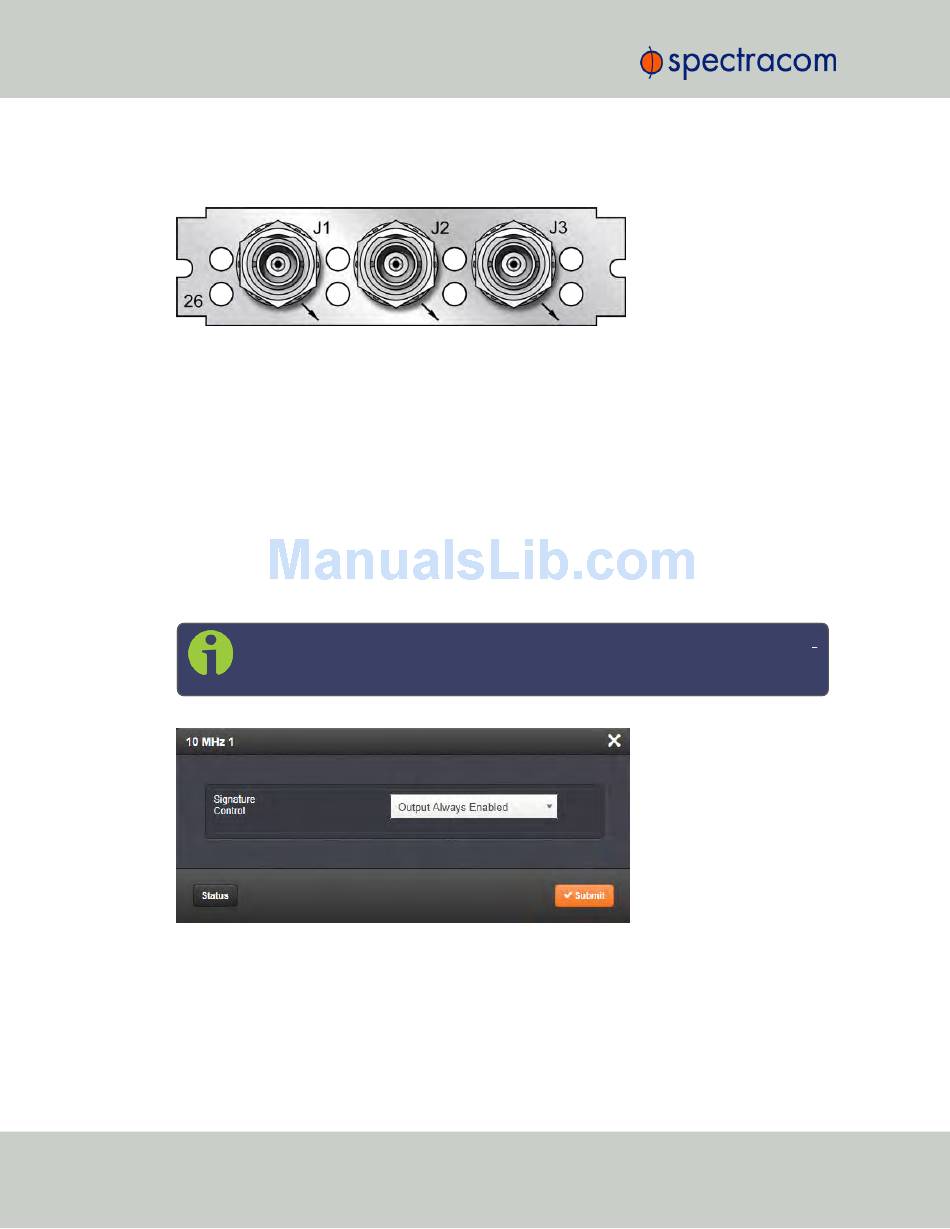

Model 1204-08 option card rear plate
Model 1204-26 option card rear plate
Note: SecureSync starts numbering I/O ports with 0 (only 1PPS and 10 MHz out
puts start at 1, because of the built-in outputs).
