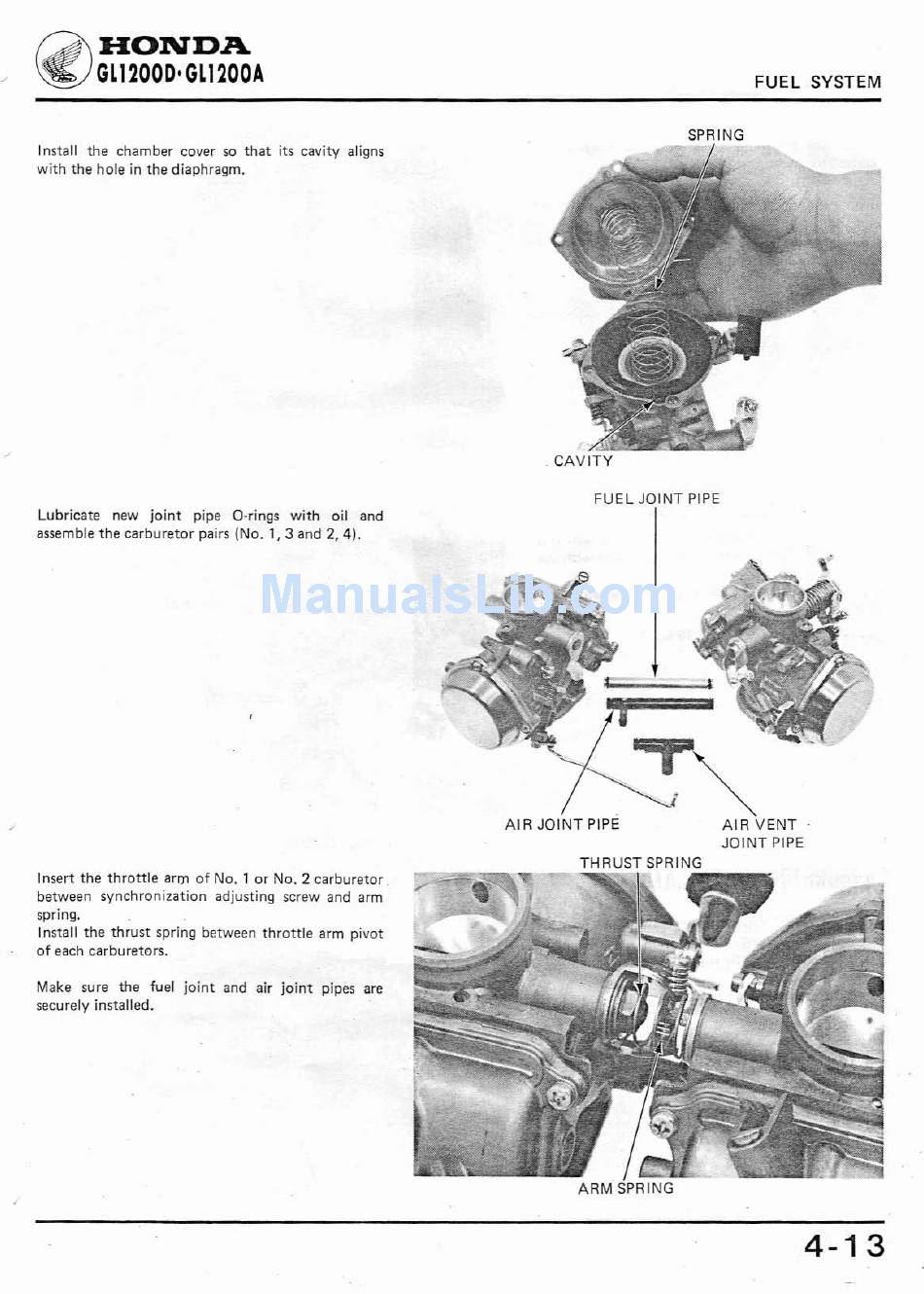

Honda Gold Wing GL1200D Shop Manual page 84

~HONDA
~GL1200D'GLI200A
Install the chamber cOlier so that its cavity aligns
with the hole in the diaphragm.
Lubricate new joint pipe a-rings with oil and
assemble the carburetor pairs (No.1, 3 and 2, 4).
FUEL SYSTEM
SPRING
FUEL JOINT PIPE
AIR JOINT PIPE
~~
AIR VENT
JOINT PIPE
Insert the throttle arm of No. t or No.2 carburetor
between synchronization adjusting screw and arm
spring.
Install the thrust spring between throttle arm pivot
of each carburetors.
Make sure the fuel joint and air joint pipes are
securely installed.
ARM SPRING
4-13
