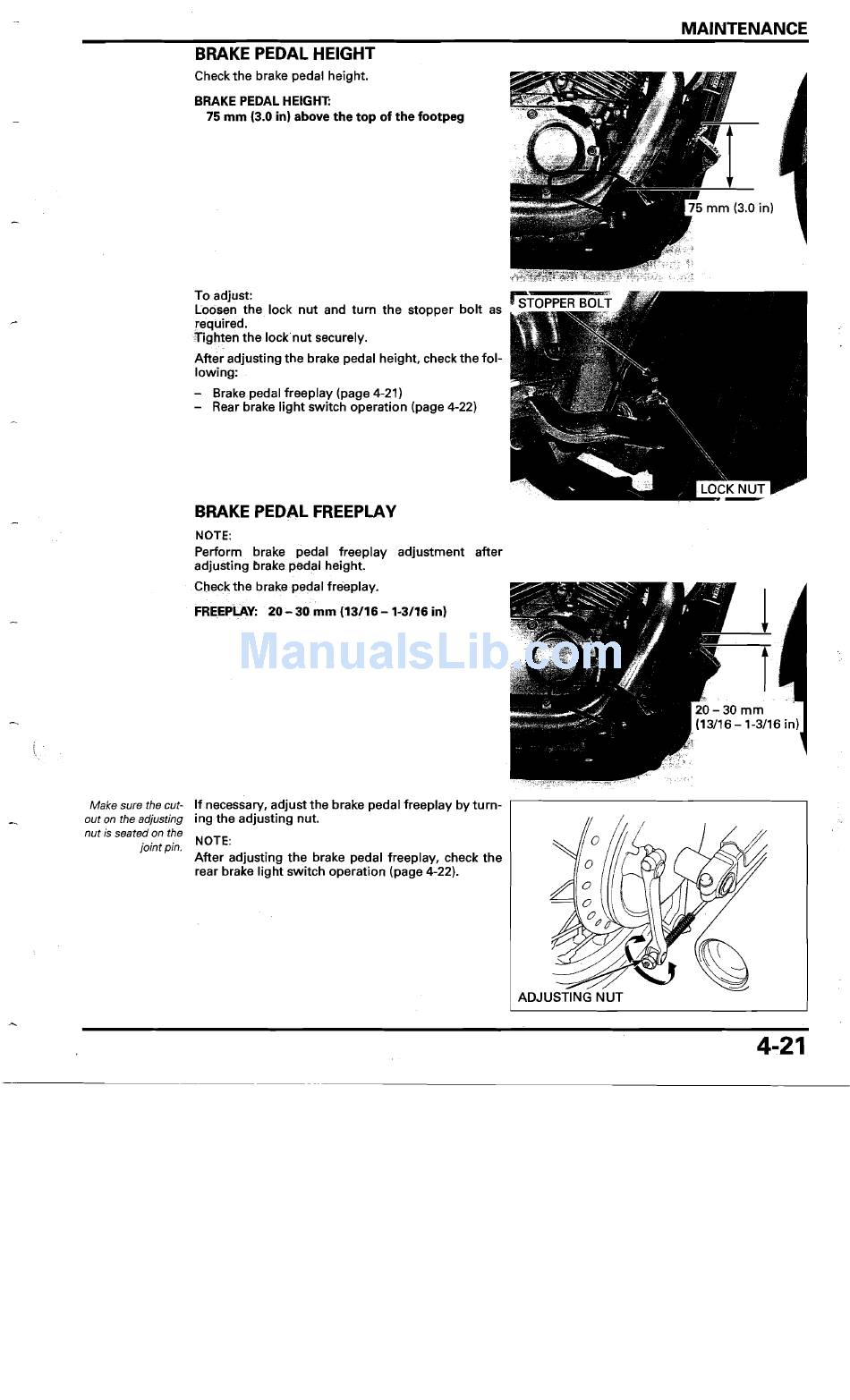

Honda VT750C2 Shadow Spirit Service Manual page 82

MAINTENANCE
BRAKE PEDAL HEIGHT
Check the brake pedal height.
BRAKE PEDAL HEIGHT:
75 mm (3.0 in) above the top of the footpeg
Make sure the cut­
out on the adjusting
nut is seated on the
joint pin.
To adjust:
Loosen the lock nut and turn the stopper bolt as
required.
IT"igl'1ten the lock'nut securely.
After adjusting the brake pedal height, check the fol­
lowing:
- Brake pedal freeplay (page 4-21)
- Rear brake light switch operation (page 4-22)
BRAKEPEDALFREEPLAV
NOTE:
Perform brake pedal freeplay adjustment after
adjusting brake pedal height.
Cl'1eck the brake pedal freeplay.
FREEPLAY: 20 - 30 mm (13/16 - 1-3/16 in)
If necessary, adjust the brake pedal freeplay by turn ­
ing the adjusting nut.
NOTE:
After adjusting the brake pedal freeplay, check the
rear brake light switch operation (page 4-22).
4-21
