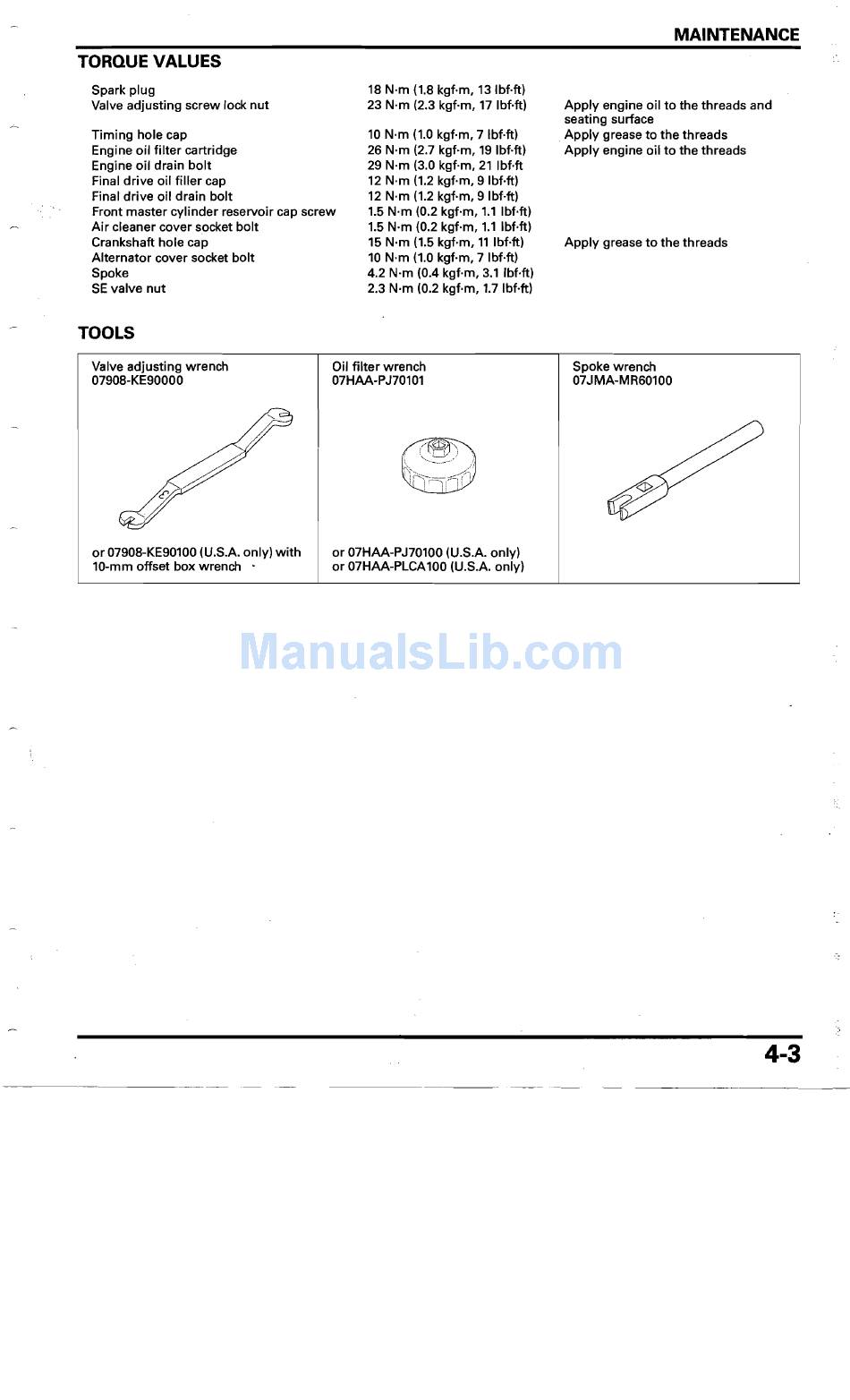

MAINTENANCE
TORQUE VALUES
Spark plug
Valve adjusting screw lock nut
Timing hole cap
Engine oil filter cartridge
Engine oil drain bolt
Final drive oil filler cap
Final drive oil drain bolt
Front master cylinder reservoir cap screw
Air cleaner cover socket bolt
Crankshaft hole cap
Alternator cover socket bolt
Spoke
SE valve nut
TOOLS
18 N'm (1.8 kgf·m, 13Ibf·ft)
23 N'm (2.3 kgf'm, 17 Ibf·ft)
10 N·m (1.0 kgf'm, 7 Ibf·ft)
26 N·m (2.7 kgf'm, 19 Ibf·ft)
29 N'm (3.0 kgf'm, 21 Ibf·ft
12 N'm (1.2 kgf·m, 9 Ibf·ft)
12 N·m (1.2 kgf·m, 9 Ibf·ft)
1.5 N'm (0.2 kgf·m, 1.1 Ibf·ft)
1.5 N'm (0.2 kgf'm, 1.1 Ibf·ft)
15 N'm (1.5 kgf·m, 11 Ibf·ft)
10 N·m (1.0 kgf·m, 7 Ibf·ft)
4.2 N'm (0.4 kgf·m, 3.1 Ibf·ft)
2.3 N·m (0.2 kgf·m, 1.7 Ibf·ft)
Apply engine oil to the threads and
seating surface
. Apply grease to the threads
Apply engine oil to the threads
Apply grease to the threads
Valve adjusting wrench Oil filter wrench Spoke wrench
07908-KE90000
07HAA-PJ701 01
07~IMA-MR60100
or 07908-KE90100 (U.S.A. only) with or 07HAA-PJ70100 (U.S.A. only)
10-mm offset box wrench . or 07HAA-PLCA100 (U.S.A. only)
4-3
