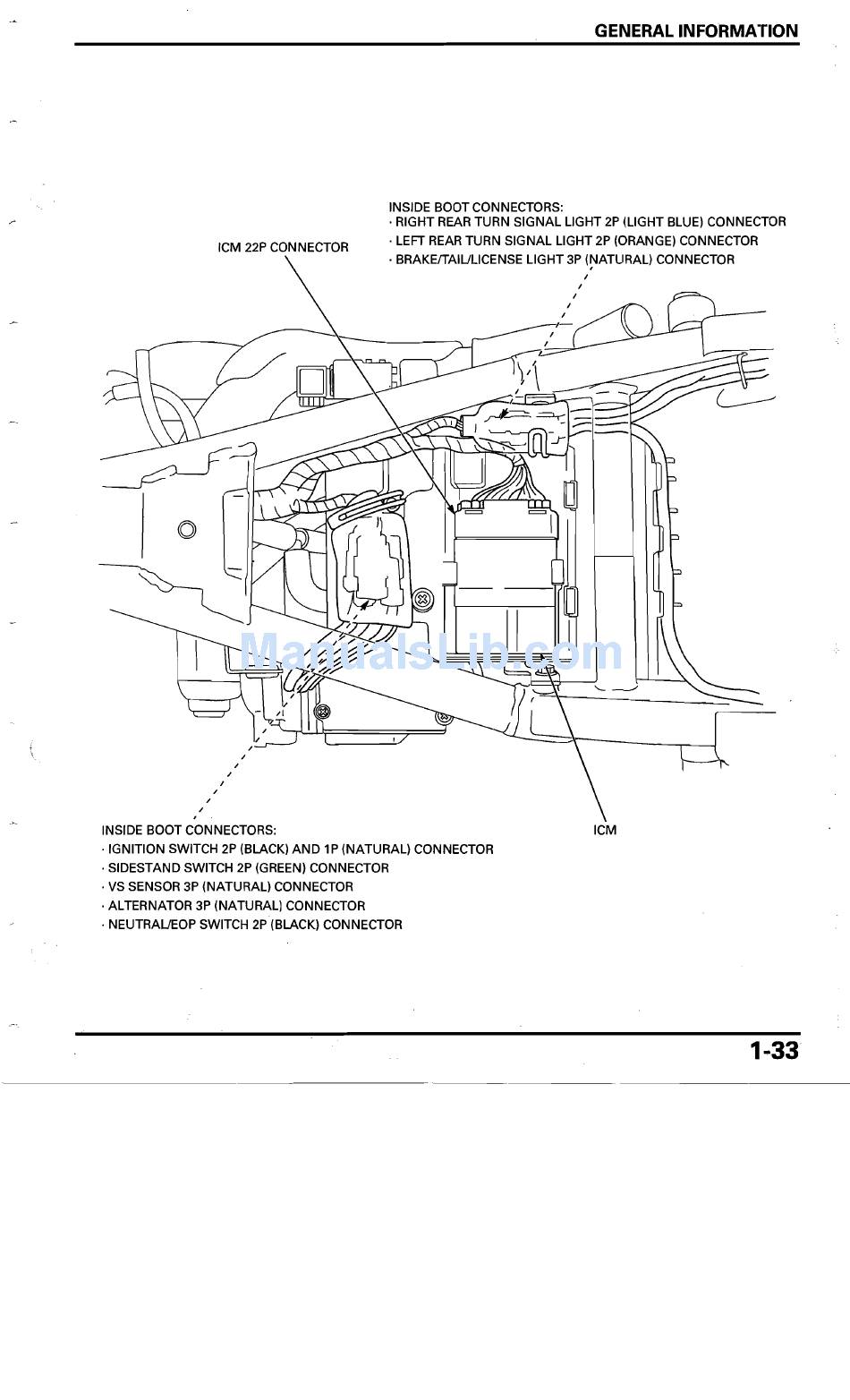

GENERAL INFORMATION
INSIDE BOOT CONNECTORS:
· RIGHT REAR TURN SIGNAL LIGHT 2P (LIGHT BLUE) CONNECTOR
· LEFT REAR TURN SIGNAL LIGHT 2P (ORANGE) CONNECTOR
rCM 22P CONNECTOR
· BRAKEfTAIULICENSE LIGHT 3P
(~ATURAL)
CONNECTOR
INSIDE BOOT CONNECTORS:
ICM
. IGNITION SWITCH 2P (BLACK) AND 1P (NATURAL) CONNECTOR
· SIDESTAND SWITCH 2P (GREEN) CONNECTOR
· VS SENSOR 3P (NATURAL) CONNECTOR
· ALTERNATOR 3P (NATURAL) CONNECTOR
· NEUTRAUEOP SWITCH 2P (BLACK) CONNECTOR
1-33
