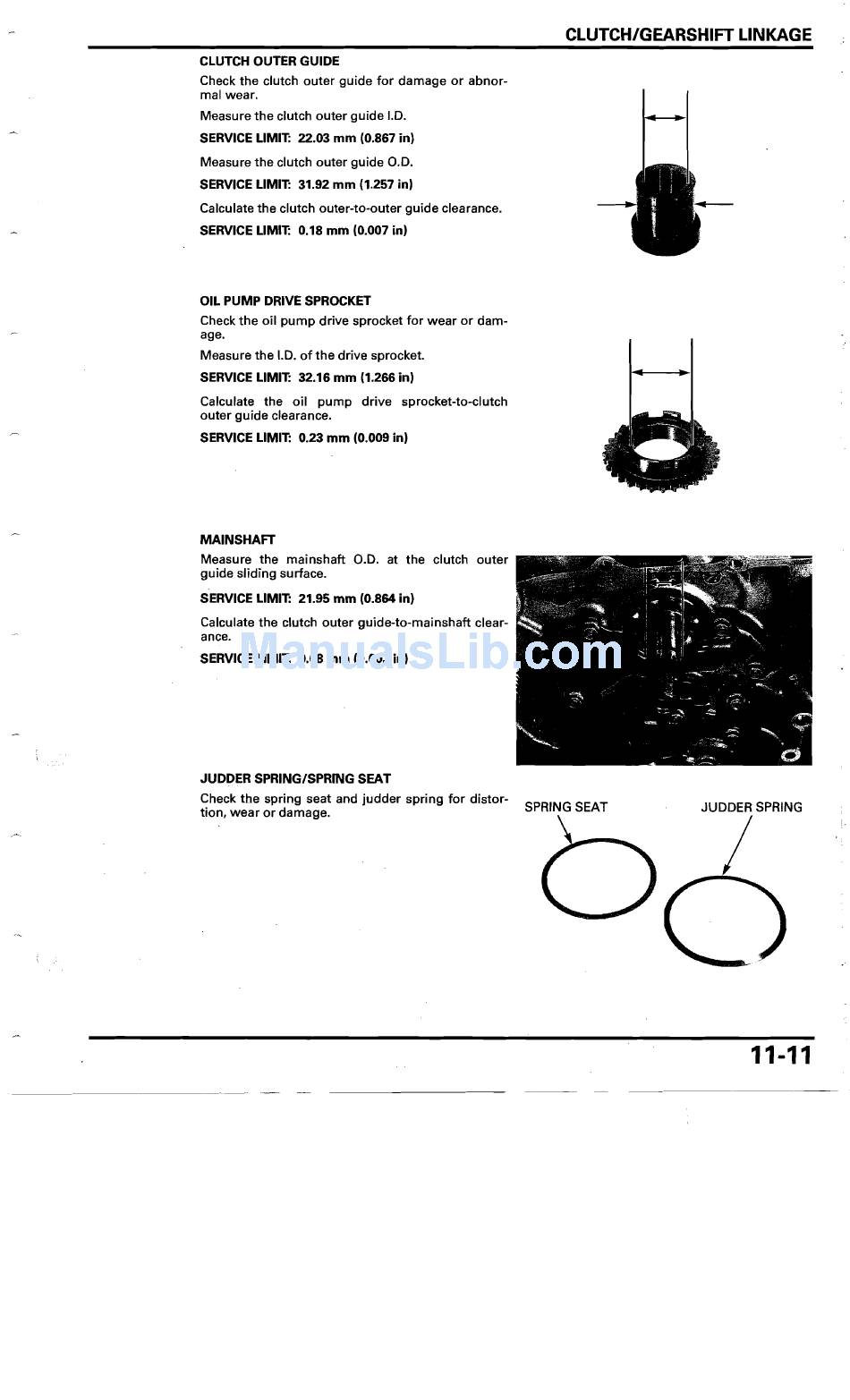

CLUTCH/GEARSHIFT LINKAGE
CLUTCH OUTER GUIDE
Check the clutch outer guide for damage or abnor­
mal wear.
Measure the clutch outer guide 1.0.
SERVICE LIMIT: 22.03 mm (0.867 in)
Measure the clutch outer guide 0.0.
SERVICE LIMIT: 31.92 mm (1.257 in)
Calculate the clutch outer-to-outer guide clearance.
SERVICE LIMIT: 0.18 mm (0.007 in)
OIL PUMP DRIVE SPROCKET
Check the oil pump drive sprocket for wear or dam­
age.
Measure the 1.0. of the drive sprocket.
SERVICE LIMIT: 32.16 mm (1.266 in)
Calculate the oil pump drive sprocket-to-clutch
outer guide clearance.
SERVICE LIMIT: 0.23 mm (0.009 in)
MAINSHAFT
Measure the mainshaft 0.0. at the clutch outer
guide sliding surface.
SERVICE LIMIT: 21.95 mm (0.864 in)
Calculate the clutch outer guide-to-mainshaft clear ­
ance.
SERVICE LIMIT: 0.08 mm (0.003 in)
JUDDER SPRING/SPRING SEAT
Check the spring seat and judder spring for distor­
tion, wear or damage.
. .
SPRING SEAT JUOOER SPRING
11-11
