Back Panel

Figure 9 shows the location of the indicators and controls found on the back panel.
System ID Indicator LED
A System ID LED (blue)
Hot-plug PCI Add-in Card Switches and LEDs
B Attention Switch
MRL (Manually-operated
Retention Latch) Switch
Green LED
Amber LED
Ethernet Interface Status LED Indicators
C Network Interface Status
LED (green)
D Network Interface Status
LED (yellow)

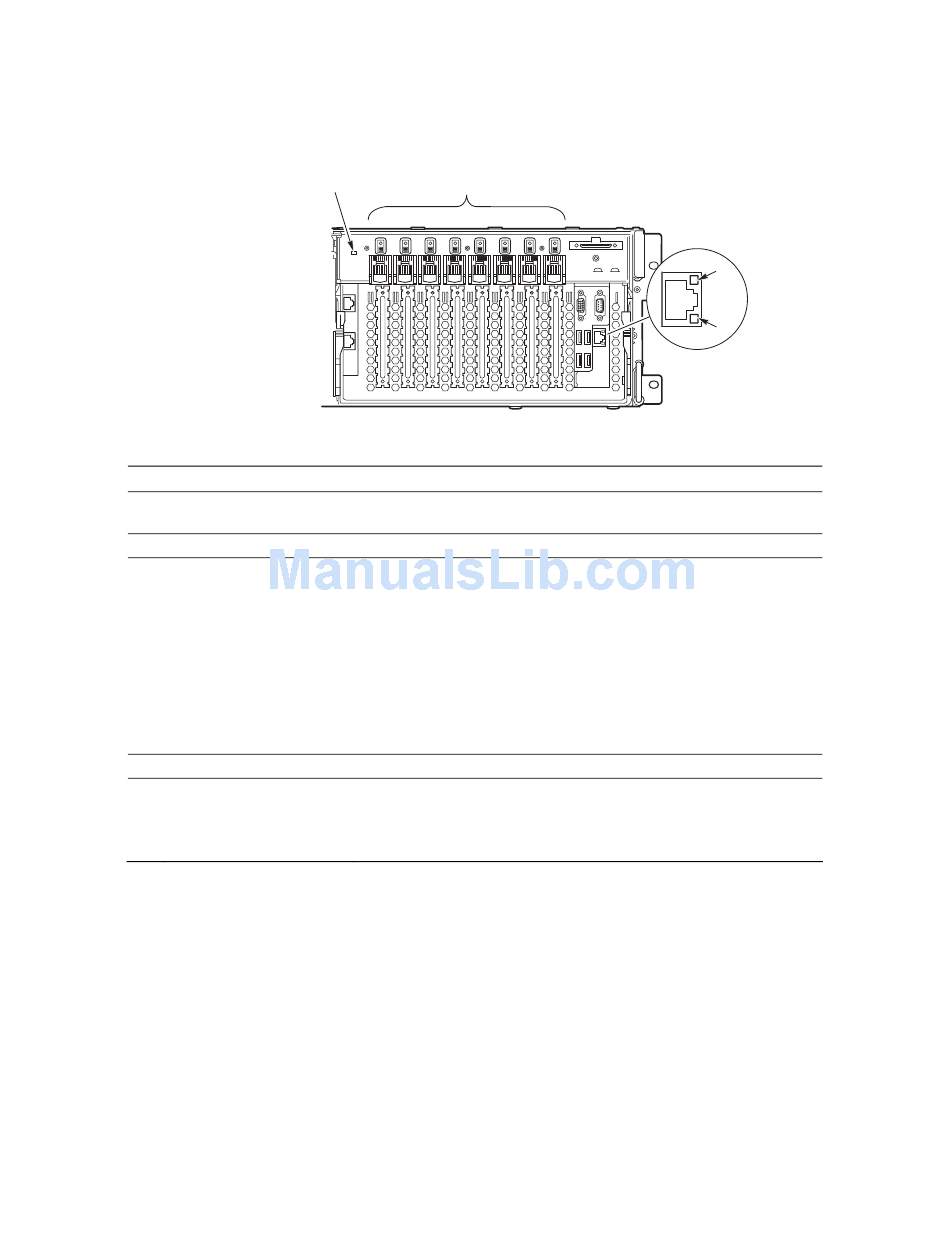

Figure 9. Back Panel View Showing Indicator and Switch Locations
28
A B
Identifies the system. The system ID LED is activated either by the
System ID switch on the front panel or through server management.
Notifies PCI hot-plug system software (ACPI PHP ASL) that a PCI
hot-plug operation is about to take place.
WARNING: Verify in BIOS release notes that this feature is
supported before using the Attention button.
Disables power to the PCI slot if a PCI add-in card is present.
On – PCI slot is powered.
Off – PCI slot is powered down.
On – PCI slot or card fault condition.
Shows activity and status.
Shows activity and status.
Intel® SR870BN4 Server System Product Guide
C
D
OM12889
