Installing the Midplane Board

1. Position the midplane board and place in the chassis as shown (A in Figure 127).
2. Grasp the pull-pin knobs securing the midplane board and push them toward the back of the
chassis (B in Figure 127) to attach the midplane board.
B
A
OM12961

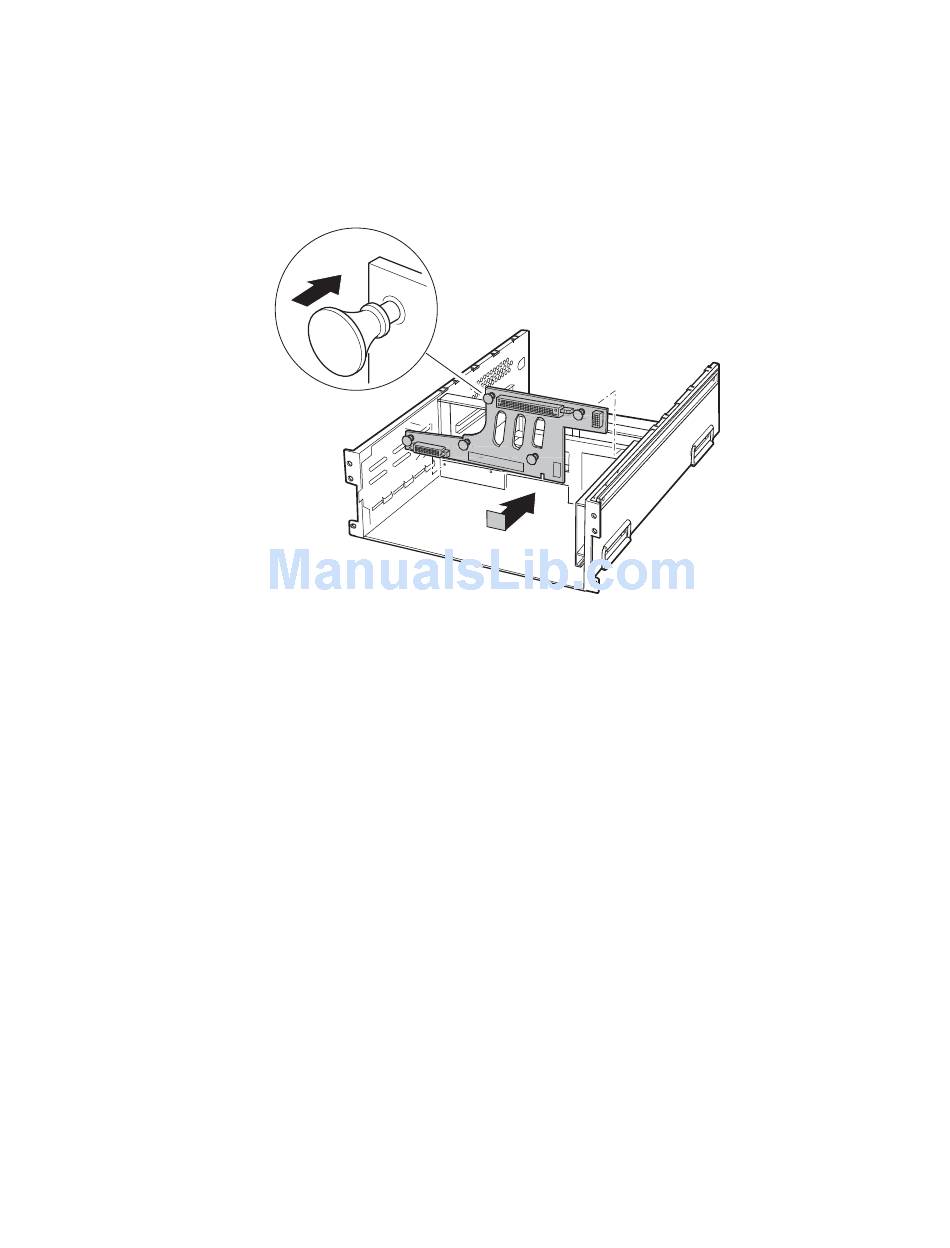

Figure 127. Installing the Midplane Board
3. Install the power supply bay.
4. Install the front panel board.
5. Install the front top cover.
6. Install the I/O bay.
7. Install the peripheral bay.
8. Install the processor/memory module.
252 Intel® SR870BN4 Server System Product Guide
