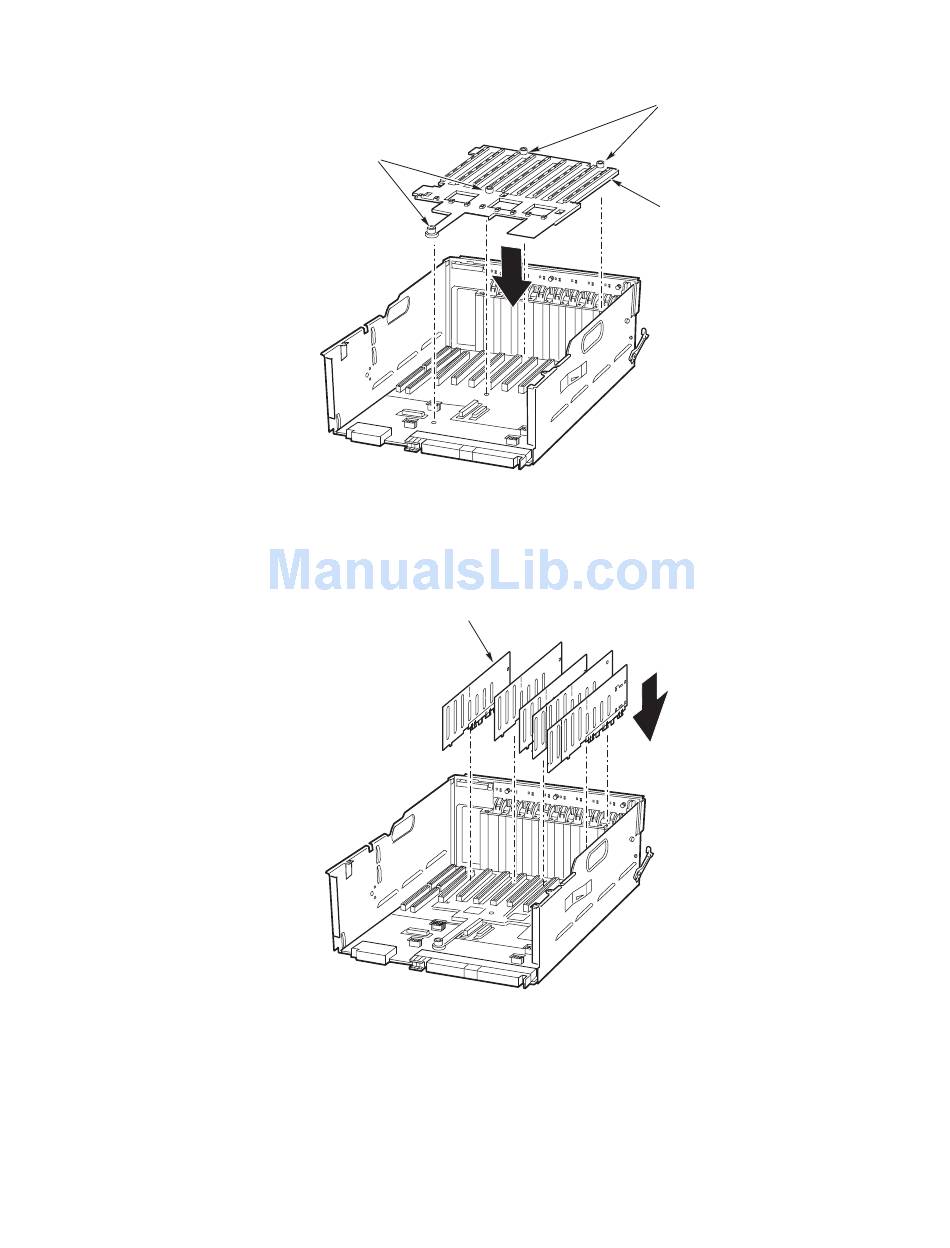

Figure 77. Replacing the Plastic Shield
6. Attach the HPIB cable to the I/O board.
7. Insert all PCI slot plastic dividers into the plastic shield as shown (A in Figure 78).
A
OM12947
Figure 78. Replacing the Plastic Dividers
8. Install the four DC-to-DC converters in the baseboard as described in "Installing I/O Board
DC-to-DC Converters" on page 194.
9. Connect the back panel SCSI connector cable (if installed) to the I/O board as shown Figure 73.
