Chassis Back

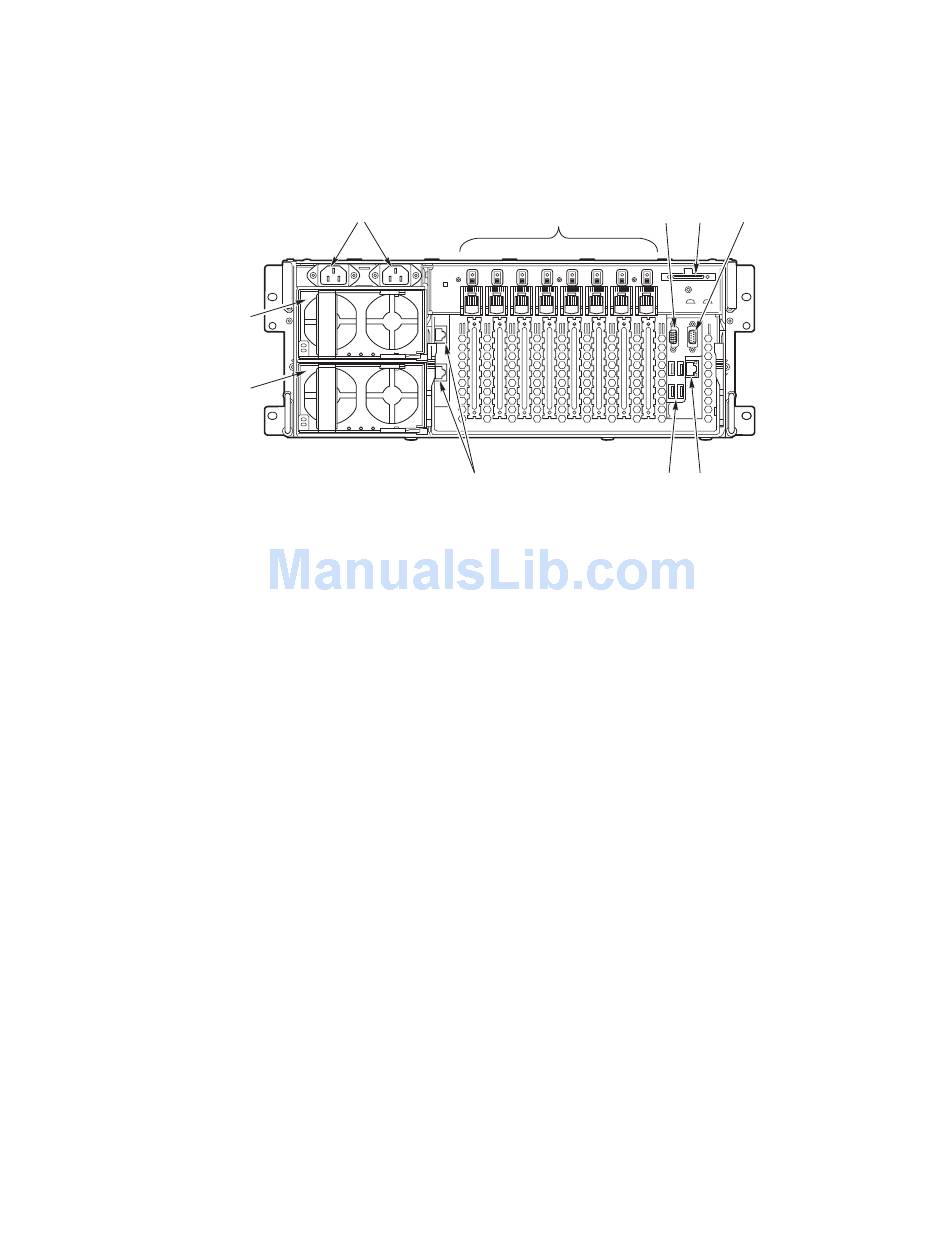

Figure 8 shows the features found on the chassis back panel including the I/O bay, the power
supply modules, and user-accessible connectors.
J
I
Notes:
Intel® SR870BN4 Server System Product Guide
A
A AC input power connectors
B PCI Slots (All slots support hot-plug PCI add-in cards)
Slots 1 through 4
Slot 5
Slots 6 through 8
C Video port, standard VGA compatible, 15-pin connector
D External SCSI connector (optional)
E Serial port, 9-pin RS-232 connector
F Ethernet port, RJ45 connector
G Four USB ports, 4-pin connectors
H ICMB connectors in/out (optional)
ICMB port 1, SEMCONN 6-pin connector
ICMB port 2, SEMCONN 6-pin connector
I Power supply 2
J Power supply 1
1. PCI slots support 3.3 V signal adapter cards only.
2. External SCSI bus supports both LVDS and SE signals via the external SCSI connector.
3. Emergency Management Port (EMP) access is provided via shared serial port.
Figure 8. Chassis Back Features
B
H
100-MHz, 64-bit PCI-X slot, half length
100-MHz, 64-bit PCI-X slot, full length
133-MHz, 64-bit PCI-X slot, full length
2
3
C D E
G F
OM12888
