Removing the DVD/CD-ROM Drive from the Drive Carrier

1. Position the carrier assembly label-side up as shown in the upper left panel of Figure 115.
2. Using a small screwdriver, pry the EMI shield (A in Figure 115) apart far enough to free the
side tabs (B in Figure 115) and lift the drive carrier (C in Figure 115) free of the EMI shield.
Use care not to bend the EMI shield.
3. Spread the plastic tab (D in Figure 115) to free the end of the adapter board (E in Figure 115).
Pull the adapter board until it is free of the carrier and remove.
4. Carefully spread the sides of the drive carrier assembly (F in Figure 115) to free the tabs (G in
Figure 115) so that the drive (H in Figure 115) can be removed.
5. Place the drive in an antistatic protective wrapper if the same drive will not be reinstalled.
A
B
E
D

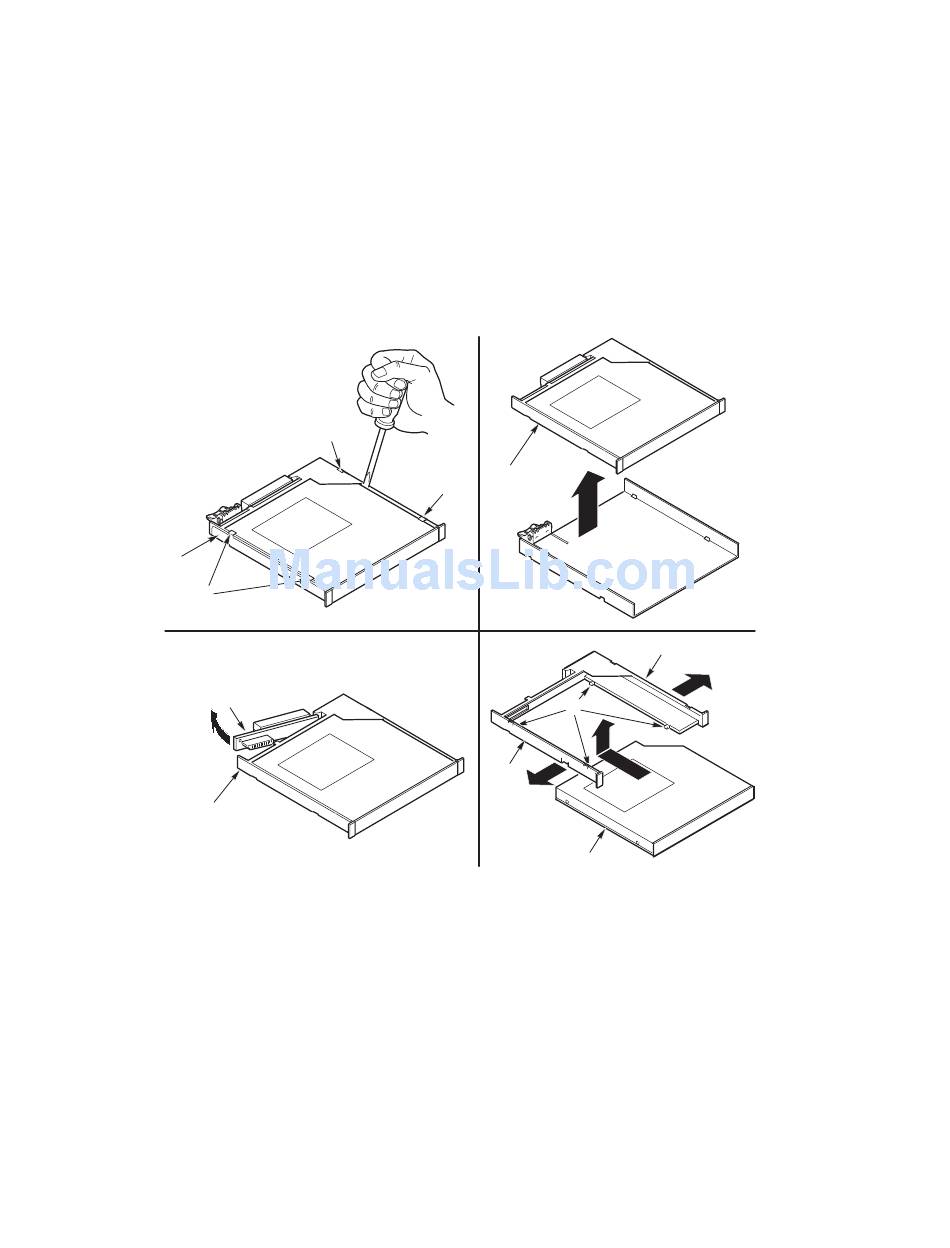

Figure 115. Removing the DVD/CD-ROM Drive from the Carrier
240
B
C
B
F
F
G
H
Intel® SR870BN4 Server System Product Guide
OM12957
