one is not available, provide some ESD protection by wearing an antistatic
wrist strap attached to chassis groundany unpainted metal surfaceon
your system when handling parts.
ESD and handling boards: Always handle boards carefully. They can
be extremely sensitive to ESD. Hold boards only by their edges. After
removing a board from its protective wrapper or from the system, place it on
a grounded surface free of static electricity. Do not slide boards over any
surface.
Cooling and airflow: For proper cooling and airflow, always install the
chassis covers before turning on the system. Operating the system without
the covers in place can damage system parts.

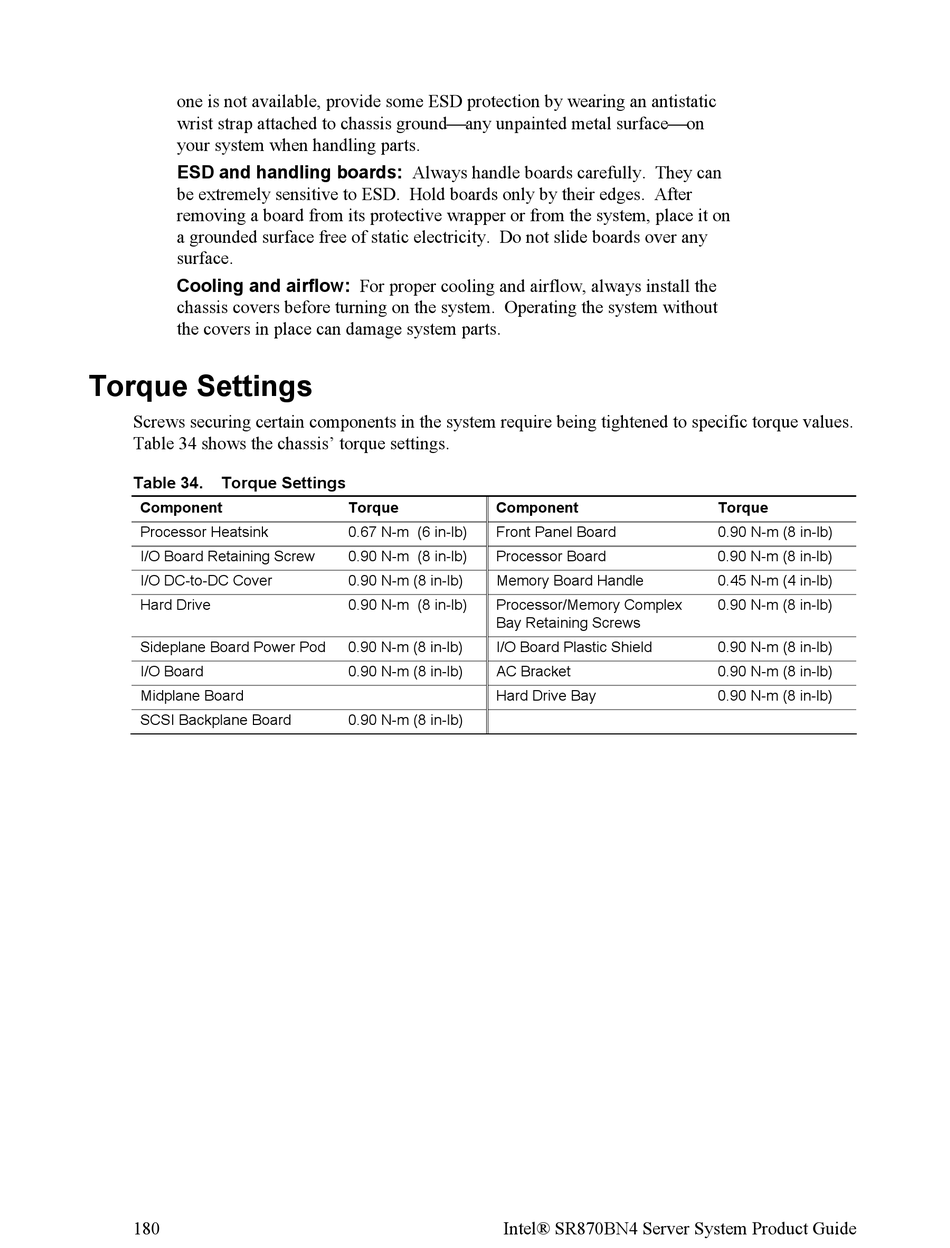

Torque Settings

Screws securing certain components in the system require being tightened to specific torque values.
Table 34 shows the chassis' torque settings.
Table 34. Torque Settings
Component
Processor Heatsink
I/O Board Retaining Screw
I/O DC-to-DC Cover
Hard Drive
Sideplane Board Power Pod
I/O Board
Midplane Board
SCSI Backplane Board
180
Torque Component
0.67 N-m (6 in-lb) Front Panel Board
0.90 N-m (8 in-lb) Processor Board
0.90 N-m (8 in-lb) Memory Board Handle
0.90 N-m (8 in-lb) Processor/Memory Complex
Bay Retaining Screws
0.90 N-m (8 in-lb) I/O Board Plastic Shield
0.90 N-m (8 in-lb) AC Bracket
Hard Drive Bay
0.90 N-m (8 in-lb)
Intel® SR870BN4 Server System Product Guide
Torque
0.90 N-m (8 in-lb)
0.90 N-m (8 in-lb)
0.45 N-m (4 in-lb)
0.90 N-m (8 in-lb)
0.90 N-m (8 in-lb)
0.90 N-m (8 in-lb)
0.90 N-m (8 in-lb)
