External Chassis Features

System controls and indicators are located in several places on the chassis as follows:

Chassis front:

Front panel: Front panel switches and LEDs
Peripheral bay: Hard disk drive LEDs
Processor/memory module: Subsystem serviceability LEDs
Chassis back:
Power supply modules (See Power Subsystem on page 31 for details)
Hot-plug Indicator Board (HPIB)
Chassis top:
I/O subsystem
Fan bay (See Cooling Subsystem on page 32 for details)
Each of these areas is discussed in this section.
Chassis Front
Figure 2 shows the front view of the chassis with the snap-on bezel in place. The bezel provides
access to the front panel board and the peripheral bay.
20
A
A
Bezel
B
Front Panel
C
Peripheral Bay

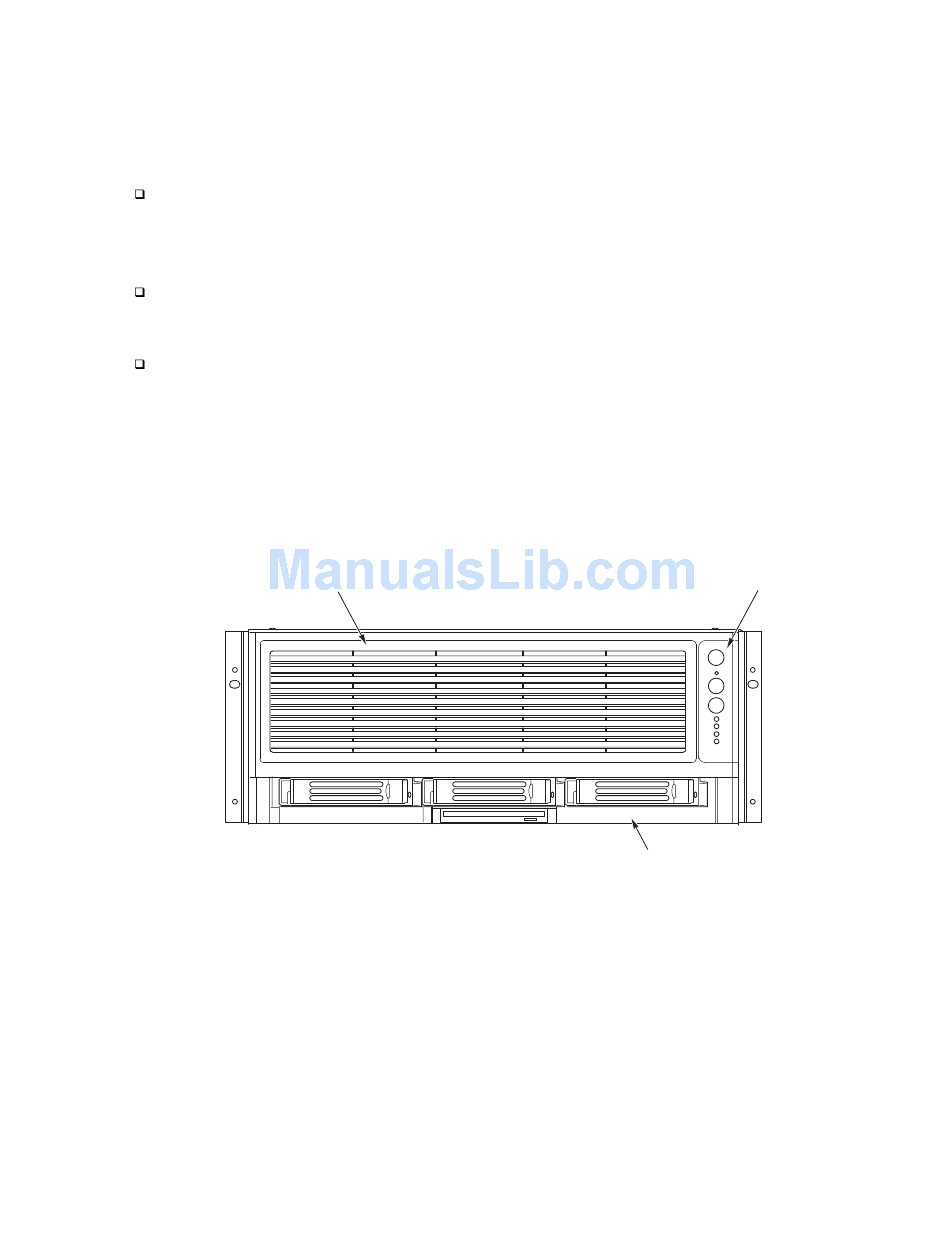

Figure 2. Chassis Front View
Intel® SR870BN4 Server System Product Guide
B
C
OM12885
