7 Servicing the Processor/Memory Module

WARNINGS
Make sure that the rack is anchored securely so it will not tilt forward
when the server chassis is extended. A crush hazard exists should the
rack tilt forward that could cause serious injury.
Fully loaded, the processor/memory module weighs 16.33 kg (36 lbs).
Minimally configured, the module weighs 10.89 kg (24 lbs). To avoid
injury, exercise caution when lifting the module out of the system.

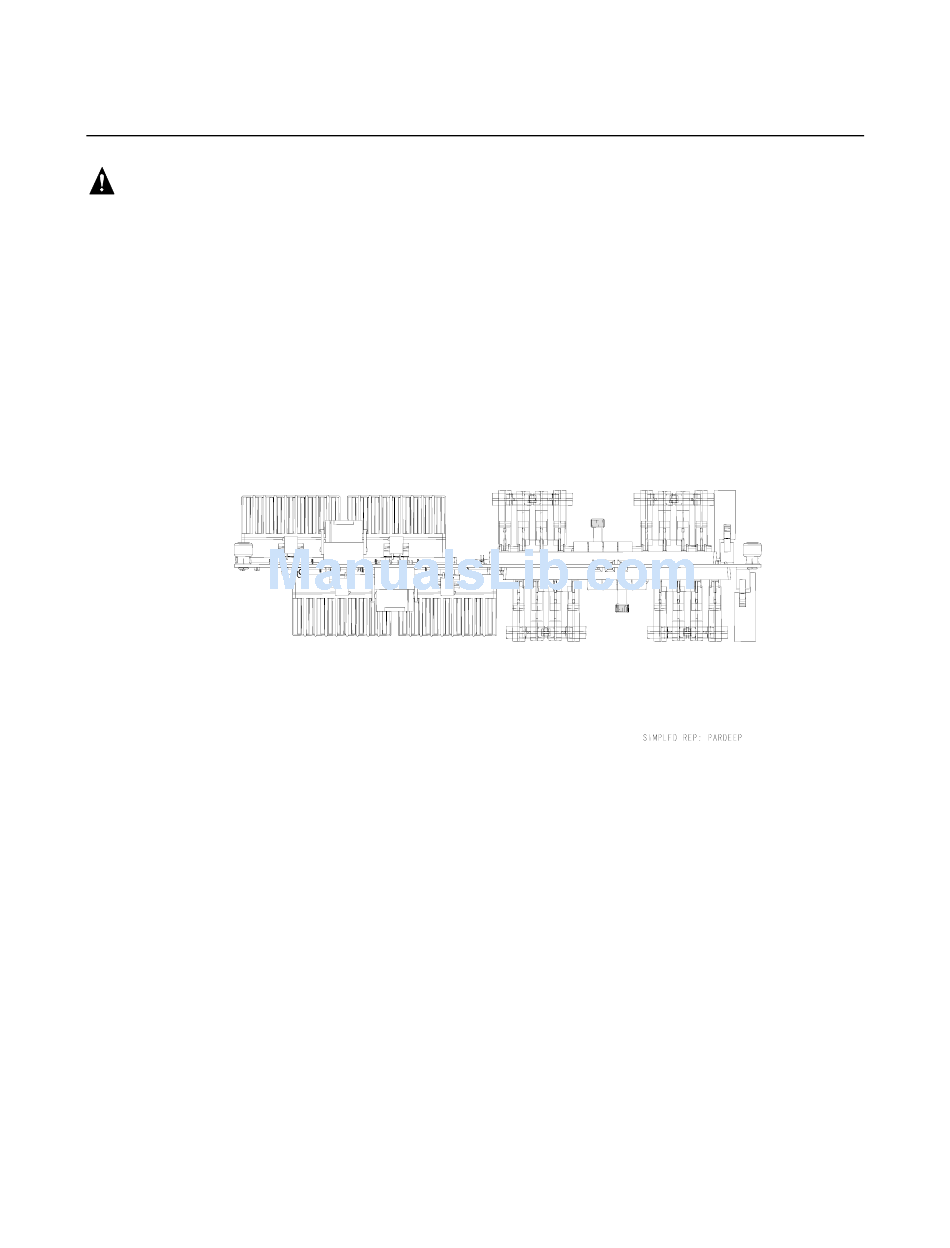

The module has two sides (designated primary and secondary) each of which contains a memory
board, processors, power pods, and DC-to-DC converter(s). The relationship of the processor
board (shown edge-on) to the power pods, processors, DC-to-DC converters, and memory boards is
shown in Figure 84.
Proc 1
Figure 84. Processor Board with Processors and Memory Boards Installed
206
Proc 3
Proc 2 Proc 4
Memory Board - One
Memory Board - Two
